Main performance(C6132D-1000)
1. Swing over bed diameter 350mm
2. machining length up to 1000mm.
3. Strong performance for the casting base
4. Distance betweenthe hard rails up 320mm
5. Machining precision is IT8

    oops...!

    no product data.

    Go to homepage

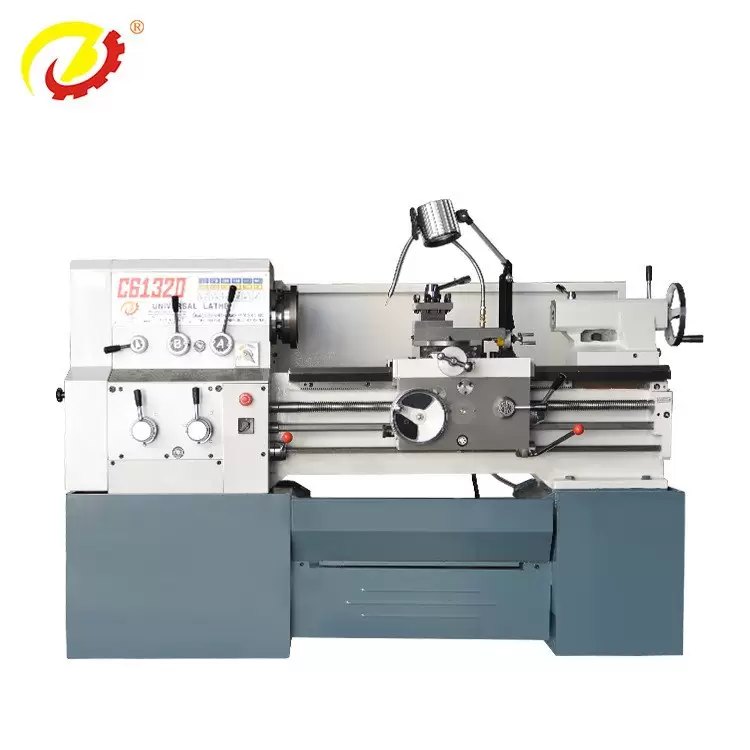

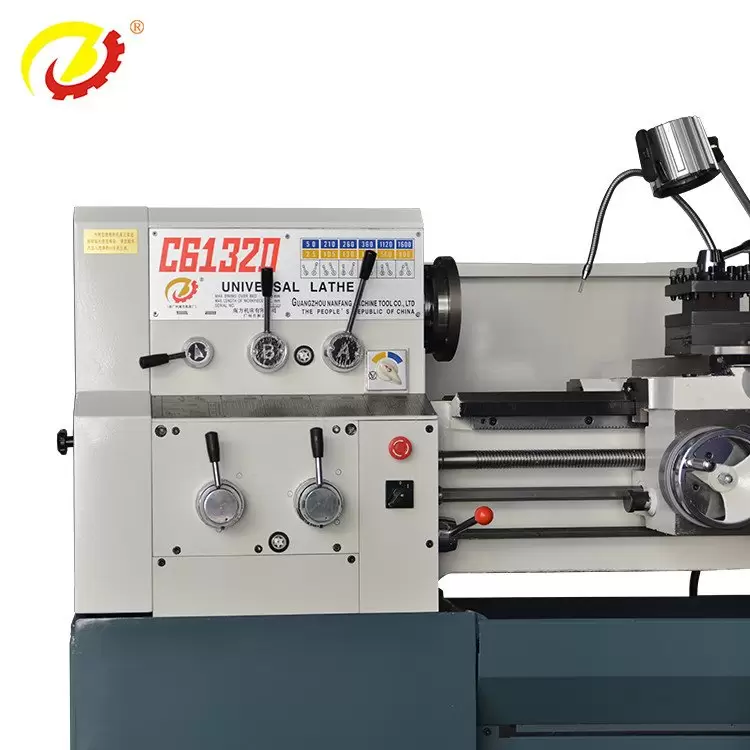

    350mm swing over bed manual lathe –1000mm machining length

    Main performance
    1. Swing over bed diameter 350mm
    2. machining length up to 1000mm.
    3. Strong performance for the casting base
    4. Distance betweenthe hard rails up 320mm
    5. Machining precision is IT8
    6. Machining work piece roundness is not exceeding 0.01mm,
    7. Machining work piece plainness is not exceeding 013mm/Ø200mm
    8. Surfaceness(Ra) is not exceeding 2.8um
    9. Machining diameter consistencyis not exceeding 0.018mm/300mm
    10. The machine has high precision, low noise, good rigidity, new style,etc

    Main Specification

    Model C6132D-1000
    Swinging over bed 350mm
    Max length of machining work piece 1000mm
    Width of guide on bed 320mm
    Max machining diameter on tool carrier 190mm
    Max. Z-axis travel of tools supporter 880mm
    Max. X-axis travel of tools supporter 220mm
    Bore through material diameter Ø45mm
    Max. swinging diameter on saddle ////
    Max. machining Length on saddle ////
    Spindle Spindle Center height 175mm
    Spindle connection C6
    Spindle bore diameter Ø46mm
    Taper of spindle bore MT6
    Range of spindle speed 25-1600r/min 12 grades
    Tailstock Taper of top sleeve MT4
    Tail stock sleeve max travel 130mm
    Tail stock horizontal max travel ±10mm
    Screw threads Threads metric pitches 0.45-20mm/r 30 models
    Threads inch pitches 80-1-3/4n/1” 35 models
    Threads modulo pitches 0.25-10mm 25 models
    Threads diametric pitches 160-3-1/2 DP 30 models
    Spindle motor model YD132M-8/4-B5 3/4.5 kw
    Main drive belt model & spec 4-A-1900mm, 4-A-2000mm
    Motor Main motor 3 / 4.5 KW
    Main motor speed 50Hz 1500 r/min
    Cooler pump motor 90W
    Overall dimension(L x W x H) 1000 mm 2200mmx950mmx1200mm
    Net weight 1450 kg

    Precision standard
    Unit:mm

    Inspection item China standard Factory standard
    Machining precision IT8 IT8
    Precision of machining work piece roundness 0.007mm 0.006mm
    Precision of machining work piece cylindricity 0.015mm/Ф300mm 0.013mm/Ф200mm
    Machining work piece surfaceness Ra3.2μm Ra2.8μm
    Machining work piece planeness 0.02mm / 300mm 0.018mm / 300mm

    Configuration standard accessories

    Name Specification Brand Remark
    Main motor 3 / 4.5 KW Three-phase asynchronous motor Made in china
    Spindle bearing Precision grade5 Made in china
    X -axis ball screw Made in china
    Z- axis ball screw
    Manual chuck 8 inches(3 Jaws chuck 200mm) Made in china
    Electrical components Made in china

    Standard accessories:

    No. Name Specification QTY
    1 A set of lighting 1 set
    2 Cooling system 32A-10001 1 set
    3 Adjustable mount 3# 6 set
    4 3 Jaws chuck KZ200 1 set
    5 3 Jaws chuck transit plate 32D-09701 1 set
    6 Tailstock D114 1 set
    7 Tailstock quill P326*4 1 set
    8 Double head spanner 12×14 S91-1 1 set
    9 Double head spanner 17×19 S91-1 1 set
    10 Double head spanner 12×24 S91-1 1 set
    11 Single head spanner 30 S91-2 1 set
    12 Square box spanner 12 S92-3 1 set
    13 Slotted nut single-end spanner 38-42 S93-1 1 set
    14 Slotted nut single-end spanner 45-52 S93-1 1 set
    15 Slotted nut single-end spanner 100-110 S93-1 1 set
    16 Slotted nut single-end spanner 115-130 S93-1 1 set
    17 inner hexagon spanner 5 S91-7 1 set
    18 inner hexagon spanner 6 S91-7 1 set
    19 inner hexagon spanner 8 S91-7 1 set
    20 inner hexagon spanner 10 S91-7 1 set
    21 Screwdriver 150 1 set
    22 Oil gun YQ100 1 set
    23 Foot bolt M16×400;GB799-76 8 set
    24 Nut M16;GB52-76 8 set
    25 Washer 16;GB97-76 8 set
    26 Triangle belt 32A a model 1900 4 set
    27 Brake block 32A-01041 2 set
    29 Brake wire Ø2.8*1250 1 set

    Technical date:

    1. Machine user manual 1 set
    2. Machine certification 1 set
    3. Packing list 1 set
