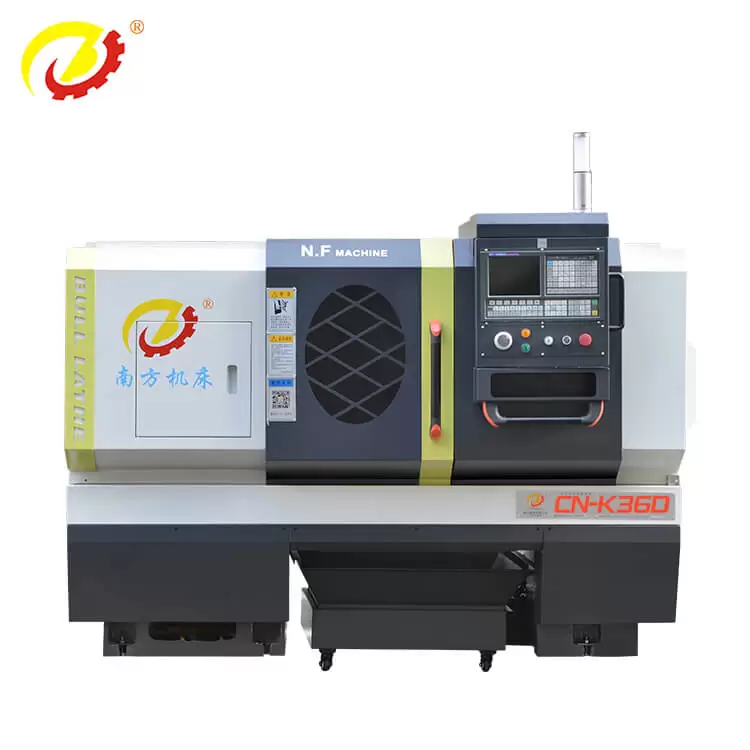

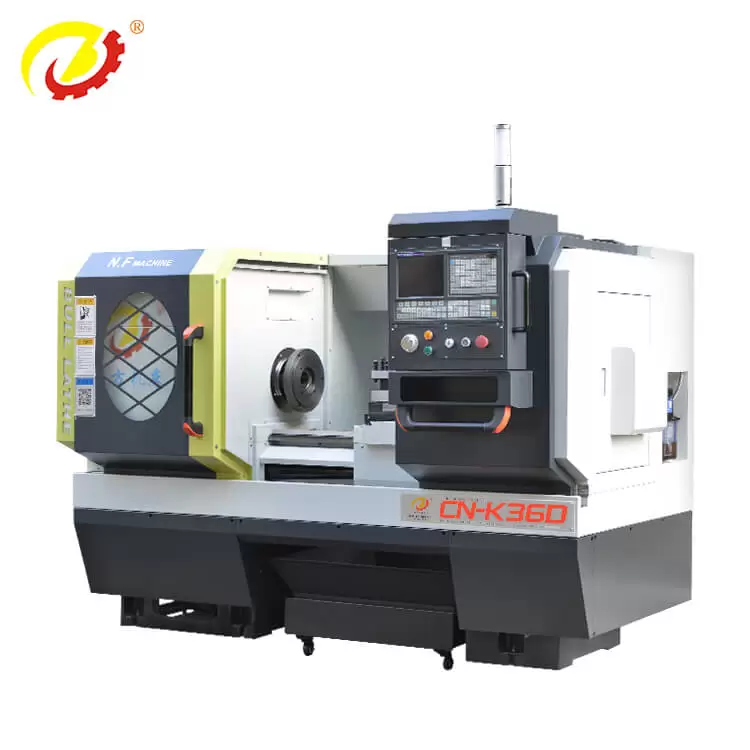

360mm swing over bed CNC lathe CN-K36D

Main performance
1. Swing over bed diameter360mm
2. Max. machining length 1000mm
3. One piece casting base and bed.
4. Longer 320mm distance between two guild ways on Z axis.
5. Longer 190mm distance between two guild ways on X axis.
6. Three levels speed range and automatic transfer
7. Independent chip removal system
8. All accessories are from China famous brand, and so they keep the good quality for the machine

    oops...!

    no product data.

    Go to homepage

    360mm swing over bed CNC lathe –1000mm machining length

    Main performance
    1. Swing over bed diameter360mm
    2. Max. machining length 1000mm
    3. One piece casting base and bed.
    4. Longer 320mm distance between two guild ways on Z axis.
    5. Longer 190mm distance between two guild ways on X axis.
    6. Three levels speed range and automatic transfer
    7. Independent chip removal system
    8. All accessories are from China famous brand, and so they keep the good quality for the machine

    360mm swing over bed CNC lathe –1000mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Model

    Specification

    CN-K36D
    Main spec Swing over bed 360mm
    Max length of machining work piece 1000mm
    Capacity Max machining diameter on bed 360mm
    Max machining diameter on slider 180mm
    Max length of machine(distance between tailstock to chuck jaws) 890mm
    Bore through material diameter Ø50mm
    Spindle center height 180mm
    Center distance between tailstock to spindle Distance between spindle to tailstock 1000mm
    Spindle Spindle bore diameter Ø52mm
    Taper of spindle bore MORSE #6
    Range of spindle speed Automatic transfer three gear automatic shift 60-2000r/min

    H:275-2000r/min,M:112-820r/min

    L: 60-440r/min

    turret Max. travel of turret on Z axis 1000mm
    Max. travel of turret on X axis 230mm
    Rapid move speed on Z axis 8000mm/min
    Rapid move speed on X axis 4000mm/min
    Turret positions vertical type 4 positions turret
    Turret size 20×20 mm
    Distance between spindle center to the support surface 20mm
    Tailstock Taper of spindle sleeve MT5
    max travel of tailstock sleeve 130mm
    max travel of Tailstock on X-axis ±10mm
    Motor Main motor power 5.5kw/7.5kw
    Torque of Z axis motor 6 N.m
    Torque of X axis motor 4 N.m
    Cooling pump AYB-20 0.115kw
    Tool holder model LD4
    Outline dimensions 1000mm model 2450mm x 1500mm x 1800 mm
    Net weight 1000mm model 1800 kgs

    Machine inspection precision

    Inspection item China Standard Factory standard
    Machining precision IT7 IT7
    Machining work piece roundness 0.005mm/φ50mm 0.004mm/φ50mm
    Machining work piece cylindricity 0.03mm / 300mm 0.02mm / 200mm
    Machining work piece planeness 0.025mm/φ300mm 0.015mm/φ200mm
    Machining work piece surfaceness Ra2.5μm Ra2.0μm
    Position precision X-axis 0.03mm X-axis 0.024mm
    Z-axis 0.04mm Z-axis 0.032mm
    Re-position X-axis 0.012mm X-axis 0.01mm
    Z-axis 0.016mm Z-axis 0.012mm

    360mm swing over bed CNC lathe –1000mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Machine configuration

    Accessories Name Specifications Model Manufacturer Remark
    CNC GSK980 GSK
    The main motor 5.5 /7.5 KW spindle servo motor China Keteng
    X-axis motor 110ST-M040 GSK
    Z-axis motor 130ST-M060 GSK
    Spindle bearing P4 China famous HRB bearing
    P5

    P5

    Spindle 52 mm Spindle Southern Machine
    Turret Vertical 4 positions turret HTC
    X-axis ball screw C3 Bot / Han River
    Z-axis ball screw C3 Bot / Han River
    Screw bearings for X-axis lead screw P4 HRB
    Screw bearings for Z-axis lead screw P4 HRB
    Three-color light Three color flashing ONN
    The key electrical components Relay/Contactor Japan’s Izumi/Switzerland ABB/Schneider
    Tailstock China South CNC Machine Tool South brand

    The standard machine tool accessories:

    No. accessory name Model Specifications Quantity Remark
    1 Adjust the horn and bolts CN-K36D 1 Our
    2 Pan tools China brand 1 Three gulls
    3 Screw tools China brand 1 China brand
    4 Chuck Manual jaw chuck diameter Φ200 1 China brand

    Technical data:

    No. Technical data Name Copies Remark
    1 Manual machine tool (machine)—mechanic and electric 1
    2 Certificate 1
    3 Precision inspection 1
    4 Packing List 1
    5 Manual user operation for controller 1
    6 Controller system operation manual 1
    7 Electric diagram 1
