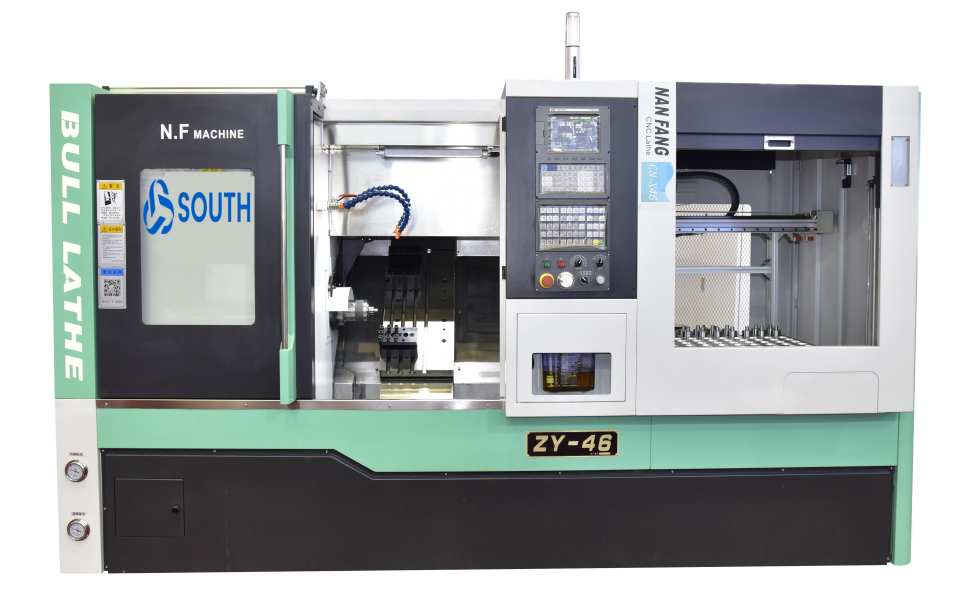

Slanting bed 45 degree ZY-46

Main performance(ZY-46)
1. Swing over lathe diameter 500mm
2. Slanting bed is 45 degree
3. One piece casting base and slanting bed
4. Automatic bar feeder for work piece and workpiece conveyor.
5. Roundness is not exceeding 0.003mm,
6. The x-axis re-position accuracy is ±025mm
7. The z-axis re-position accuracy is ±005mm
8. speed of spindle 6000r/min
9. The machine adopts the integral structure of body
10. The machine has good performance high precision, low noise, new style, etc

    oops...!

    no product data.

    Go to homepage

    500mm swing over bed cnc lathe 350mm machining length



    Main performance(ZY-46)
    1. Swing over lathe diameter 500mm
    2. Slanting bed is 45 degree
    3. One piece casting base and slanting bed
    4. Automatic bar feeder for work piece and workpiece conveyor.
    5. Roundness is not exceeding 0.003mm,
    6. The x-axis re-position accuracy is ±025mm
    7. The z-axis re-position accuracy is ±005mm
    8. speed of spindle 6000r/min
    9. The machine adopts the integral structure of body
    10. The machine has good performance high precision, low noise, new style, etc

    500mm swing over bed cnc lathe machining center-350mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

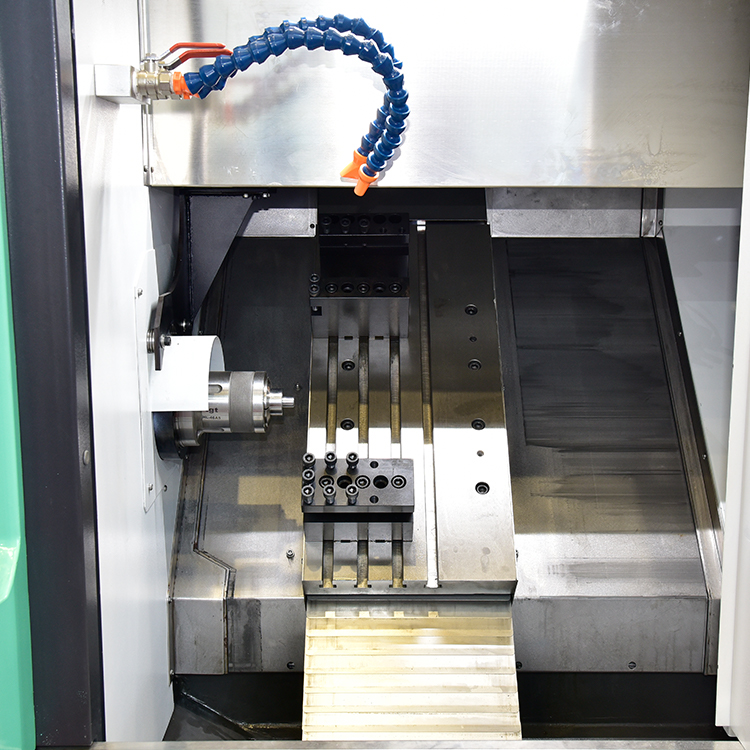

    Main Specification

    Model of latheZY-46
    Main specificationsMax. swing diam. over lathe500mm
    Lathe bed slope45 degree
    Processing rangeMax. drilling diam.(shaft and sleeve)158mm
    Max. length of processing(self-produce chuck)350mm
    Max. length of processing(hydraulic chuck)300mm
    Max. diameter of the bardiameter 45mm
    Processing accuracyRoundness≦0.003
    Taper≦0.005/100
    Coaxiality≦0.004/100
    X-axis position accuracy±0.005mm
    Z-axis position accuracy±0.01mm
    X-axis repeat position accuracy±0.025mm
    Z-axis repeat position accuracy±0.005mm
    The spindle performanceSpindle boreDiameter 56mm
    Type of the spindle headA2-5
    Max. speed of spindle6000r/mm
    The motor performanceMain motor power(standard configuration)5.5kw
    The longitudinal (Z direction)servo motor torque7.2N.m
    The transverse(X direction)servo motor torque7.2N.m
    Hydraulic clampingStandard collectCollect specificationsA2-5 adapter
    Feed performanceMax. X direction travel970mm diameter
    Max. Z direction travel395mm
    Max. feeding speed of cutting8000mm/min
    X/Z direction rapid movement speed24/24m/min

    Type of the turretGang type
    Turret performanceSize of the turret20 x 20 mm

    Max. size of the turretDiameter 25mm

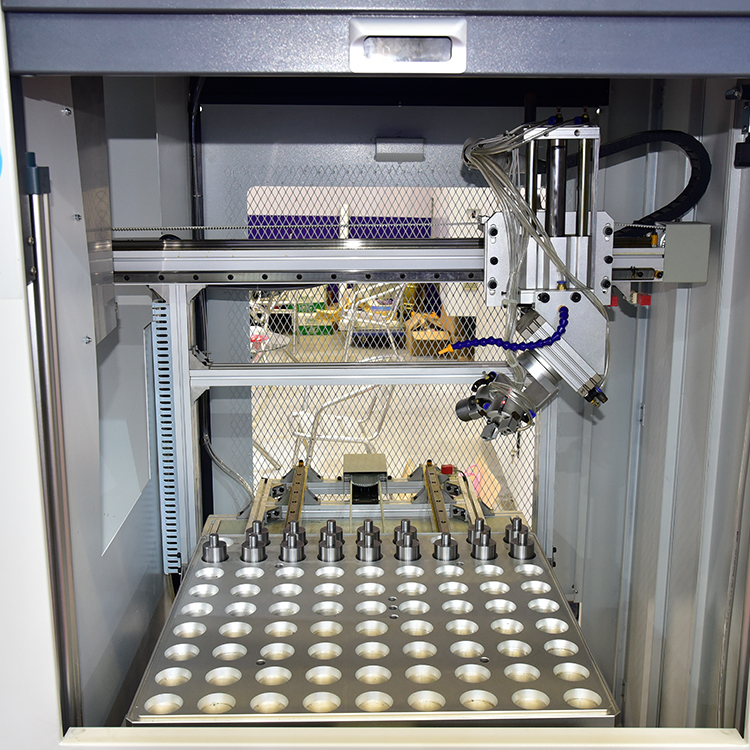

    Robot machine performanceTravel of X axis2000mm
    Travel of Y axis800mm
    Travel of Z axis150mm
    Max. weight for Single claw1kg
    Number of claw2
    Tray performanceTray size800 x 800 mm
    Workpiece size of the tray can supportMax outside diameter 50mm, height 100mm
    Workpiece number of the tray can support80-100
    Maximum weight of loading100kg
    Workpiece positioning modeFormation of the claw positions
    Machine dimension(L x W x H)3300mm x 1700mm x 2000mm
    Weight2800 kg




    Slanting bed  45 degree ZY-46 5

    Precision standard

    Unit:mm

    Inspection itemChina standardFactory standard
    Machining precisionIT8IT8
    Precision of machining work piece roundness0.007mm0.006mm
    Precision of machining work piece cylindricity0.015mm/Ф300mm0.013mm/Ф200mm
    Machining work piece surfacenessRa3.2μmRa2.8μm
    Machining work piece planeness0.02mm / 300mm0.018mm / 300mm

    Slanting bed  45 degree ZY-46 6

    Configuration standard accessories

    NameSpecificationBrandRemark
    Main motor5.5 KW servo motorMade in china
    Spindle bearingP4Made in china
    X -axis ball screwC3Made in china
    Z- axis ball screwC3
    chuck6” optionalMade in china
    Electrical componentsAllMade in china
