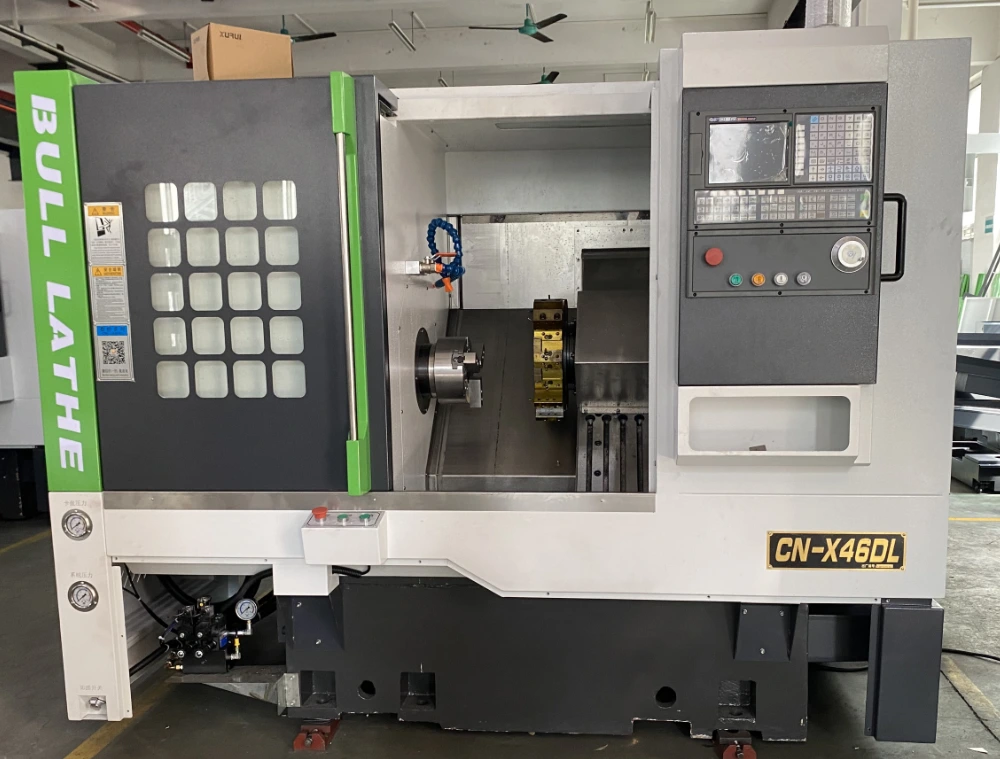

High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL 1
High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL 2
High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL 3
High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL 1
High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL 2
High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL 3

High efficiency Light duty CNC lathe CN-X46DL,CN-X52DL

Adopt the blade tower tailstock structure to process the shaft parts with a wide range of dimensions (the maximum processing range is 360X in diameter and 650mm in length), greatly improve the processing flexibility;

Tailstock adopts the small spindle structure of integral seat, sleeve and bearing to ensure the accuracy and stability;

The base of machine tool is optimized by finite element analysis and has good rigidity;

The X/Z axis adopts pre-tensile structure, which reduces the influence of thermal deformation on the precision of X/Z axis and improves the rigidity of X/Z axis.

    oops...!

    no product data.

    Go to homepage

    Introduction

    Adopt the blade tower tailstock structure to process the shaft parts with a wide range of dimensions (the maximum processing range is 360X in diameter and 650mm in length), greatly improve the processing flexibility;
    Tailstock adopts the small spindle structure of integral seat, sleeve and bearing to ensure the accuracy and stability;
    The base of machine tool is optimized by finite element analysis and has good rigidity;

    The X/Z axis adopts pre-tensile structure, which reduces the influence of thermal deformation on the precision of X/Z axis and improves the rigidity of X/Z axis;

    This machine is especially suitable for processing shaft, pipe and disc parts, with the advantages of fast speed, high precision, good finish, and stability of the size consistency, etc.

    characteristic

    Max. Rotary diameter of bed body:

    Ø500mm

    Max. Machining diameter of bed body(disk type):

    Ø450mm

    Max. Work-piece length:

    320mm

    Spindle speed range:

    40-4000r/min

    Main Specification

    Model of lathe CN-X46DL CN-X52DL
    Main specifications Max. swing diam. over bed Ø500mm





    Processing range






    Max. Turning length Ø320mm

    Spindle nose type

    A2-5 A2-6

    Diameter of main shaft through hole

    MT6

    Ø68,1:20

    Max. Machining diameter of bed body(disk type)

    Ø450mm

    Max. Machining diameter on slide plate

    Ø420mm

     Single spindle the spindle box

    Spindle speed range

    40-4000r/min

    Main motor the output power

    15minutes continuous

    11/7.5KW

    11/15KW

    Feed shaft performance

    Hydraulic chuck

    6 inch 8 inch
    X axle rapid movement speed 20m/min
    Z axle rapid movement speed 20m/min
    Travel of X axle 485mm
    Travel of Z axle 520mm









    Turret performance








    Type of the turret

    Horizontal power 12 station

    Tool rest transposition time:each station/30 including braking time

    0.1 sec
    The turret could be swapped or not   Yes
    Size of the round knife

    25 x 25mm

    Boring bar diameter

    Ø32

    Power tool holder

    ER25(Ø1-16)

    Machine dimension(L x  W x H)

    2447mm x 1702mm x 1751mm 2447mm x 1900mm x 2100mm
    Weight 2800kg 2900kg
