Automatic Light duty CNC Lathe with Gearbox CKS5080 1

Automatic Light duty CNC Lathe with Gearbox CKS5080 2

Automatic Light duty CNC Lathe with Gearbox CKS5080 3

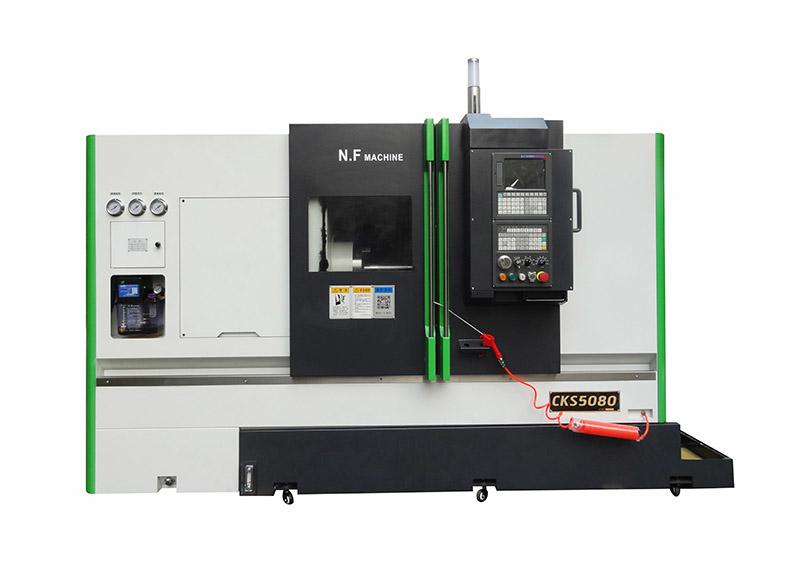

Automatic Light duty CNC Lathe with Gearbox CKS5080

The main transmission adopts the "gear-type automatic transmission + A11 independent spindle"structure, which can adapt to hard cutting, strong cutting, heavy cutting and other processing methods

Spindle speed:

800mm

Max.swing diam.over lathe:

105mm

Max. turning length:

800mm

Inquiry

Write a Review

Introduction

● Diameter of the bar 90mm(Optional 15-inch hollow chuck)

● The forms and codes of spindle end A2-11

● Using the turret tower tail seat structure, the machining shaft parts have a wide size range (the maximum processing range diameter 420X length 800mm), greatly improve the processing flexibility;

● The machine tool base is optimized by finite element analysis, with good rigidity; The X and Z axis adopt the pre-stretched structure, which reduces the influence of thermal deformation on the accuracy and improve the rigidity

CKS5080-2

CKS75-3 (2)

characteristic

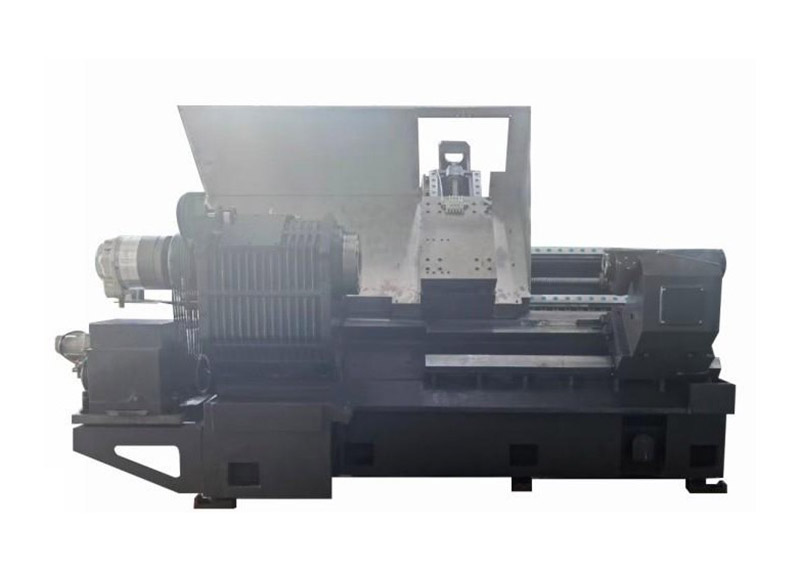

Automatic Light duty CNC Lathe with Gearbox CKS5080 6

This model is especially suitable for processing materials with high hardness, large margin, volume weight and other disk, shaft parts; with high cutting efficiency, precision size consistency and other advantages

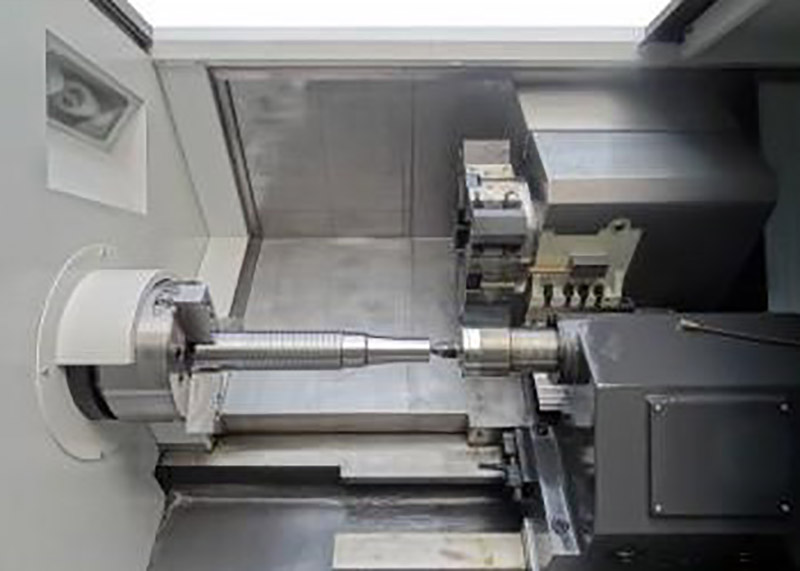

Automatic Light duty CNC Lathe with Gearbox CKS5080 7

This model X / Z axis uses 55 / 45 heavy duty roller rail, strong rigidity, would cut clean through iron as though it were mud

Main Specification

Model of lathe					CKS5080	CKS6580
Main specifications	Max. swing diam. over bed				665mm	750mm
Processing range	Max. Turning length				800mm
	Max. Turning diameter(disk type)				510mm	650mm
	Max. Turning diameter(shaft type)				420mm	520mm
	Diameter of the bar				90mm(Optional 15-inch hollow chuck)
	The largest bearing		plate		150mm
			Axle		300mm
Man-machine handling distance	Height of the center(From the bottom of machine)				1085mm
The spindle performance	The forms and codes of spindle end				A2-11
	Spindle head collect taper				Ø115,1:20
	Spindle bore				105mm
	Spindle box with single spindle			Spindle speed	34-2400r/min
				Spindle speed step number	Automatic third gear H: 215-2000r/min M:76-700r/min L: 34-320r/min
	Spindle speed conversion			Automatic input	1r/min direct instruction	Circumferential speed
				Manually enter	10r/min direct instruction	continuous control
The motor performance	Main motor output power			The 30-minute rating	15 KW
				Continuous rating	11KW
	X/Z motor torque				22/22 N.m
Hydraulic clamping	Standard chuck			Diameter of chuck	15 inch
Feed shaft performance	X axle rapid movement speed				16m/min
	Z axle rapid movement speed				20m/min
	X axle linear guide rail				45roller type
	Z axis linear guide				55roller type
	Travel of X axle				285mm
	Travel of Z axle				820mm
Tail stock performance	The tailstock sleeve diameter				100mm
	Travel of tail stock sleeve				120mm
	Spindle collect taper of the tailstock				Morse tone 5
	Max.thrust of tailstock sleeve				8000N
	The tailstock body trip				750mm
Turret performance	Type of the turret				Servo horizontal 12-position turret
	Turret transfer time:every workstation/180°				0.1 sec
	Size of the cutting tool	External circular cutting tool			25 x 25mm
		Boring blade diameter			Ø40mm
	The turret could be swapped or not				Yes
Machine dimension(L x W x H)					3736mm x 1915mm x 2003mm
Weight					5000kg	5200kg
