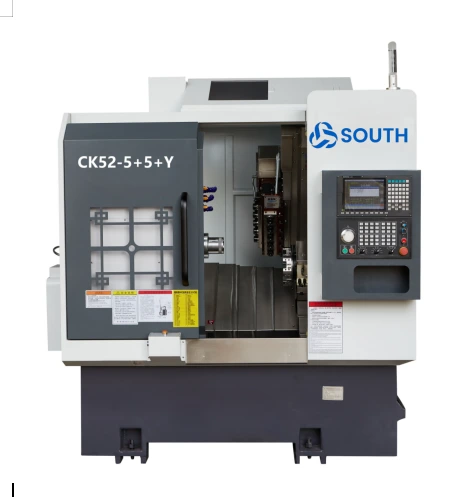

Turing and milling CNC machining center with Y axis CK52-5+5+Y

1. Swing over lathe diameter 500mm

2. Max. turning length 320mm

3. One piece casting base and slanting bed keep good stable machine performance

4. Spindle bore 66mm

5.Spindle model A2-6

6.Y-axis max. travel 310mm

    oops...!

    no product data.

    Go to homepage

    BIntroduction

    Taiwan SYNTEC22TB controller

    Adopting the monolithic conjoined L structure of lathe bed

    Can process stainless steel, titanium alloy, high temperature alloy materials.

     The machine has good performance high precision, low noise, new style, etc

    Turing and milling CNC machining center with Y axis CK52-5+5+Y 4





    characteristic
    Turing and milling CNC machining center with Y axis CK52-5+5+Y 5
    01
    Fully automatic feeder (servo feeding)
    Turing and milling CNC machining center with Y axis CK52-5+5+Y 6
    02
    Automatic material receiving hand + conveyor belt



    Main Specification

    Model of latheCK52-5+5+Y
     Machining capacityMax. swing diam. over latheØ500mm
    Max. turning length320mm
    Maximum bar material diameterØ51-55
    SpindleSpindle modelA2-6
    Spindle bore diameterØ66 mm
    Max. Spindle speedmax.4200r/min
    Setting spindle speed1-3500 rpm
    X/Z/Y axis feedingX-axis maximum travel

    800mm

    Z-axis maximum travel470mm
    Y-axis maximum travel310 mm
    X/Z/Y axis max. fast travel speed24(setting 18) /24(setting 18)/15(setting 8) m/min
    X/Z/Y axis C3 grade screw32/32/25mm
    X axis Roller P4-level linear rail,extended sliderball 35/ball35/Roll 25 mm ,Lengthen the skateboard, increase the load and enhance rigidity
    Turret tools

    Eight-station turret

    8 stations it can be equipped with a double-hole tool holder, and 12 stations are optional.
    Power head



    Power head tool support formER25
    Max.speed of power head6000(setting 4000),Products that can be commonly processed at 4000 rpm
    Max.installed deilling and milling head diameterØ16
    The distance between the power head shaft and the shafft65mm
     MotorMain motor powerSYNTEC 7.5kw
    Spindle motor torqueRated 47.75 N.M
    Maximum speed of turret power motor6000( settubg 4500)rmin
    X/Z axis motor powerSYNTEC2.4KW or YASKAWAI1.8KW
    X/Y axis power head motor power/torque SYNTEC2.4KW/11.5 N.M
    Power head motor max.speed5000r/min
    Spindle positioning brake deviceHydraulic
    Other itemsSlanting bed degree35 degrees
    Blade plate length x width 700x 290mm
    Machine L x W x H2200 x1580 x 2000 mm
    Machine net weight3430 kg
    Total horse13 KW
    average power consumption2kw/h

    Machine precision specification

    Main inspection itemsDetection methodfactory standard
    Spindle radial run-outDetect run-out of outer cone0.0025
    X-axis repeat positionDetect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.0.0025
    Z-axis repeat positionDetect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.0.0025
    Y-axis repeat position
    Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.
    0.004
    Power head clamping run-outCone beat0.004
    If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of South Factory.

    Configuration standard accessories

    NameSpecificationBrand
    NC controllerSYNTEC 22TB ,crystal panel10.4inchesTaiwan  SYNTEC
    X/Y axis servo driverStandard setting SYNTEC2.4KW (optional:YASKAWAI 1.8kw),X-axis motor with brakeChina
    Spindle
    Standard, Taiwan POSATaiwan POSA
    Spindle brakeThe main shaft is equipped with a hydraulic 4-cylinder disc brake to increase braking strength.Taiwan SYNTEC
    Fully closed loop indexingThe spindle is equipped with Taiwan SYNTEC magnetic ring encoderTaiwan SYNTEC
    Rotary cylinderHigh speed rotary cylinderTaiwan
    Spindle motor SYNTEC 7.5KW servo motor Taiwan
    X/Y-axis screwC3 grade futures grinding screw with double nut. One end is blind threaded.Taiwan PMI or Hiwin
    X/Y/Z-axis linear guild wayRoller P-level linear railTaiwan HIWIN OR PMI
    One piece casting baseThe bed and base are all made of resin sand and cast in one piece, without adding cement. The internal stress removal method of the cast iron is completely vibrated/fully annealed/insulated/aging, and then placed for a period of time after finishing and then tested to pass the test.Made in china
    LubricationJapan Valley brand lubricating oil pump (joint venture)Made in China Foshan
    Hydraulic unitGuangzhou ZhanPing hydraulic station,The user should prepare his own 46#original Great wall anti-wear hydraulic oil 46#/30kg.Made in China
    Colling pumpWater pump power 370W high pressure water pump.Spindle wall panel ejection.
    Machine metal coverThe outer cover is made of national standard thick 2mm cold plateMade in China
    Processing blow valveInstall 2 Air TAC solenoid valves to prepare for air blowing. The system controls the air blowing to realize the processing air blowing function.Taiwan
    Electrical distribution box coolingUse copper tubes (durable) to install environmentally friendly heat transfer media heat exchanges to cool down the circulation in the electrical box and keep it clean.Made in China
    Electrical componentsSchneider Electrical componentsMade in China
    power cable5 meters cable, high temperature resistance, wear resistance and corrosion resistanceMade in China

    Standard Accessories with machine

    ItemNameSpecificationQuantityRemark
    1Spring colletStandard1 PCSIinstalled on accessories or on the end face of machine tool spindle
    2Enamel tool holderØ251PCSTuring and milling CNC machining center with Y axis CK52-5+5+Y 7
    3

    Enamel tool holder

    Ø202pcs
    4Tool handle combination pressing block
    8 pcsMounted in accessory box or on turret
    5Machine mattress ironTuring and milling CNC machining center with Y axis CK52-5+5+Y 84 setsPacked in accessory box
    6Foot switchTuring and milling CNC machining center with Y axis CK52-5+5+Y 91PCSPacked in accessory box
    7

    Power head ER collet

     Turing and milling CNC machining center with Y axis CK52-5+5+Y 10 1 setMounted in accessory box or on turret
    8

    Power head wrench

     Turing and milling CNC machining center with Y axis CK52-5+5+Y 11Turing and milling CNC machining center with Y axis CK52-5+5+Y 12 2pcs

    Choose one according to the power head

    9Allen wrenchTuring and milling CNC machining center with Y axis CK52-5+5+Y 131 setpacked in accessory box
    10Internal suppoet chuck flange 1 pcs1 piece for every two machines

    Technical data with the machine

    itemnamespecificationquantityremark
    1

    Machine tool maintenance and repair manual

    Including M code, G code, circuit diagram1set
    2SYNTEC User ManualUdisk1 pcsin accessories box
    3Turret user manual
    1setin accessories box
    4Servo driver user manual
    1setin accessories box
