Heavy cutting capability Vertical machining center VMC-1580

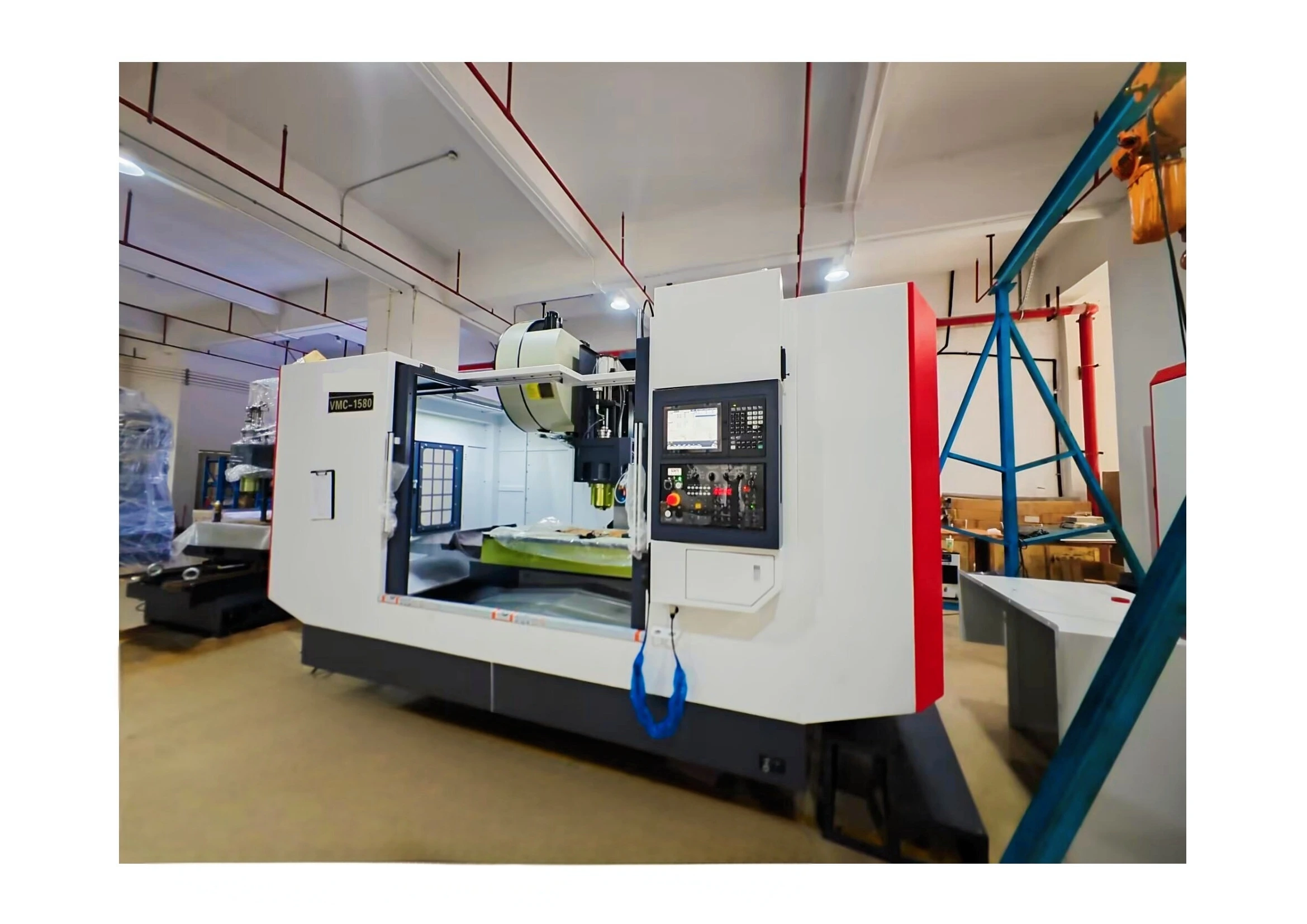

Vertical machining center VMC-1580
High rigidity | High precision | Heavy cutting capability
Core parameters:
Stroke: 1500×800×700mm (X/Y/Z).
Spindle: BT50 belt type | φ190mm large diameter | 18.5kW high power | 8000rpm (Luoyi/Jianchun brand, standard oil cooler).
Transmission system: Taiwan Hiwin screw rod + linear rail (X-axis 45 slider × 6 | Y-axis 45 slider × 8 reinforced support | Z-axis hard rail).
Structure: HT300 high-quality castings | Nitrogen counterweight | Y-axis four-track two-line one-hard design to ensure heavy cutting stability.
Key advantages:
Heavy load capacity: large diameter spindle + 18.5kW power, suitable for efficient processing of steel/cast iron.
Long-lasting precision: Mitsubishi M80B system + Hiwin transmission, with hard rail/multi-slider layout, strong vibration resistance.
Reliable configuration: external oil cooler + nitrogen counterweight to ensure long-term continuous operation stability.
1.Specifications
|
NO |
Item |
Unit |
VMC-1580 |
|
1 |
Workbench area |
mm |
1600*800 |
|
2 |
X\Y\Z axis travel |
mm |
1500*800*700 |
|
3 |
Maximum load of workbench |
kg |
1500 |
|
4 |
Distance from spindle end to workbench surface |
mm |
170-870 |
|
5 |
Distance from spindle center to column guide surface |
mm |
872.5 |
|
6 |
Workbench T-slot |
mm |
18*5*150*100 |
|
7 |
Spindle motor |
kw |
18.5 |
|
8 |
Spindle taper/diameter |
|
BT50-190 |
|
9 |
Spindle speed |
r/min |
8000 Belt type |
|
10 |
X/Y/Z axis rapid movement |
m/min |
24/24/24 |
|
11 |
Z-axis counterweight |
|
Nitrogen weight |
|
12 |
Ball screw |
mm |
50*10 |
|
13 |
Linear guide |
mm |
X:45*6 Y:45*8（four rail） Z：Hard rail |
|
14 |
Machine weight |
kg |
11000 |
|
15 |
Machine tool dimensions |
mm |
4100*3080*3140 |
2.Configuration Details
|
No |
Item |
Manufacturer |
|
1 |
Casting HT300 |
One-piece castings |
|
2 |
CNC/spindle servo/three-way servo system M80B |
Japanese Mitsubishi |
|
3 |
Spindle servo/three-way drive motor DL18.5KW|453-453-453 three-axis |
Japanese Mitsubishi |
|
4 |
Linear guide X:45*6 Y:45*8 (four rails) Z: hard rail |
Taiwan Hiwin |
|
5 |
Ball linear rail 50*10 |
Taiwan Hiwin |
|
6 |
Three-axis uses P4 grade bearings |
Japan NSK |
|
7 |
BT50 belt-type 8000 rpm spindle/diameter 190mm |
Luo Yi/Jianchun |
|
8 |
Electronic handwheel |
Zhehong/Binjie |
|
9 |
Processing cooling pump |
Deyang |
|
10 |
Three-axis coupling |
Luo Yi/Jianchun |
|
11 |
Electric cabinet heat exchanger |
Ricoh |
|
12 |
Automatic lubrication pump |
Joint venture Rihua Oil Engine |
|
13 |
Telescopic protective cover |
Joint venture |
|
14 |
Main contactor/air switch/circuit breaker/relay |
France Schneider |
|
15 |
Other electrical components |
France Schneider, Japan Omron |
|
Note: The slash marks indicate the use of either brand. |
||
|
Item |
Main inspection items |
factory standard |
|
1 |
X/Y/Z Positioning accuracy |
0.005/1000mm |
|
2 |
X/Y/Z Repeat positioning accuracy |
≤0.003 |
4.Optional:
1) BT50-190-8000rpm belt type arm type tool magazine.
2) Central water outlet + high-pressure water pump
3) Front chain chip conveyor
4) Double screw chip conveyor
5) FANUC system
