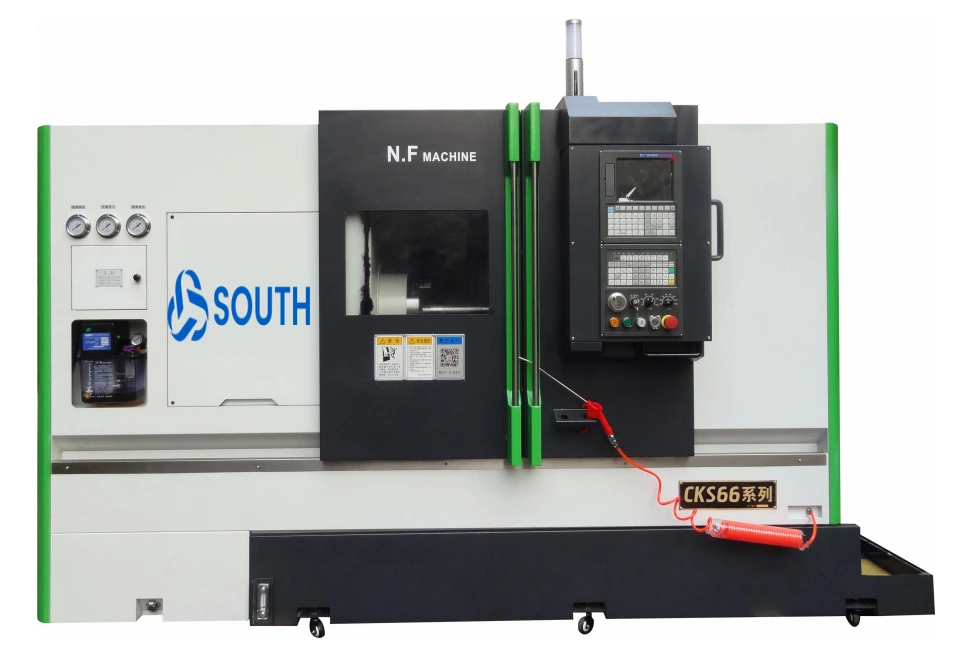

Light duty CNC lathe CKS66

1. Swing over lathe diameter 500mm

2. Spindle speed up to 35-4000r/min

3. Height of the center(Spindle center from the bottom of the bed)980mm

4. Spindle bore is 79mm

    oops...!

    no product data.

    Go to homepage

    Introduction

    1. Swing over lathe diameter 500mm

    2. Spindle speed up to 35-4000r/min

    3. Height of the center(Spindle center from the bottom of the bed)980mm

    4. Spindle bore is 79mm

    5. Adopting the monolithic conjoined L structure of lathe bed

    6. Adopt sleeve type main shaft,which is low temperature rise,high precision,easy maintenance.

    7. It can be used for linear interpolation, arc interpolation, thread and other cycle turning.

    CKS5080-2




    characteristic

    Light duty CNC lathe CKS66 5
    01
    The machine has good performance high precision, low noise, new style, etc
    Light duty CNC lathe CKS66 6
    02
    The lathe is electro-mechanical integration, and has beautiful appearance, compact structure, good waterproof  property,  reasonable  layout  and  strong  humanity  appropriate. Also the  adjustment  and maintenance is convenient.


    Main Specification

    Model of lathe CKS 66
    Main specifications Max. swing diam. over bed 500mm





    Processing range

    Max. Turning length 300mm,450mm,750mm,1100mm
    Max. Turning diameter(disk type) 320mm
    Max. Turning diameter(shaft type) 280mm
    Diameter of the bar

    Ø65mm



     Accuracy

    X/Z axle repeat position accuracy

    ±0.0025/±0.005

    X/Z axle position accuracy

    ±0.005/±0.008

    Man-machine handling distance Height of the center(From the bottom of machine) 980mm





    Spindle

    The forms and codes of spindle end A2-6
    Spindle head collect taper Ø83,1:20
    Spindle bore 79mm
    Spindle box with single spindle Spindle speed 35-2400r/min Stepless
    Spindle speed step number Stepless



    The motor performance

    Main motor output power The 30-minute rating 15 KW
    Continuous rating 11KW
    X/Z motor torque 15/10 N.m
    Hydraulic clamping Standard chuck Diameter of chuck 8 inch







    Feed shaft performance

    X axle rapid movement speed 20m/min
    Z axle rapid movement speed 24m/min
    X axle linear guide rail 20roller type
    Z axis linear guide 24roller type
    Travel of X axle 135mm
    Travel of Z axle 310mm,460mm,760mm,1110mm







    Tail stock performance




    The tailstock sleeve diameter 80mm
    Travel of tail stock sleeve 110mm
    Spindle collect taper of the tailstock Morse cone 4
    Max.thrust of tailstock sleeve 8000N
    The tailstock body trip 4000mm

    Programming tail seat is optional

    No,Yes,Yes,No









    Turret performance

    Type of the turret Servo horizontal 12-position turret
    Turret transfer time:every workstation/180° 0.1 sec
    Size of the cutting tool External circular cutting tool 25 x 25 x 125mm
    Boring blade diameter  Ø32mm
    The turret could be swapped or not   Yes





    Machine dimension(L x  W x H)

    2715mm x 1647mm x 1677mm
    2865mm x 1647mm x 1677mm
    3165mm x 1647mm x 1677mm
    3515mm x 1647mm x 1677mm
    Weight 3000kg,3200kg,3400kg,3500kg
