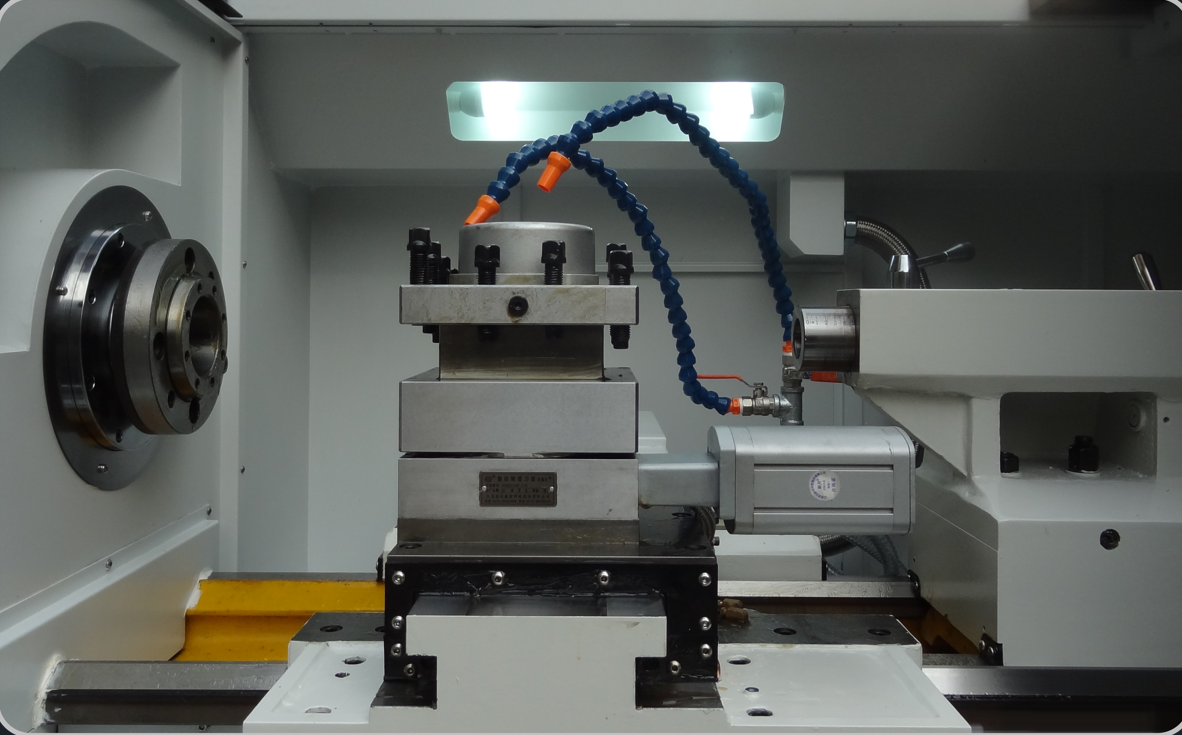

Classic flat bed heavy duty CNC lathe CK40D-1 2

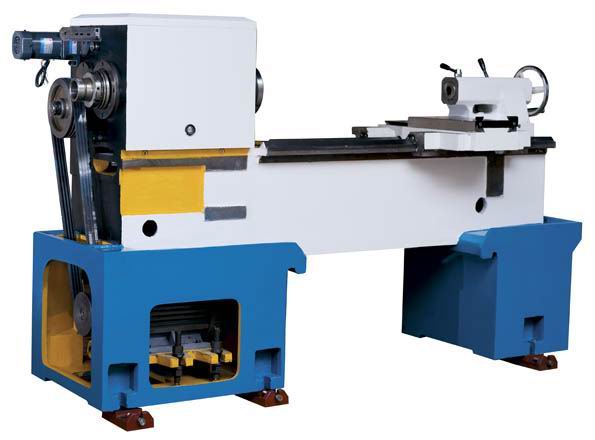

Classic flat bed heavy duty CNC lathe CK40D-1 3
Classic flat bed heavy duty CNC lathe CK40D-1 1
Classic flat bed heavy duty CNC lathe CK40D-1 2
Classic flat bed heavy duty CNC lathe CK40D-1 3

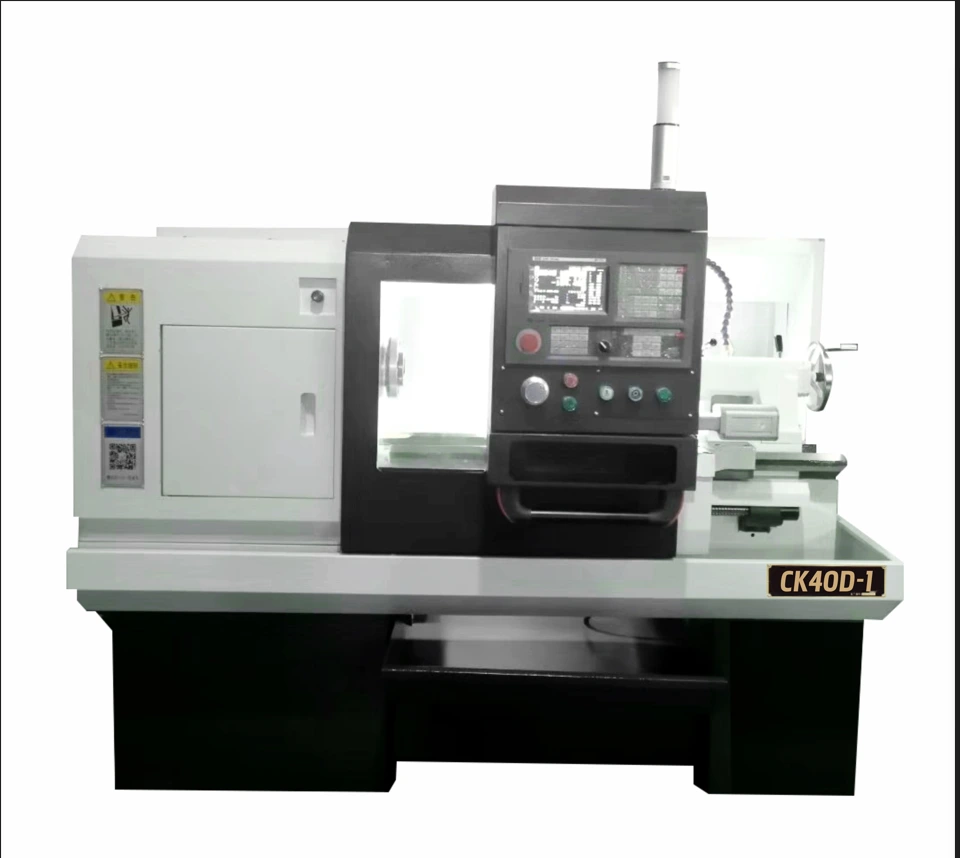

Classic flat bed heavy duty CNC lathe CK40D-1

Main performance(CN-K40D-1)
1. Swing over bed up to 400mm diameter
2. machining length 750mm
3. One piece casting base and bed, keep the machine stable reliability.
4. Longer 320mm distance between two guild ways on Z axis.
5. Longer 190mm distance between two guild ways on X axis.
6. Three levels speed range and automatic transfer
7. Independent chip removal system
8. All accessories are from China famous brand, and so they keep the good quality for the machine

    oops...!

    no product data.

    Go to homepage

    1. The spindle box adopts the classic manual two-gear structure, which is silent and stable;

    2.The sliding surface of the machine tool guide rail is coated with plastic, and the frictional damping is small;

    3.The machine tool has good processing consistency, can stably reach IT7-IT6 level accuracy, and the processing surface roughness can reach Ra1.6;

    4.The overall structure of the machine tool is economical and practical, and the price is pleasant.

    5.This machine is a classic flat bed heavy duty CNC lathe,it can be widely used in heavy turning processing, with higher productivity. Their main uses are: processing complex geometric shapes and various sizes, mainly used for processing short shafts, discs and other workpieces.

    400mm swing over bed CNC lathe –750mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center



    Model Specification CN-K40D-1
    Main spec Swing over bed 400mm
    Max length of machining work piece 750mm,1000mm,1500mm
    Bed span 320mm
    Capacity Max machining diameter on bed 400mm
    Max machining diameter on slider 226mm
    Max processing length(jaw-live center) 600mm,850mm,1350mm
    Bar through material diameter Ø50mm
    Spindle center height 200mm
    Spindle Spindle bore diameter Ø52mm
    Taper of spindle bore MORSE #6
    Range of spindle speed (Manual two gear 60-2000r/min )

    H:400-2000r/min ,L:60-460r/min

    Turret Max. travel of turret on Z axis 750mm,1000mm,1500mm
    Max. travel of turret on X axis 220mm
    Rapid move speed on Z axis 8000mm/min
    Rapid move speed on X axis 4000mm/min
    Turret positions vertical type 4 positions turret
    Turret size 25×25 mm
    Distance between spindle center to the support surface 25mm
    Tailstock Taper of spindle sleeve MT4
    max travel of tailstock sleeve 130mm
    max travel of Tailstock on X-axis ±10mm
    Motor Main motor power 5.5/7.5kw
    Torque of Z axis motor 6 N.m
    Torque of X axis motor 4 N.m
    Cooling pump 0.125KW
    Outline dimensions 750mm  2200mm x 1110mm x 1774 mm
    1000mm  2450mm x 1110mm x 1774 mm
    1500mm 2200mm x 1110mm x 1774 mm
    Net weight 750mm  1550 kg
    1000mm 1650 kg
    1500mm 1750 kg



    Machine inspection precision

    Inspection item China Standard Factory standard
    Machining precision IT7 IT7
    Machining work piece roundness 0.005mm/φ50mm 0.004mm/φ50mm
    Machining work piece cylindricity 0.03mm / 300mm 0.02mm / 200mm
    Machining work piece planeness 0.025mm/φ300mm 0.015mm/φ200mm
    Machining work piece surfaceness Ra2.5μm Ra2.0μm
    Position precision X-axis 0.03mm X-axis 0.024mm
    Z-axis 0.04mm Z-axis 0.032mm
    Re-position X-axis 0.012mm X-axis 0.01mm
    Z-axis 0.016mm Z-axis 0.012mm

    400mm swing over bed CNC lathe –750mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Machine configuration

    Accessories Name Specifications Model Manufacturer Remark
    CNC GSK980 GSK
    The main motor 5.5/7.5 KW spindle servo motor China Keteng
    X-axis motor 110ST-M040 GSK
    Z-axis motor 130ST-M060 GSK
    Spindle bearing P4 China famous HRB bearing
    P5

    P5


    Spindle 52 mm Spindle Southern Machine
    Turret Vertical 4 positions turret HTC
    X-axis ball screw C3 Bot / Han River
    Z-axis ball screw C3 Bot / Han River
    Screw bearings for X-axis lead screw P4 HRB/Luo axis research
    Screw bearings for Z-axis lead screw P4 HRB/Luo axis research
    Three-color light Three color flashing ONN
    The key electrical components Relay/Contactor Japan’s Izumi/Switzerland ABB/Schneider
    tailstock South CNC Machine Tool Company South brand



    The standard machine tool accessories:

    No. accessory name Model Specifications Quantity Remark
    1 Adjust the horn and bolts CN-K40D 1 Our
    2 Pan tools   1 Three gulls
    3 Screw tools   1 China brand
    4 Chuck Manual jaw chuck diameter Φ200 1 China brand

    400mm swing over bed CNC lathe –750mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Technical data:

    No. Technical data Name Copies Remark
    1 Manual machine tool (machine)—mechanic and electric 1
    2 Certificate 1
    3 Precision inspection 1
    4 Packing List 1
    5 Manual user operation for controller 1
    6 Controller system operation manual 1
    7 Electric diagram 1
