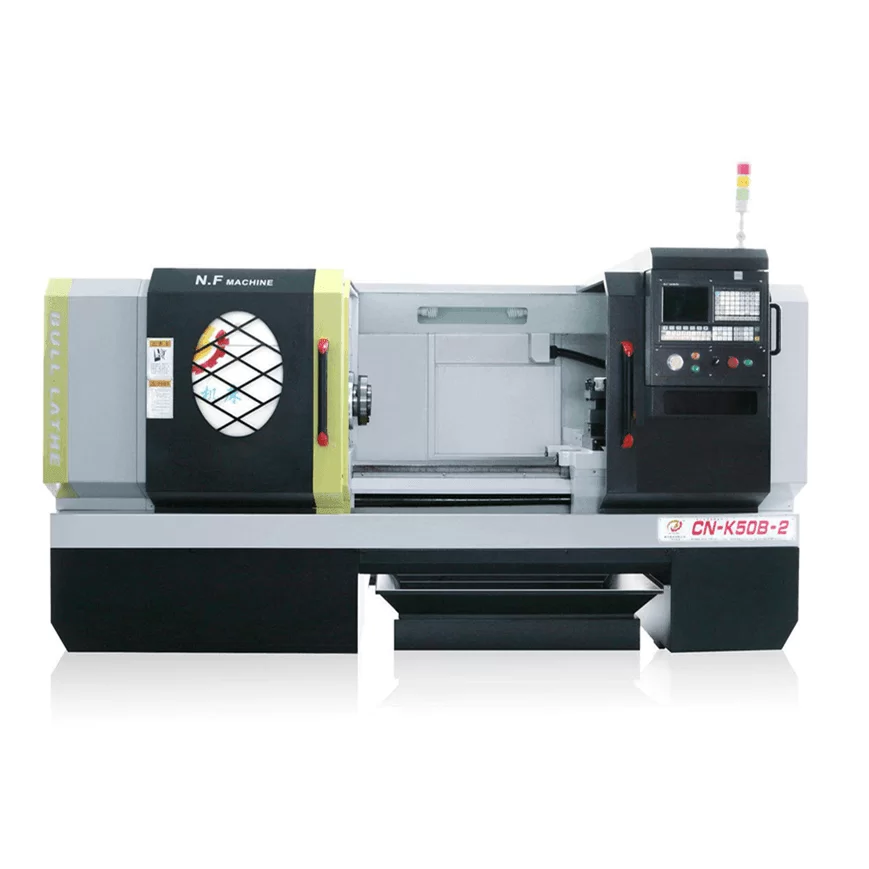

Main performance(CN-K50B-2000):
1. One piece casting base and bed, keep high rigidity, good accuracy and stable performance.
2. Swing over bed diameter :500mm
3. machining length 2000mm
4. Distance between guild way on Z-axis of the bed:420mm
5. Distance between guild way on X-axis of the bed:230mm
6. Centre of height: 265mm.
7. Spindle bore 82mm.
8. Spindle without gear box, motor driving directly
9. Beijing 11kw servo motor.
10. Spindle head model: 1:20 / Ø90
11. Independent spindle, it is very better to machine casting work piece and heavy duty.
12. GSK 980 controller
13. Servo motor, thread device, automatic lubrication, full cover protection for ball screw and lead rails.

    oops...!

    no product data.

    Go to homepage

    500mm swing over bed CNC lathe –2000mm machining length

    Main performance(CN-K50B-2000):
    1. One piece casting base and bed, keep high rigidity, good accuracy and stable performance.
    2. Swing over bed diameter :500mm
    3. machining length 2000mm
    4. Distance between guild way on Z-axis of the bed:420mm
    5. Distance between guild way on X-axis of the bed:230mm
    6. Centre of height: 265mm.
    7. Spindle bore 82mm.
    8. Spindle without gear box, motor driving directly
    9. Beijing 11kw servo motor.
    10. Spindle head model: 1:20 / Ø90
    11. Independent spindle, it is very better to machine casting work piece and heavy duty.
    12. GSK 980 controller
    13. Servo motor, thread device, automatic lubrication, full cover protection for ball screw and lead rails.

    500mm swing over bed CNC lathe –2000mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Model

    Specification

    CN-K50B-2000
    Main spec Swing over bed 500mm
    Max length of machining work piece 2000mm
    Capacity Max machining diameter on bed 500mm
    Max machining diameter on slider 280mm
    Max length of machine(distance between tailstock to chuck jaws) 1930mm
    Bar through material diameter Ø80mm
    Spindle center height 265mm
    Center distance between tailstock to spindle Distance between spindle to tailstock 2050mm
    Spindle Spindle bore diameter Ø82mm
    Taper of spindle bore C8 / 1:20 / Ø90
    Range of spindle speed Continuously transfer 50-2500rpm
    turret Max. travel of turret on Z axis 2020mm
    Max. travel of turret on X axis 310mm
    Rapid move speed on Z axis 8000mm/min
    Rapid move speed on X axis 6000mm/min
    Turret positions vertical type 6 positions turret
    Turret size 25×25 mm
    Distance between spindle center to the support surface 25mm
    Tailstock Taper of spindle sleeve MT5
    max travel of tailstock sleeve 150mm
    max travel of Tailstock on X-axis ±15mm
    Motor Main motor power 11 kw servo motor
    Torque of Z axis motor 1.5 kw(10N.m)
    Torque of X axis motor 1.2 kw(6N.m)
    Cooling pump AYB-20 0.115kw
    Tool holder model LD4
    Outline dimensions 1500mm model 4100mm x 1260mm x 1600 mm
    Weight 1500 mm model 3500 kgs

    Machine inspection precision

    Inspection item China Standard Factory standard
    Machining precision IT7 IT7
    Machining work piece roundness 0.005mm/φ50mm 0.004mm/φ50mm
    Machining work piece cylindricity 0.03mm / 300mm 0.02mm / 200mm
    Machining work piece planeness 0.025mm/φ300mm 0.015mm/φ200mm
    Machining work piece surfaceness Ra2.5μm Ra2.0μm
    Position precision X-axis 0.03mm X-axis 0.024mm
    Z-axis 0.04mm Z-axis 0.032mm
    Re-position X-axis 0.012mm X-axis 0.01mm
    Z-axis 0.016mm Z-axis 0.012mm

    500mm swing over bed CNC lathe –2000mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Machine configuration

    Accessories Name Specifications Model Manufacturer Remark
    CNC GSK980 GSK
    The main motor 11KW spindle servo motor China Beijing CBT
    X-axis motor 110ST-M06030 GSK
    Z-axis motor 130ST-M10025 GSK
    Spindle bearing P4 China famous HRB bearing
    P5



    Spindle 82 mm Spindle Southern Machine
    Turret Vertical 6 positions turret HTC LD4
    X-axis ball screw C3 Bot / Han River
    Z-axis ball screw C3 Bot / Han River
    Screw bearings for X-axis ball screw P4 HRB/Luo axis research
    Screw bearings for Z-axis ball screw P4 HRB/Luo axis research
    Three-color light Three color flashing ONN
    The key electrical components Relay/Contactor Japan’s Izumi/Switzerland ABB/Schneider
    tailstock China South brand South CNC

    The standard machine tool accessories:

    No. accessory name Model Specifications Quantity Remark
    1 Adjust the horn and bolts CN-K50B 1 Our
    2 Pan tools 1 Three gulls
    3 Screw tools 1 China brand
    4 Chuck Manual jaw chuck diameter Φ250 1 China brand

    Technical data:

    No. Technical data Name Copies Remark
    1 Manual machine tool (machine)—mechanic and electric 1
    2 Certificate 1
    3 Precision inspection 1
    4 Packing List 1
    5 Manual user operation for controller 1
    6 Controller system operation manual 1
    7 Electric diagram 1
