Numerically-controlled frame heavy duty CNC lathe CK56S 1

Numerically-controlled frame heavy duty CNC lathe CK56S 2

Numerically-controlled frame heavy duty CNC lathe CK56S 3

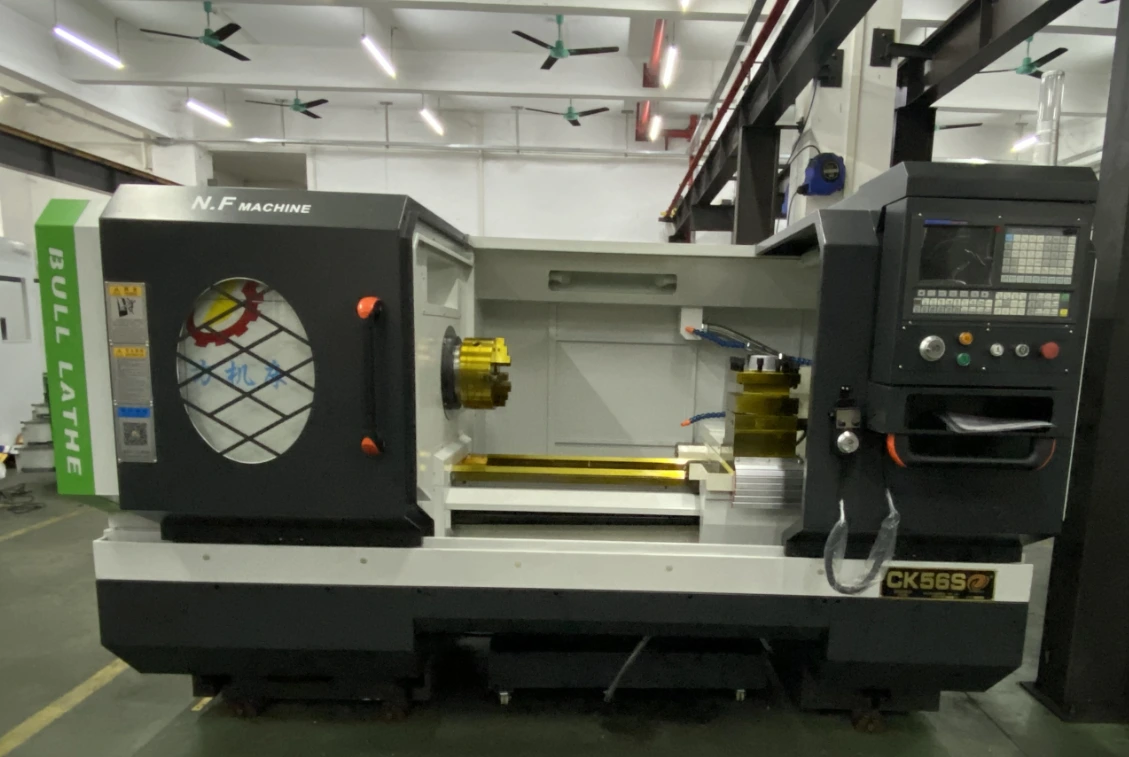

Numerically-controlled frame heavy duty CNC lathe CK56S

1.This heavy duty lathe is a numerically-controlled frame machine.The spindle is geared by the headstock gear to get the high,medium and low three gears manual transmission.gears in the headstock adopt large transmission ration(i=21) the widening gear used can enlarge transmission torque when the machine in medium and low speed so that is able to withstand the larger impact. The lathe is grinded by numerical control guide rail, the headstock is produced by Japanese Divid horizontal processing, and the gears in the headstock are produced by CNC gear grinding machining.

2.The machine has high precision,low noise,good rigidity,convenient operation,etc.Suitable for the processing of all kinds of plate, sleeve,shaft,the internal and external tread,cone,sphere,etc.The machine is mainly used in automobiles, machinery, and abrasive industry.

Inquiry

Write a Review

Main performance

1.Max.swing diam. Over lathe: 630mm

2.Max.length of the work piece:3000mm

3.Machining max.diameter on the bed body: 560mm

4.Height of the centre: 315mm

5.Spindle speed: H:1600-500r/min; M:760-190r/min; L:220-45r/min

сверхмощный токарный станок с ЧПУ CK80S-4

characteristic

Numerically-controlled frame heavy duty CNC lathe CK56S 5

The machine has high precision,low noise,good rigidity,with good performance and low price.It should be widely used in machinery, hardware, cars, and abrasive industries.

Numerically-controlled frame heavy duty CNC lathe CK56S 6

The machine drive by the motor,through the gears in the headstock,the spindle can make the speed regulation from high,medium and low-grade steplessly.

Main Specification

Model of lathe			CK56S
Main specifications	Max.swing diam.over lathe		630mm
	Max.length of the work piece		1000mm	1500mm	2000mm	3000mm
Processing range	Height of the center		315mm
	Max.diam. on the bed body		560mm
	Max.length processing		900mm	1400mm	1900mm	2900mm
	Max.diam. on the drag plate		410mm
Spindle	Spindle bore		86mm
	Spindle head collect taper		1:20 Ø90mm
	Spindle speed		H:1600-500r/min M:760-190r/min L:220-45r/min
Turret	Max.longitudinal travel of turret		1000mm,1500mm,2000mm,3000mm
	Max.transverse travel of turret		300mm
	Max.Longitudinal feed speed		6000mm/min
	Max.transverse feed speed		3000mm/min
	Station number of the turret		4 station
	Section size of the turret		25 x 25m㎡
	The dimension from the center line of the spindle to the supporting surface of the turret		25mm
Tailstock	Cone of the tailstock quill		MT5
	Max.stoke of the tailstock quill		150mm
	Max.transverse movement		±15mm
Motor	Main motor power		7.5kw
	The longitudinal(Z direction)servo motor motor power		1.5kw
	The transverse(X direction) servo motor power		1.2kw
	Model of cooling pump		AYB-20 0.115KW
	Model of turret		LD4
	Main drive belt		6-spz2437
Machine dimension(L x W x H)		1000mm	2500mm x 1400mm x 1550mm
		1500mm	3000mm x 1400mm x 1550mm
		2000mm	3500mm x 1400mm x 1550mm
		3500mm	4500mm x 1400mm x 1550mm
Net weight		1000mm	2400kg
		1500mm	2600kg
		2000mm	2900kg
		3500mm	3400kg
