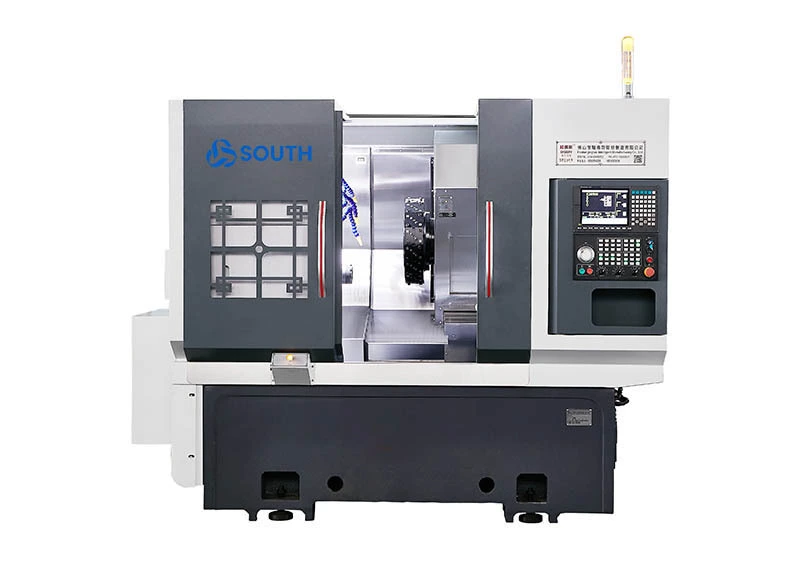

4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY

Y-axis adopts: interpolation Y-axis and vertical Y-axis, the interpolation Y-axis has good rigidity, the precision difference is 50%,the vertical Y-axis, the precision is high, the rigidity check is 30%.optional vertical hard rail Y-axis.

    oops...!

    no product data.

    Go to homepage

    IMG_6568



    Introduction

    ● Y-axis adopts:interpolation Y-axis and vertical Y-axis, the interpolation Y-axis has good rigidity,the precision difference is 50%, the vertical Y-axis, the precision is high, the rigidity check is 30%.optional vertical hard rail Y-axis.

    Equipped with 16 or 12 stations BMT55 dynamic tool tower,each station can be matched with power tool holder.

    With four lock function, the top material will not swing and warp,to ensure precision machining.

    Chip discharge mode:side chip discharge, back chip body ,arbitrary installationZIJ_3863


    IMG_6563副本
    IMG_6563副本

    characteristic

    4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 8
    01
    Can achieve four axis linkage function.
    4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 9
    02
    Can process complex stainless steel, titanium alloy.

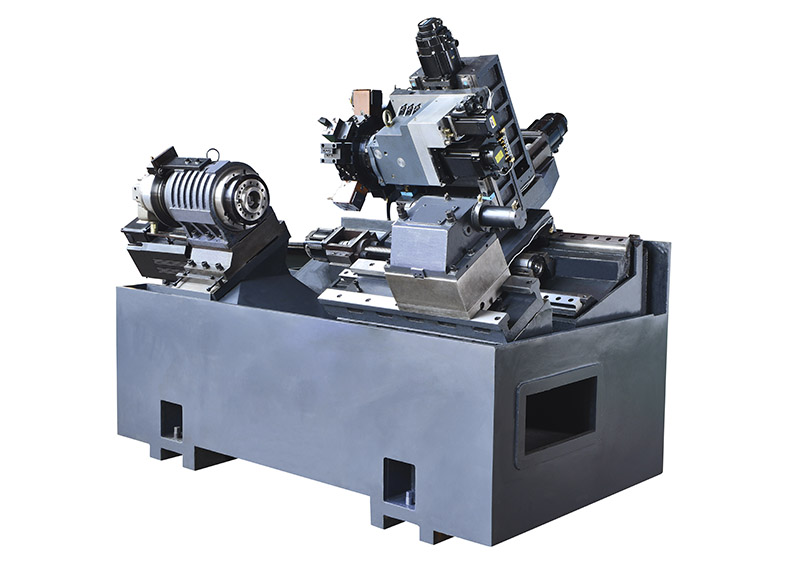

    ZIJ_6848
    03
    Y-axis adopts line rail to ensure long-term accuracy.

    Main Specification

    Model of latheCK46DTY
     Machining capacityMax. swing diam. over latheØ700mm
    Max. turning length520mm
    Maximum bar material diameterØ45
    SpindleSpindle modelA2-5
    Spindle bore diameterØ56 mm
    Max. Spindle speedmax.6000r/min
    Setting spindle speed1-4500 rpm
    X/Z/Y axis feedingX-axis maximum travel250 mm
    Z-axis maximum travel500mm
    Y-axis maximum travel550mm
    X/Z/Y axis max. fast travel speed24/24/14 m/min
    X/Z/Y -axis C3 grade screw40 mm
    X-axis Roller P4-level linear rail35/45/35 mm
    Tttt Turret toolsPowered tool turret model (powered tool holder)BMT55
    Power head chuckER25/32
    Static Tools dimension25x25 mm
    Boring toolsØ32/40
    MOMOTO MotorMain motor powerSYNTEC7.5kw
    Spindle motor torqueRated 47 N.M
    X/Z /Y axis motor powerYASKAWAI2.9KW or  SYNTEC  3.1 KW
    X/Z/Y axis motor torqueYASKAWAI 18.6N.M or SYNTEC 18 N.M
    Turret power head motor power/torque SYNTEC 3.1KW/15 N.M
    Turret tool change motor power/torque SYNTEC 1.0KW/3 N.
    Maximum speed of turret power motor6000(settubg4000)r/min,
     Power head motor power/torque3.1KW/15 N.M
    TailstockTailstock travel520 mm
    Tailstock hydraulic unit maximum travel100 mm
    Tailstock thimble taper taperMorse #5
    Distance between thimble and chuck690 mm
    Other itemsSpindle positioning brake deviceHydraulic
    Slanting bed degree15 degrees
    Machine L x W x H2500 x1680 x 1900 mm
    Machine net weight5000 kg
    Total horse20 KW
    average power consumption3kw/h

    Machine precision specification

    Main inspection itemsDetection methodfactory standard
    Spindle radial run-outDetect run-out of outer cone0.0025
    X-axis repeat positionDetect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.0.0025
    Z-axis repeat positionDetect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.0.0025
    Y-axis repeat positionDetect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.0.004
    Power head clamping run-outCone beat0.004
    If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of South Factory.

    Configuration standard accessories

    NameSpecificationBrand
    NC controllerSYNTEC 22TB ,crystal panel10.4inchesTaiwan  SYNTEC
    X/Y/Z axis servo driverStandard setting SYNTEC 3.1KW (optional:YASKAWAI 2.9kw),X-axis motor with brakeChina
    Power head motorStandard:SYNTEC motorChina
    X/Y/Z-axis screwC3 grade futures grinding screw with double nut. One end is blind threaded.Taiwan PMI or Hiwin
    X/Y/Z-axis linear guild wayRoller P-level linear railTaiwan HIWIN OR PMI
    SpindleStandard, Taiwan POSATaiwan POSA
    Spindle motorSYNTEC 11kw,torque72N.mTaiwan SYNTEC
    Powered turretStandard German SlitterMade in China
    Turret power motorWater-cooled motorTaiwan SYNTEC
    Turret tool changing motorTaiwan SYNTECTaiwan SYNTEC
    Spindle brakeThe main shaft is equipped with a hydraulic 4-cylinder disc brake to increase braking strength.Made in China
    Fully closed loop indexingThe spindle is equipped with Taiwan SYNTEC  magnetic ring encoderTaiwan SYNTEC
    Rotary cylinderHigh speed rotary cylinderTaiwan
    TailstockDovetail guide rail, hydraulic ejector pinMade in China
    One piece casting baseThe bed and base are all made of resin sand and cast in one piece, without adding cement. The internal stress removal method of the cast iron is completely vibrated/fully annealed/insulated/aging, and then placed for a period of time after finishing and then tested to pass the test.Made in china
    LubricationJapan Valley brand lubricating oil pump (joint venture)Made in China Foshan
    Hydraulic unitGuangzhou ZhanPing hydraulic stationMade in China
    Machine metal coverThe outer cover is made of national standard thick 2mm cold plateMade in China
    Processing blow valveInstall 2 Air TAC solenoid valves to prepare for air blowing. The system controls the air blowing to realize the processing air blowing function.Taiwan
    Electrical distribution box coolingUse copper tubes (durable) to install environmentally friendly heat transfer media heat exchanges to cool down the circulation in the electrical box and keep it clean.Made in China
    Electrical componentsSchneider Electrical componentsMade in China
    power cable5 meters cable, high temperature resistance, wear resistance and corrosion resistanceMade in China
    Cooling pumpWater pump power 370W high pressure water pump. Spindle wall panel ejectionMade in China
    High pressure pumps3000W high pressure water pump,Hmax130M,2900r/min, turret ejection, programmableMade in China

    Standard Accessories with machine

    ItemNameSpecificationQuantityRemark
    1Enamel tool holderØ32/403PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 11
    2Outside diameter square tool holder (including pressure block)25X254PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 12
    3Square end tool holder (including pressure block)25X251PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 13
    40° power head tool holderStandard maximum speed4000r/min1PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 14
    590° power head tool holderStandard maximum speed4000r/min1PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 15
    60° power head tool holderHigh quality surface maximum speed4000r/min1PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 16
    790° power head tool holderHigh quality surface maximum speed4000r/min1PCS4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 17
    8Machine mattress iron4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 184 sets
    9Foot switch4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 191PCS
    10Power head ER collet4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 201SET
    11Power head wrench4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 214-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 222PCSChoose one according to the power head
    12Allen wrench4-axis Power Turret CNC Lathe Machine with Tailstock CK46DTY 231 set

    Technical data with the machine

    itemnamespecificationquantityremark
    1Machine tool maintenance and repair manualIncluding M code, G code, circuit diagram1set
    2SYNTEC User ManualUdisk1 pcsin accessories box
    3Turret user manual
    1setin accessories box
    4Servo driver user manual
    1setin accessories box
