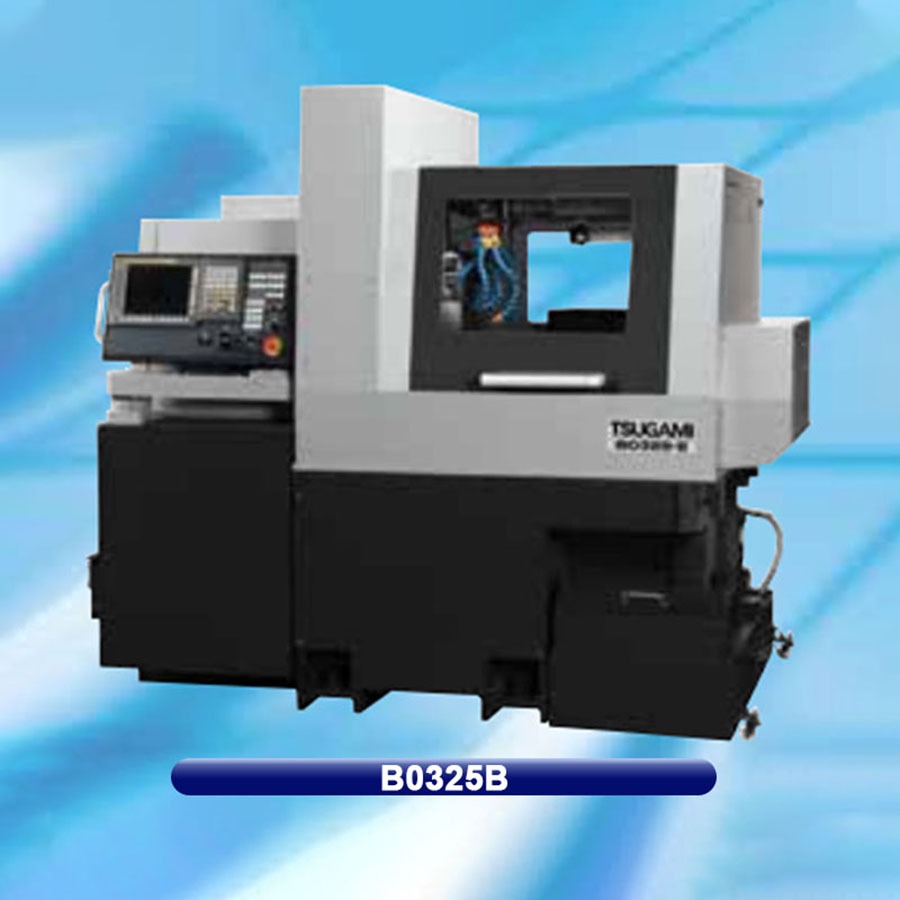

5-axis Swiss lathe with high rigidity B0325-III
Main performance:
1. Working bar stock diameter: Ø8~Ø32mm
2. Main spindle hole diameter: Ø39.6mm
3. Main spindle speed : 200~8,000r/min
4. 5-axis Swiss type CNC lathe
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Introduction
1.Variable production corresponding to complex-shaped work-pieces.
2. Adopt TSUGAMI's proprietary chuck opening and closing structure to replace the traditional toggle and improve its true roundness
3.The use of conductive sleeves (option) enables high-speed and high-precision processing,high-speed and stable operation, and improved shape accuracy,
dimensional accuracy, and surface finish.
4. Equipped with new software to shorten the processing cycle, improve processing accuracy and improve convenience.
5.The processing plan is full, rich in options, and can correspond to various types of work.
6.One piece casting base and slanting bed keep good stable machine performance.

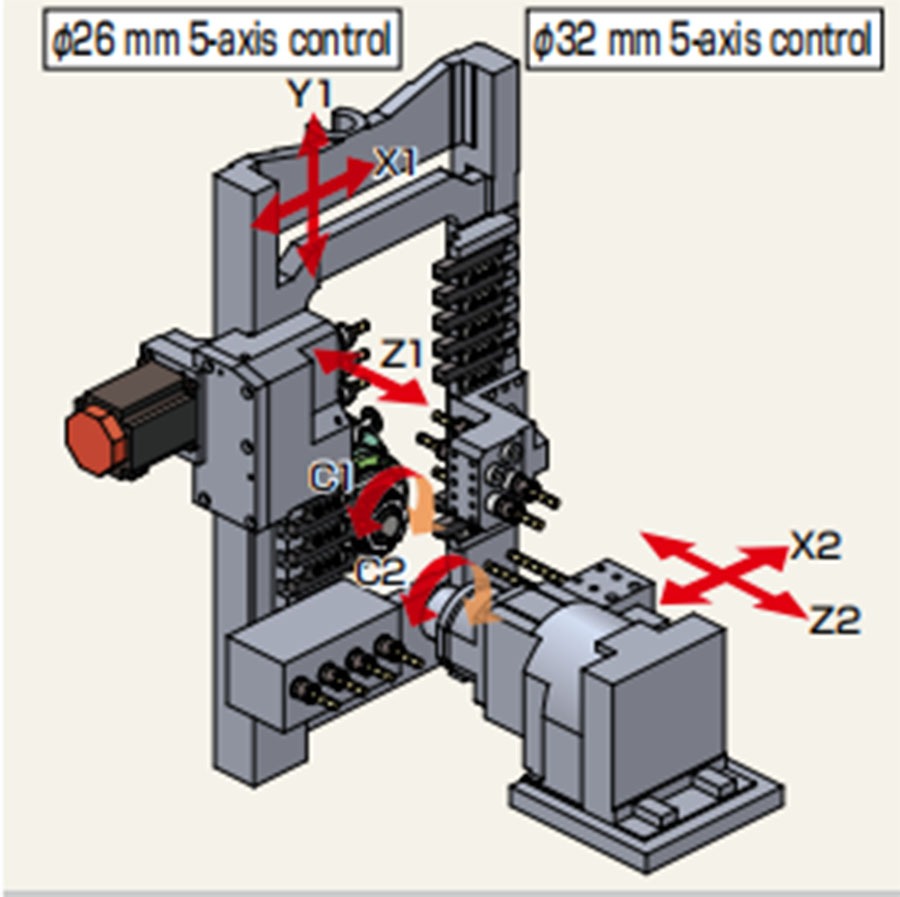

Front & back simultaneous machining
Ø32mm -5axis control
| Front & back simultaneous machining | ○ | |
| Back spindle | ○ | |
| 4-spindle cross rotary tool | ○ | |
| Back rotary tool | Option | |
| Guide-bush-less kit | Option | |
| Direct-drive guide bushing | Option | |
| C-axis | ○ | |
| Cross rigid tap | Option | |
| Back rigid tapping | Option | |
| Number of tools | ||
| OD tool storage capacity | 12 | |
| 4 spindle cross-rotary | 4 | |
| Front | Fixed | 7 |
| Rotary | option | |
| Back | Fixed | 4 |
| Rotary | Option | |
| Total tool storage capacity | 27(Standard) | |

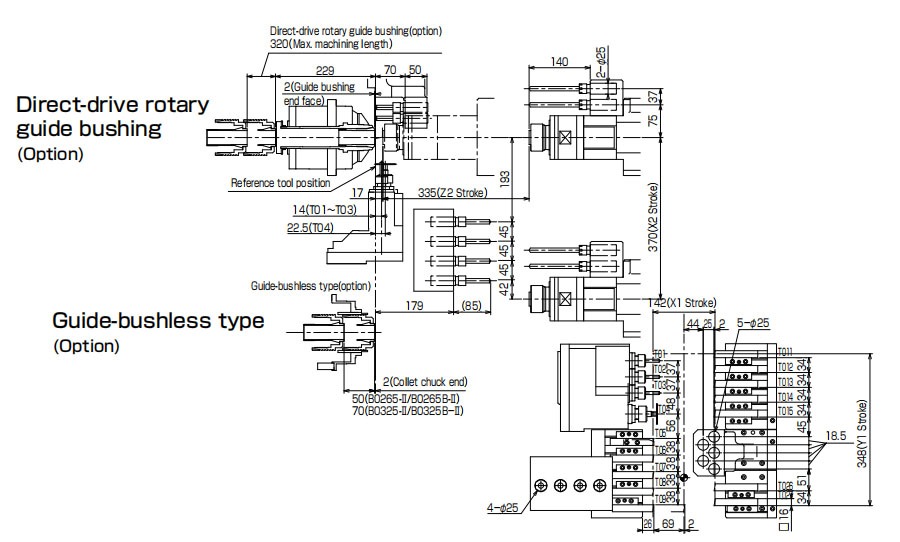

Tooling zone
Appearances

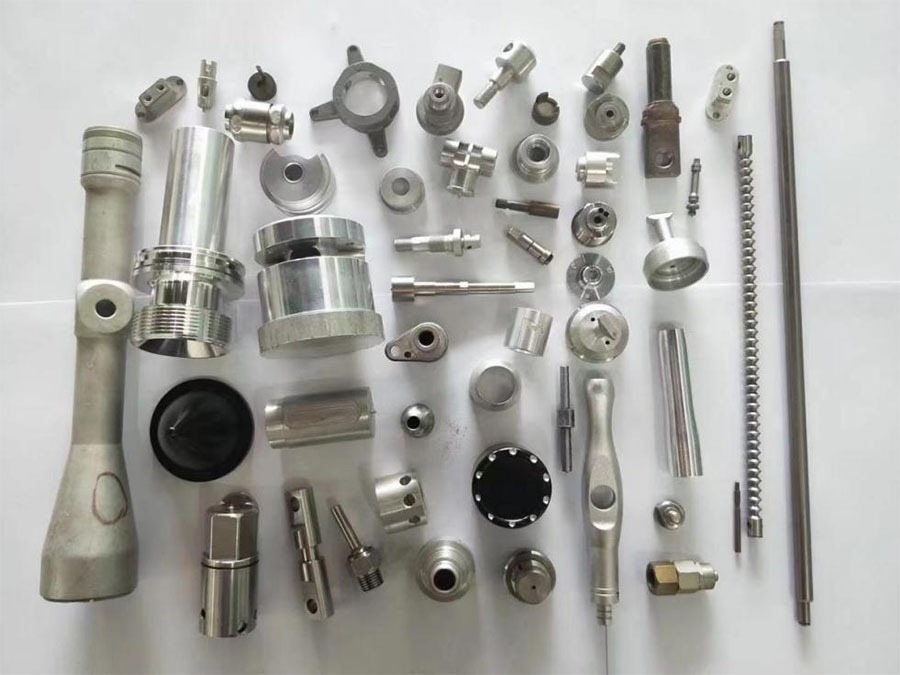

CNC machining parts
Collect chucks and guide bushing for Tsugami’s standard specification
| B0325-III | ||
| Main spindle collect chuck | 2601-5216 | |
| Back spindle collect chuck | 2601-5216 | |
| Guide bushing | Carrier type | — |
| Direct drive type | 2621-6216 | |
Selection of live tool (option)
| Front tool post | B0325-III | |||
| Rear tool post | 4 spindle cross drill | standard | ||
| Rear drive | 3290-Y020 | |||
| Double face spindle (Double heads) | In conjunction with rear drive | 3282-Y901 | ||
| Angular spindle(Double heads) | 3282-Y921 | |||
| Tool spindle | 3268-T051 | |||
| Hobbing head | 3268-Y430 | |||
| Thread whirling head | 3268-Y450 | |||
| Multiplied tool spindle | 3290-Y670 | |||
| Back tool post | Back drive | 3290-Y220 | ||
| Y2 axis tool post | — | |||
| Tool spindle | In conjunction with back drive | 3282-Y041 | ||
| Back cross tool spindle | — | |||
| Back tool adapter | 3282-Y211(Ø25hole) | |||
| Multiplied tool spindle | 3290-Y680- | |||
Main Specification
| Model | B0325-III | |
| Machine capacity | Working bar stock diameter | Ø8~Ø32 mm |
| Max.Back spindle chucking diameter | Ø32 mm | |
| Max. machining length | 320mm-electrical direct driving guild bush;90mm-rotary guide bushing; 80mm-Guide bush less |
|
| Mai spindle hole diameter | Ø39.6mm | |
| Back spindle hole diameter | Ø32.5mm | |
| Max. Main spindle drilling diameter | Ø14mm | |
| Max. Main spindle tapping diameter | M14 | |
| Max. Back spindle drilling diameter | Ø10 | |
| Max. Back spindle tapping diameter | M12 | |
|
Max. Spindle deep drilling diameter |
Ø10mm |
|
| Max. Toll drilling diameter |
Ø8m- front tool post; Ø10mm- Rear tool post/back tool post |
|
| Max. Tool tapping diameter |
M6- front tool post; M8mm- Rear tool post/back tool post |
|
| Max. Tool spindle slotting cutter dia. | Ø45mm | |
| Machine
|
Main spindle speed | 200-8,000 r/min |
| Back spindle speed | 200 to 8000r/min | |
| Rotary guide bushing speed | 200 to 8000 r/min | |
| Tool spindle speed | 200 to 6000 r/min (option)*3 (rated speed 4800 r/min) | |
| Total tool storage capacity (Standard / Max. : Option) | 32 | |
| Tool size | 16 mm x 16 mm | |
| Rapid traverse rate | 32 m/min ( X 1,Y1,Y2 :24 m/min ) | |
| Controlled axis ( linear axes ) | 5-axis | |
|
Motor speed |
Main spindle | 3.7/5.5 KW |
| Back spindle | 3.7/5.5 KW | |
| Axis | X1,Y2;0.5KW Y1,Z1,X2,Z2;0.75kw | |
| Cross drill |
Front tool post: 1.0kW; Rear tool post: 1.4kW; Back tool post: 1.4kW |
|
| Coolant pump | 0.4 KW | |
| Lubricating oil pump | 3 W | |
| Power supply and others | Net weight | 3700 kg |
| Power source requirement | 16.8kVA | |
| Compressed air requirement | 0.4 MPa or above | |
| Air discharge rate | 100 NL/min | |
| Coolant tank capacity | 180 L | |
| Width x depth x height | 2630 x 1695 x 1970 | |
NC specifications
| Item | B0325-III |
| NC unit | FANUC 32i-B |
| Controlled axes | X1, Z1, Y1,X2,Z2,C1,C2 |
| Least input increment | 0.001 mm (X1/X2 axis in diameter) |
| Least command increment | X1,X2 axis 0.0005mm,other axes:0.001mm |
| Maximum programmable value | ±8 digits |
| Interpolation method | Linear , circular |
| Feed rate | 1 to 6,000 mm/min |
| Feed rate override | 0 to 150 % in 10% increments |
| Dwell | G04 0 to 99999.99 |
|
ABS / INC command |
X,Y,Z ,C: absolute , U, V , W,H : Incremental |
| Tool offset pairs | 99 |
| LCD / MDI | 10.4 inches color LCD |
| Display language | Japanese / English |
| Part program storage size | 64 kbyte(equivalent to 80m tape path system) |
| Registerable programs | 63 * sum of main and back spindle NCs |
| Miscellaneous function | M5-digits |
| Spindle function | S5-digits |
| Tool function | T4-digits |
Standard accessories
| Item | B0325-III |
| Automatic programming system | ○ |
| Tool height compensation | ○ |
| Tool life counter | ○ |
| Periodic maintenance screen | ○ |
| Main spindle adapter | ○ |
| Back spindle adapter | ○ |
| Guide bushing adapter | ー |
| Door interlock | ○ |
| Coolant level detector | ○ |
| Spindle cooling unit | ○ |
| Standard tools | ○ |
| Transit clamps | ○ |
| 4-hole drill bracket | ー |
| Retractable coolant nozzle | ○ |
| Automatic power shut off | ○ |
| Front tool post: 4-spindle cross drill | ○ |
| Deep hole drill holder（ φ25mm×2) | ○ |
| Automatic cut-off function/Automatic facing function | ○ |
| Main spindle/back spindle air purge | ○ |
| Cross drill air purge | ○ |
| Main spindle brake | ○ |
| C-axis control for main/back spindles | ○ |
| Drill holder (Single head) | ー |
| Double heads drill holder（Adjustable drill holder） | ー |
| Iumination light | ー |
NC standard accessories
| Item | B0325-III |
| Chasing function | ○ |
| Continuous thread cutting | ○ |
| Manual pulse generator | ○ |
| Memory card input/output interface | ○ |
| Back ground editing | ○ |
| Run time & parts number display | ○ |
| Custom macro | ○ |
| Constant surface speed control | ○ |
| Spindle synchronous control (rotation/phase/tracing) | ○ |
| Tool geometry/wear off set | ○ |
| Programmable data input | ○ |
| Chamfering & corner R | ○ |
| Tool nose radius compensation | ○ |
| ＨＲＶ control | ○ |
| Multiple repetitive cycle | ○ |
| Extended program editing | ○ |
| Canned drilling cycle | ○ |
| Rigid tap (Main spindle, back spindle) | ○ |
| Spindle speed fluctuation detection | ○ |
| Cut-off detection (Speed Differential type) | ○ |
| Manual handle retrace function | ー |
| Stored stroke check 2,3 | ○ |
| Part program storage size | 64kbyte (sum of main and back spindle NCs) |
| Registerable programs | 63(sum of main and back spindle NCs) |
Options
| No. | Item | B0325-III | |
| Guide busing | Stationary guide bushing | — | |
| Carrier type rotary guide bushing | — | ||
| Direct-drive guide bushing | ○ | ||
| Guide-bushing-less kit | ○ | ||
|
Advanced function system
|
Main spindle C axis control | standard | |
| Back spindle C axis control (Brake is optional) | standard | ||
| Spindle 1° index | ○ | ||
| Spindle 15° index | — | ||
| Main spindle brake | standard | ||
| Back spindle 15° index | ○ | ||
| Back spindle 1° index | ○ | ||
| Back spindle brake | ○ | ||
| Live tool beside the back spindle | ○ | ||
| Cross drill（Modular type:1） | — | ||
| 2-spindle cross drill | — | ||
| 3-spindle cross drill | — | ||
| 4-spindle cross drill | standard | ||
| High precision system
|
0.1 μm resolution | ○ | |
| Coolant oil temperature controller | ○ | ||
| X2-axis touch switch | standard | ||
|
Live tools (Rear tool post)
|
Rear drive | ○ | |
| Tool spindle | ○ | ||
| Double face spindle | ○ | ||
| Angular drilling head | ○ | ||
| Thread whirling head | ○ | ||
| Hobbing head | ○ | ||
| Live tools
(Back tool post)
|
Back drive | ○ | |
| Tool spindle | ○ | ||
| Back cross tool spindle | — | ||
| Back tool adapter | ○ | ||
| Coolant related
|
Mist collector | ○ | |
| High pressure pump unit | ○ | ||
| M code oil blow | ○ | ||
| WAVY coolant nozzle | ○ | ||
|
Workpiece discharge system
|
Work catcher | ○ | |
| Work conveyor | ○ | ||
| Front discharge | ○ | ||
| Rear discharge | ○ | ||
| Chip disposal | Chip conveyor | ○ | |
| Machine maintenance and
monitoring functions |
Cut-off detection (Touch switch type) | — | |
| Signal indicator | ○ | ||
|
Tooling related
|
Adapter for non-round bar (main spindle) | ○ | |
| Adapter for non-round bar (back spindle) | ○ | ||
| Collect chuck with carbide lining | ○ | ||
| Tool set gauge | ○ | ||
| Spindle liner | ○ | ||
| Drill holder | ○ | ||
|
NC functions
|
Part program storage size 128 kbytes | ○ | |
| Part program storage size 256 kbytes | ○ | ||
| Part program storage size 512 kbytes | ○ | ||
| Part program storage size 1 Mbyte | ○ | ||
| Number of registerabele programs expansion #1 | Storage size 64 kbyte (Registerable programs: 120) | ○ | |
| Storage size 128 kbyte (Registerable programs: 250) | ○ | ||
| Storage size 256 kbyte (Registerable programs: 500) | ○ | ||
| Storage size 512 kbyte (Registerable programs: 1000) | ○ | ||
| Direct drawing dimension program | ○ | ||
| Variable-lead thread cutting | ○ | ||
| Thread cutting cycle retract | ○ | ||
| Polar coordinate interpolation | ○ | ||
| Cylindrical interpolation | ○ | ||
| Display language | ○ | ||
|
Safety and other
|
Coolant flow switch | ○ | |
| Automatic fire extinguisher | ○ | ||
| Illumination lamp | ○ | ||
| Bar feeder interface | ○ | ||
| Manual handle retrace function | ○ | ||
| Live tool rigid tapping | ○ | ||
| RS232C input/output interface | ○ | ||
| Inch/metric conversion | ○ | ||
| Abnormal load detection | ○ | ||
| Correspondence for water soluble coolant | ○ | ||
Technical date:
| 1. | Operating instruction manual | 1 set |
| 2. | System appendix specification | 1 set |
| 3. | Quality testing report | 1 set |
| 4. | Packing list | 1 set |
