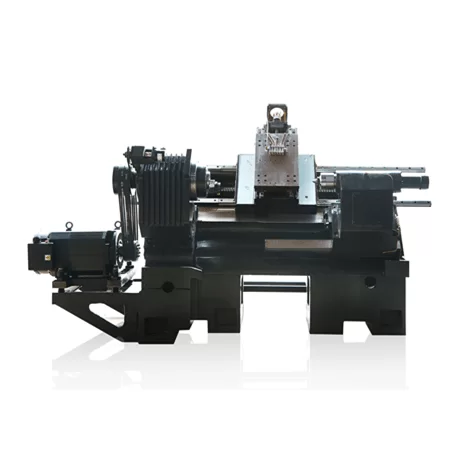

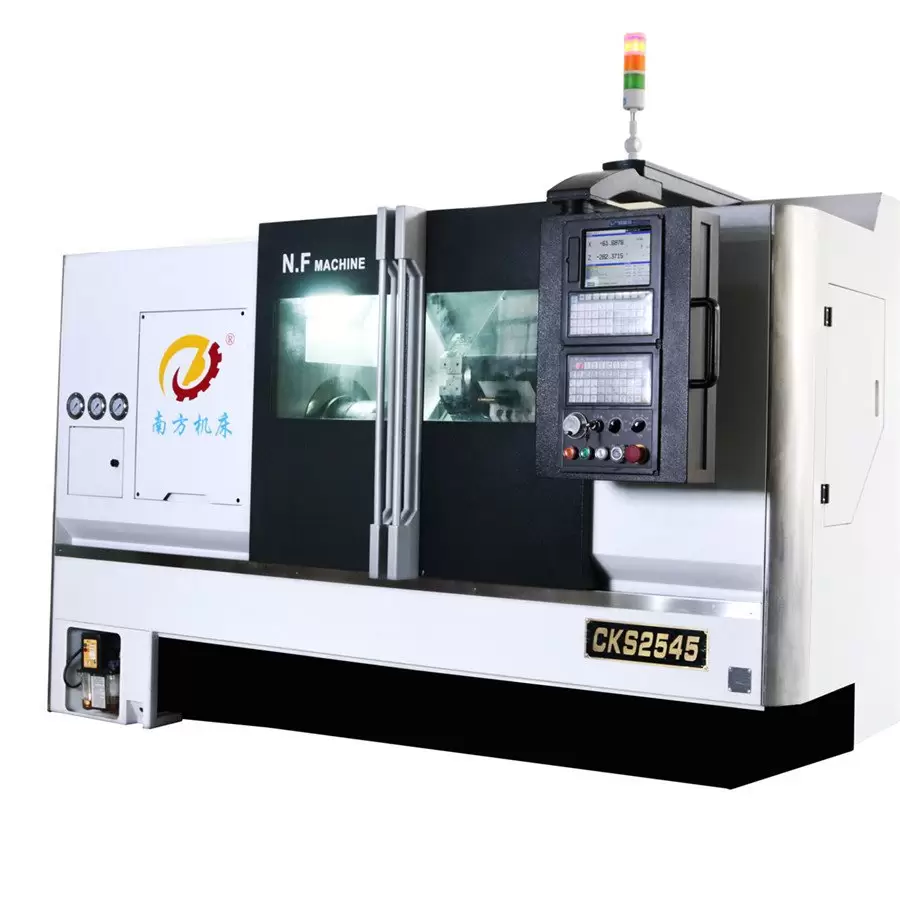

450mm swing over bed CNC lathe CKS2545

Main performance（CKS2545B）
1. Swing over lathe diameter 450mm
2. turning length 450mm
3. turning diameter 250mm
4. One piece casting base and slanting bed keep good stable machine performance
5. Spindle bore 56mm
6. Taiwan SYNTEC controller or optional FANUC
7. Adopting the monolithic conjoined L structure of lathe bed
8. The machine has good performance high precision, low noise, new style, etc

Inquiry

Write a Review

450mm swing over bed CNC lathe –450mm machining length

450mm swing over bed CNC lathe –450mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine, Heavy Duty Flat Bed CNC Lathe Machining Center

Main Specification

Model of lathe		CKS2545A
Max. swing diam. over lathe		450mm
Max. turning length		450mm
Max. turning diameter		250mm
Max. turning diameter on the skateboard		250mm
The forms and codes of spindle end		A2-5
Spindle head collect taper		Diameter 63,1:20
Spindle bore		56mm
Spindle box with single spindle	Spindle speed	35-4000r/min,max.6000
	Spindle speed step number	Stepless
Spindle speed conversion	Automatic input	1r/min Direct instruction/circumferential velocity
	Manually input	10r/min direct instruction / continuous control
	The 30-minute rating	11kw
Main motor output power	Continuous rating	7.5kw
Standard chuck	Diameter of chuck	6”
X axle rapid movement speed		24 m/min
Z axle rapid movement speed		24 m/min
Travel of X axle		135mm(diameter270mm)
Travel of Z axle		460mm
The tailstock sleeve diameter		80mm
Travel of tailstock sleeve		110mm
Spindle collet taper of the tailstock		Cone 4
Max. thrust of tailstock sleeve		8000N
The tailstock travel		400mm
Type of turret		Horizontal 8 working station
Turret transfer time: every workstation/180 degree		0.5/1.2s
Size of the cutting tool	External circular cutting tool	20 x 20 x 125mm
	Boring blade diameter	Diameter Ø25mm,Ø20mm,Ø16mm
The turret could be swapped or not		not
Loading capacity	Pan type	50kg
	Shaft	80kg
Height of the center(Front the bottom of machine)		980mm
Machine dimension(L x W x H)		2865mm X 1647mm X 1677mm
Weight		2300 kg

Precision standard

Unit：mm

Inspection item	China standard	Factory standard
Machining precision	IT8	IT8
Precision of machining work piece roundness	0.007mm	0.006mm
Precision of machining work piece cylindricity	0.015mm/Ф300mm	0.013mm/Ф200mm
Machining work piece surfaceness	Ra3.2μm	Ra2.8μm
Machining work piece planeness	0.02mm / 300mm	0.018mm / 300mm

450mm swing over bed CNC lathe –450mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine, Heavy Duty Flat Bed CNC Lathe Machining Center

Configuration standard accessories

Name	Specification	Brand	Remark
Main motor	7.5 kw servo motor	Made in china
Spindle bearing	P4	Made in china
X -axis ball screw	C3	Made in china
Z- axis ball screw	C3	Made in china
chuck	6” optional	Made in china
Electrical components	all	Made in china

Standard accessories:

No.	Name	Specification	QTY
1	Socket head wrench		1 set
2	Open spanner		1 set
3	Bars wrench		1 set
4	Spindle pull rod		1 set
5	Spindle flange		1 set
6	Long tool post		4 set
7	Positive and negative long tool post		1 set
8	Drilling tool post		2 set
9	Spring collect chuck		2 set
10	Toolbox		1 set

Technical date:

1.	Operating instruction manual	1 set
2.	System appendix specification	1 set
3.	Quality testing report	1 set
4.	Packing list	1 set
