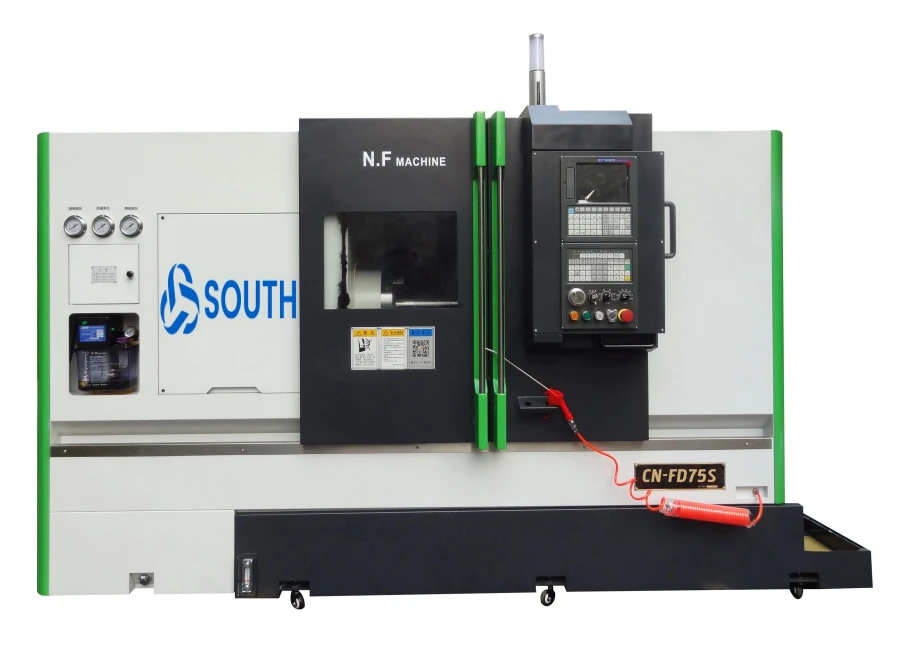

Dynamic and Milling heavy duty CNC lathe CN-FD75S

  • 1.Adopt gearbox automatic shifting structure,one person can operate 2-4 sets,saving cost and improving efficiency;
  • 2. The gearbox and spindle adopt the separated-structure to separate the vibration and temperature rising therefore can improve the machining accuracy;
  • 3.The machine bed adopts the integrated casting technology high strength,high rigidity,guarantee the processing stability;
  • 4. The chip collecting disc adopts the separated back and forth moving structure,and the operation is pleasant and efficient;
  • 5. This machine is suitable for long shaft and large diameter disc parts,which need to be clamped once for turning, drilling and milling,it has the highly flexible process.

    oops...!

    no product data.

    Go to homepage

    Introduction

    1.Adopt gearbox automatic shifting structure,one person can operate 2-4 sets,saving cost and improving efficiency;

    2. The gearbox and spindle adopt the separated-structure to separate the vibration and temperature rising therefore can improve the machining accuracy;

    3.The machine bed adopts the integrated casting technology high strength,high rigidity,guarantee the processing stability;

    4. The chip collecting disc adopts the separated back and forth moving structure,and the operation is pleasant and efficient;

    5. This heavy duty machine is suitable for long shaft and large diameter disc parts,which need to be clamped once for turning, drilling and milling,it has the highly flexible process.



    characteristic

    Dynamic and Milling heavy duty CNC lathe CN-FD75S 4
    01

    The chip collecting disc adopts the separated back and forth moving structure,and the operation is pleasant and efficient.

    Dynamic and Milling heavy duty CNC lathe CN-FD75S 5
    02

     This machine is suitable for long shaft and large diameter disc parts,which need to be clamped once for turning, drilling and milling,it has the highly flexible process.



    Main Specification

    Model of lathe CN-FD75S



    Main specifications

    Max. swing diam. over bed 630mm
    Man-machine loading and unloading height 1080mm





    Processing range






    Max.  length of processing

    Claw-round knife 885mm,claw-90° power head 855mm.                Claw-round knife 1385mm,claw-90° power head 1355mm

    Diameter of the bar

    74mm

    Max diameter(Disks)

    380mm

    Processing maximum diameter(Shaft parts)

    500mm





    Accuracy

    Working accuracy

    IT5-IT6

    Processing roughness



    Ra1.25um

    X/Z axle repeat position accuracy

    ±0.0025/±0.005

    X/Z axle position accuracy

    ±0.005/±0.008









    Spindle






     Spindle nose end type A2-8
    Spindle hole diameter 86mm



    Spindle speed

    Automatic three gear  31-2200r/min

    H:128-2200r/min

    M:69-744r/min

    L:31-647r/min

    Independent spindle 30-3000r/min

    Spindle motor power

    11/7.5KW; 15/11KW

    Card plate specifications

    Hydraulic 10 inch three claws







    Feed shaft performance

    X axle rapid movement speed 16m/min
    Z axle rapid movement speed 20m/min
    X axle servo motor 15N.m
    Z axle servo motor 15N.m
    Y axle motor 10N.m-11.5N.m
    A axle motor 3.2N.m
    S axle motor
    11.5N.m-12N.m
    Travel of X axle 280mm
    Travel of Z axle 1020mm/1520mm







    Tail stock performance




    Tailstock sleeve specifications MT5
    Travel of tail stock sleeve 150mm(Fluid drive)
    Max.transverse movement 90mm
    Tailstock moving method Saddle seat dirve









    Turret performance








    Type of the turret

    Horizontal power 12 station(with Y axis)

    Max speed of turret 5000m/min

    Y-axis travel

    ±50mm

    Size of the round knife

    25 x 25 mm

    Boring bar diameter

    Ø40



    Other

    Bed body structure form

    Integrated casting 45°

    Lubrication form



    Voluntarily

    Machine dimension(L x  W x H)



    1000mm

    3344mm x 1625mm x 1860mm

    1500mm

    3844mm x 1625mm x 1860mm

    Weight 4700kg,  5500kg
