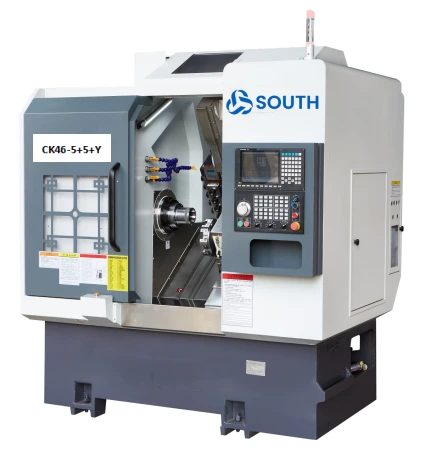

5+5 power head and 4-axis CNC machining center CK46-5+5+Y

1.Swing over lathe diameter 500mm

2.Max.turning length 320mm.

3.Max.bar material diameter 45mm

4.Spindle model A2-5

5.Spindle bore 56mm

6.Max.spindle speed 4200r/min

    oops...!

    no product data.

    Go to homepage

    Introduction

    ● This machine tool uses a 5+5 power head with a wheelbase of 65mm,which can process more complex parts with higher processing efficiency.

    ● This machine tool has high dimensional accuracy in milling processing,short tool changing time, longer service life,saving processing time and processing costs.

    ● Equipped with a cpmputer automatic lubrication system for forced lubrication,Ensure long-term working stability of machine tools.

    ●Taiwan SYNTEC NC controller:SYNTEC 22 TA , crystal panel 10.4 inches.

    5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 4



    characteristic

    5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 5
    01
    Fully automatic feeder (servo feeding)
    5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 6
    02
    Automatic material receiving hand + conveyor belt


    Model of lathe CK46-5+5+Y
     Machining capacity Max. swing diam. over lathe Ø800mm
    Max. turning length 320mm
    Maximum bar material diameter Ø45
    Spindle Spindle model A2-5
    Spindle bore diameter Ø56 mm
    Max. Spindle speed max.4200r/min
    Setting spindle speed 1-3500 rpm
    X/Z/Y axis feeding X-axis maximum travel 800 mm
    Z-axis maximum travel 470mm
    Y-axis maximum travel 310mm
    X/Z/Y axis max. fast travel speed 24 m/min(setting 18)/24(setting 18)/15(setting 8)m/min
    X/Z/Y axis C3 grade screw 32/32/25mm
    X/Z/Y axis roller P-level linear rail,extended slider Ball 35/ball 35/roller 25mm,lengt hen the skateboard,increase the load and enhance rigidity
    Turret tools Eight-station turret 8 stations,it can be equipped with a double-hole,tool holder,and 12 stations are optional.
    Power head Power head tool support form ER25
    Max.speed of power head 6000(setting 4000),products that can be commonly processed at 4000rpm
    Max. installed drilling and milling head diameter Ø16mm
    The distance between the power head shaft and the shaft 65mm
     Motor Main motor power SYNTEC 7.5kw
    Spindle motor torque Rated 47.75 N.M
    X/Z axis motor power SYNTEC2.4KW or YASKAWAI1.8KW
    X/Z axis motor torque SYNTEC 11.5 N.M or YASKAWAI 11.5 N.M
    X/Y axis power head motor power/torque  SYNTEC2.4KW/11.5 N.M
    Power head motor max. speed 5000r/min
    Other items Spindle positioning brake device Hydraulic
    Slanting bed degree 35 degrees
    Blade plate length x width 700 x 290 mm
    Machine L x W x H 2200 x1580 x 2000 mm
    Machine net weight 34300 kg
    Total horse 15 KW
    average power consumption 2kw/h

    Machine precision specification

    Main inspection items Detection method factory standard
    Spindle radial run-out Detect run-out of outer cone 0.0025
    X-axis repeat position Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
    Z-axis repeat position Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
    Y-axis repeat position
    Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.004
    Power head clamping run-out Cone beat 0.004
    If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of South Factory.

    Configuration standard accessories

    Name Specification Brand
    NC controller SYNTEC 22TA ,crystal panel10.4inches Taiwan  SYNTEC
    X/Y axis servo driver Standard setting SYNTEC2.4KW (optional:YASKAWAI 1.8kw),X-axis motor with brake China
    Spindle Standard, Taiwan POSA Taiwan POSA
    Spindle brake The main shafft is equipped with a hydraulic 4-cylinder disc brake to increase braking strength. Made in China
    Fully closed loop indexing The spindle is equipped with Taiwan SYNTEC magnetic ring encoder Taiwan SYNTEC
    Spindle motor SYNTEC 7.5kw,servo motor Taiwan
    X/Y-axis screw C3 grade futures grinding screw with double nut. One end is blind threaded. Taiwan PMI or Hiwin
    X/Y-axis linear guild way Roller P-level linear rail Taiwan HIWIN OR PMI
    One piece casting base The bed and base are all made of resin sand and cast in one piece, without adding cement. The internal stress removal method of the cast iron is completely vibrated/fully annealed/insulated/aging, and then placed for a period of time after finishing and then tested to pass the test. Made in china
    Lubrication Japan Valley brand lubricating oil pump (joint venture) Made in China Foshan
    Hydraulic unit Guangzhou ZhanPing hydraulic station.The user should prepare his own 46#original great wall anti-wear hydraulic oil46#/30kg. Made in China
    Cooling pump Water pump power 370W high pressure water pump. Spindle wall panel ejection. Made in China
    Machine metal cover The outer cover is made of national standard thick 2.0-0.003mm cold plate Made in China
    Processing blow valve Install 2 Air TAC solenoid valves to prepare for air blowing. The system controls the air blowing to realize the processing air blowing function. Taiwan
    Electrical distribution box cooling Use copper tubes (durable) to install environmentally friendly heat transfer media heat exchanges to cool down the circulation in the electrical box and keep it clean. Made in China
    Electrical components Schneider Electrical components Made in China
    power cable 5 meters cable, high temperature resistance, wear resistance and corrosion resistance Made in China

    Standard Accessories with machine

    Item Name Specification Quantity Remark
    1 Spring collet Standard 1 pcs installed on accessories or on the end face of machine tool spindle
    2 Enamel tool holder Ø25 1PCS 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 7
    3 Enamel tool holder Ø20 2PCS 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 8
    4 Tool handle combination pressing block   8 pcs Mounted in accessory box or on turret
    5 Machine mattress iron 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 9 4 sets Packed in accessory box
    6 Foot switch 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 10 1PCS Pacied in accessory box
    7 Power head EE25 cOLLET 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 11 1 set Mounted in accessory box or on turret
    8 Power head wrench 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 125+5 power head and 4-axis  CNC machining center CK46-5+5+Y 13 2 sets Choose one according to the power head
    9 Allen wrench 5+5 power head and 4-axis  CNC machining center CK46-5+5+Y 14 1 set Packed in accessory box
    10 Internal support chuck flange   1 pcs 1 pcs for every two machines.

    Technical data with the machine

    item name specification quantity remark
    1 Machine tool maintenance and repair manual Including M code, G code, circuit diagram 1set
    2 SYNTEC User Manual Udisk 1 pcs in accessories box
    3 Turret user manual   1set in accessories box
    4 Servo driver user manual   1set in accessories box
