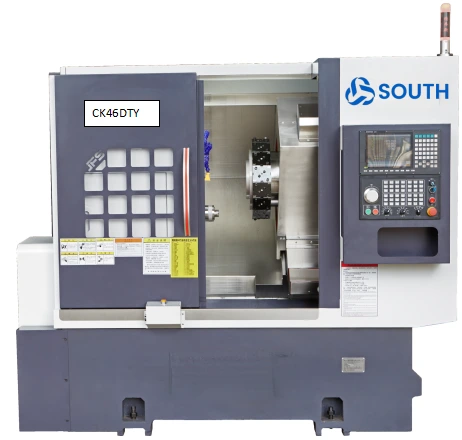

16-Station direct drive turret turning and milling compound machine tool CK46DTY

1.Swing over lathe diameter 600mm.

2.Max. turning length 400mm.

3.Maximum bar material diameter 45mm

4.Spindle model A2-5.

5.Spindle bore 56mm.

6.Max.spindle speed 4200r/min.

    oops...!

    no product data.

    Go to homepage

    OiMIntroduction

    ● This machine tool adopts a direct drive turret with a built-in 8.5KW power motor, a maximum speed of 8000r/min, and no bevel gear transmission mechanism, which greatly reduces the impact of thermal variables on processing dimensions.

    ● Equipped with 16 or 12 stations BMT55 power turret, each station can be installed living tools

    ●Can achieve four axis linkage function.

    16-Station direct drive turret turning and milling compound machine tool CK46DTY 4





    characteristic
    16-Station direct drive turret turning and milling compound machine tool CK46DTY 5
    01
    Fully automatic feeder (servo feeding)
    16-Station direct drive turret turning and milling compound machine tool CK46DTY 6
    02
    Automatic material receiving hand + conveyor belt
    16-Station direct drive turret turning and milling compound machine tool CK46DTY 7
    03
    Chain plate chip conveyor.

    Main Specification

    Model of lathe CK46DTY
     Machining capacity Max. swing diam. over lathe Ø600mm
    Max. turning length 400mm
    Maximum bar material diameter Ø45
    Spindle Spindle model A2-5
    Spindle bore diameter Ø56 mm
    Max. Spindle speed max.4200r/min
    Setting spindle speed 1-3500 rpm
    X/Z/Y axis feeding X-axis maximum travel

    Without tailstock: 175+80 (i.e. 90 degrees, the power head passes 80 degrees through the spindle center)

    Z-axis maximum travel 400mm(optional 600mm)
    Y-axis maximum travel ±60 mm
    X/Z/Y axis max. fast travel speed 24/24/15 m/min
    X/Z/Y axis C3 grade screw 32/32/32mm
    X axis Roller P4-level linear rail 35/35/35 mm Lengthen the slider, increase the load and enhance rigidity
    Turret tools

    Power turret model ( direct driving type )

    BMT55/45
    Power turret model (direct driving type) ER25/32/45
    Static Tools dimension 25x25 mm
    Boring tools Ø32/40
     Motor Main motor power SYNTEC 7.5kw
    Spindle motor torque Rated 47 N.M
    Maximum speed of turret power motor 6000( settubg 4500)rmin
    X/Y/Z axis motor power SYNTEC2.4KW or YASKAWAI1.8KW
     Maximum speed of power motor of power tool turret  8000 rpm (0° power head8000r,90° power head6500r)
    Turret tool change motor power/torque  SYNTEC1.0KW/3.1 N.M
    Spindle positioning brake device Hydraulic
    Other items Slanting bed degree 35 degrees
    Machine L x W x H 2200 x1500 x 1900 mm
    Machine net weight 3900 kg
    Total horse 15 KW
    average power consumption 3kw/h

    Machine precision specification

    Main inspection items Detection method factory standard
    Spindle radial run-out Detect run-out of outer cone 0.0025
    X-axis repeat position Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
    Z-axis repeat position Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
    Y-axis repeat position
    Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning.
    0.003
    Power head clamping run-out Cone beat 0.004
    If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of South Factory.

    Configuration standard accessories

    Name Specification Brand
    NC controller SYNTEC 22TB ,crystal panel10.4inches Taiwan  SYNTEC
    X/Y /Z axis servo driver Standard setting SYNTEC2.4KW (optional:YASKAWAI 1.8kw),X-axis motor with brake China
    Power head motor  Standard: SYSKAWAL motor  China
    X/Y/Z-axis screw C3 grade futures grinding screw with double nut. One end is blind threaded. Taiwan PMI or Hiwin
    X/Y/Z-axis linear guild way Roller P-level linear rail Taiwan HIWIN OR PMI
    Spindle Standard, Taiwan POSA Taiwan POSA
    Spindle motor SYNTEC  Taiwan SYNTEC
    Sixteen-station direct drive turret JFS direct drive turret: built-in direct drive 8000 rpm 8.5KW electric spindle, power gearless module transmission Made in China
    Powered turret tool Hydraulic brake Made in China
    Fully closed loop indexing  The spindle is equipped with Taiwan SYNTEC  magnetic ring encoder  Taiwan SYNTEC
    Rotary cylinder

    High speed rotary cylinder

    Taiwan
    One piece casting base The bed and base are all made of resin sand and cast in one piece, without adding cement. The internal stress removal method of the cast iron is completely vibrated/fully annealed/insulated/aging, and then placed for a period of time after finishing and then tested to pass the test. Made in china
    Lubrication Japan Valley brand lubricating oil pump (joint venture) Made in China Foshan
    Hydraulic unit Guangzhou ZhanPing hydraulic station Made in China
    Machine metal cover The outer cover is made of national standard thick 2mm cold plate Made in China
    Processing blow valve Install 2 Air TAC solenoid valves to prepare for air blowing. The system controls the air blowing to realize the processing air blowing function. Taiwan
    Electrical distribution box cooling Use copper tubes (durable) to install environmentally friendly heat transfer media heat exchanges to cool down the circulation in the electrical box and keep it clean. Made in China
    Electrical components Schneider Electrical components Made in China
     Oil cooler  Customized constant temperature oil cooler  Made in China
     Oil mist separator  Separate part of the gas and liquid (or oil) in the mist  JFS
    power cable 5 meters cable, high temperature resistance, wear resistance and corrosion resistance Made in China

    Standard Accessories with machine

    Item Name Specification Quantity Remark
    1 Enamel tool holder Ø25/32/45 3PCS 16-Station direct drive turret turning and milling compound machine tool CK46DTY 8
    2

    Outside diameter square tool holder (including pressure block)

    25 x 25 4 pcs 16-Station direct drive turret turning and milling compound machine tool CK46DTY 9
    3 Square end tool holder ( including pressure block) 25 x 25 1 pcs 16-Station direct drive turret turning and milling compound machine tool CK46DTY 10
    4  0° power head tool holder  Standard maximum speed4000r/min  1 pcs 16-Station direct drive turret turning and milling compound machine tool CK46DTY 11
     5  90° power head tool holder  Standard maximum speed4000r/min  1pcs 16-Station direct drive turret turning and milling compound machine tool CK46DTY 12
     6  0° power head tool holder  High quality surface maximum speed6000r/min  1pcs 16-Station direct drive turret turning and milling compound machine tool CK46DTY 13
     7  90° power head tool holder    1pcs
    8 Machine mattress iron 16-Station direct drive turret turning and milling compound machine tool CK46DTY 14 4 sets
    9 Foot switch 16-Station direct drive turret turning and milling compound machine tool CK46DTY 15 1PCS
    10

    Power head ER collet

     16-Station direct drive turret turning and milling compound machine tool CK46DTY 16  1 set
    11

    Power head wrench

     16-Station direct drive turret turning and milling compound machine tool CK46DTY 1716-Station direct drive turret turning and milling compound machine tool CK46DTY 18  2pcs

    Choose one according to the power head

    12 Allen wrench 16-Station direct drive turret turning and milling compound machine tool CK46DTY 19 1 set

    Technical data with the machine

    item name specification quantity remark
    1

    Machine tool maintenance and repair manual

    Including M code, G code, circuit diagram 1set
    2 SYNTEC User Manual Udisk 1 pcs in accessories box
    3 Turret user manual   1set in accessories box
    4 Servo driver user manual   1set in accessories box
