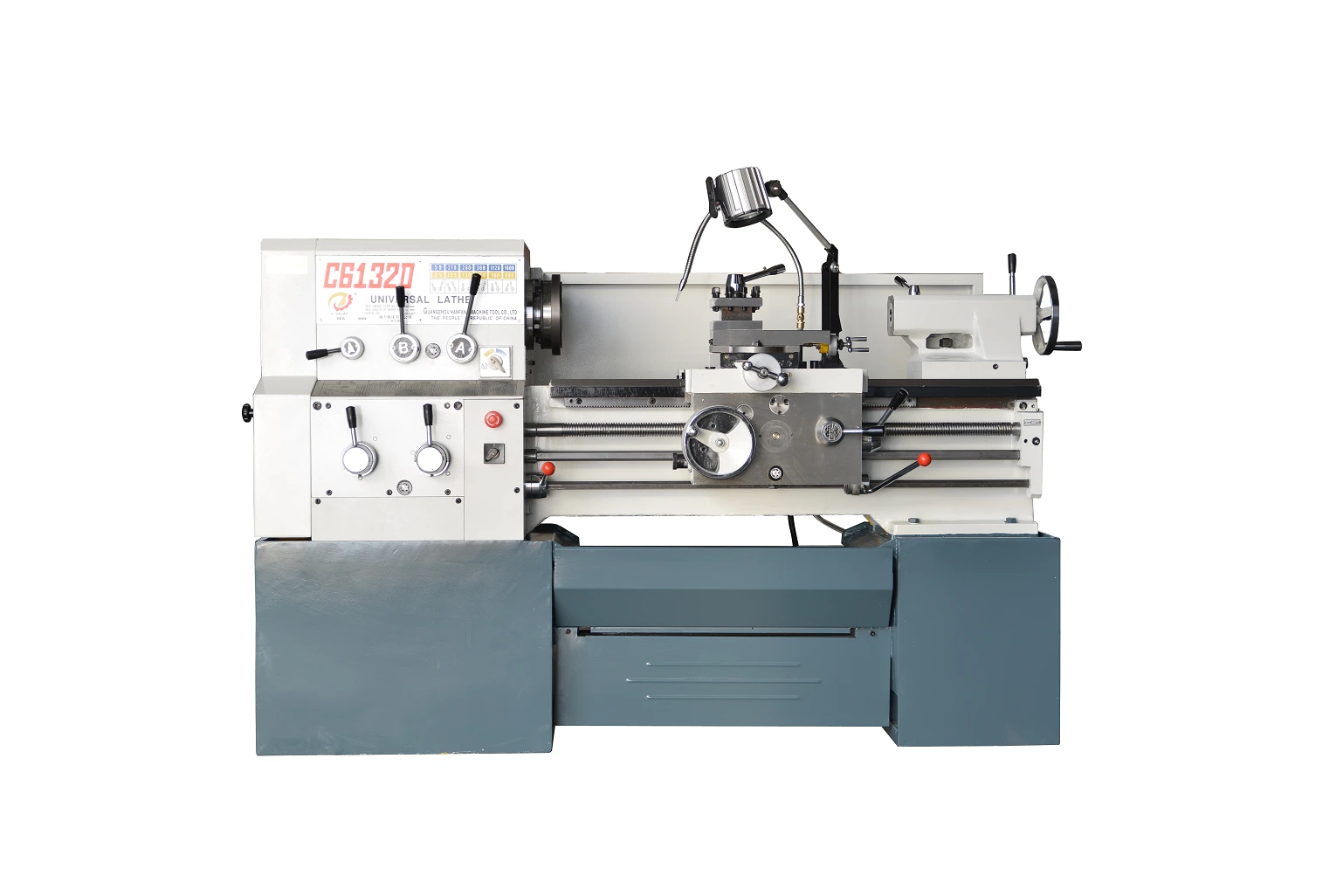

Manual lathe C6132D/6232D

1 .Manual carrier lathe-spindle trough hole 48mm diameter.

2. Swinging over bed 350mm

3 .Max.length of machining work piece 750mm,1000mm, 1500mm

4. Max.Z-axis travel of tools supporter 630mm,880mm, 1380mm

5. Max.X-axis travel of tools supporter 220mm

6 .Range of spindle speed 25-1600r/min 12 grade

7. The guild way in bed for harness over HRC52 degrees,it is machining finished by high precision CNC grinding machine, the base and machine bed is high precision finished machining.

8. The spindle case and machine bed and so on is finished machining by Spain CNC machining center,it keeps the high precision.

9. The belt gear is finished machining by CNC gear grinding machine and test by noise.lower noise and high precision for the gear.

Inquiry

Write a Review

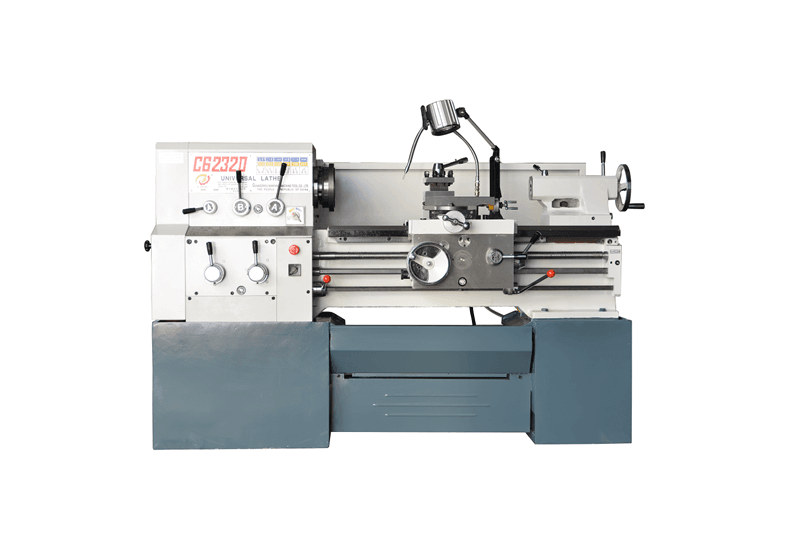

Main performance（C6232D-1000）
1. Swing over bed diameter 350mm
2. Max. machining length up to 1000mm
3. Max. swing over bed diameter 520mm on saddle place
4. Strong performance for the casting base
5. Distance between the hard rails up 320mm
6. Machining precision is IT8
7. Machining work piece roundness is not exceeding 0.01mm,
8. Machining work piece plainness is not exceeding 0.013mm/Ø200mm
9. Surfaceness(Ra) is not exceeding 2.8um
10. Machining diameter consistency is not exceeding 0.018mm/300mm
11. The machine has high precision, low noise, good rigidity, new style, etc

350mm swing over bed saddle manual lathe–1000mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine, Heavy Duty Flat Bed CNC Lathe Machining Center

Main Specification

Model		C6232D-1000
	Swinging over bed	350mm
	Max length of machining work piece	1000mm
	Width of guide on bed	320mm
	Max machining diameter on tool carrier	190mm
	Max. Z-axis travel of tools supporter	880mm
	Max. X-axis travel of tools supporter	220mm
	Bore through material diameter	Ø45mm
	Max. swinging diameter on saddle	520mm
	Max. machining Length with transition plate	200mm
Spindle	Spindle Center height	175mm
	Spindle connection	C6
	Spindle bore diameter	Ø46mm
	Taper of spindle bore	MT6
	Range of spindle speed	25-1600r/min 12 grades
Tailstock	Taper of top sleeve	MT4
	Tail stock sleeve max travel	130mm
	Tail stock horizontal max travel	±10mm
Screw threads	Threads metric pitches	0.45-20mm/r 30 models
	Threads inch pitches	80-1-3/4n/1” 35 models
	Threads modulo pitches	0.25-10mm 25 models
	Threads diametral pitches	160-3-1/2 DP 30 models
	Spindle motor model	YD132M-8/4-B5 3/4.5 kw
	Main drive belt model & spec	4-A-1900mm, 4-A-2000mm
Motor	Main motor	3 / 4.5 KW
	Main motor speed 50Hz	1500 r/min
	Cooler pump motor	90W
Overall dimension(L x W x H)	1000 mm	2200mmx950mmx1200mm
Net weight		1450 kg

Precision standard

Unit：mm

Inspection item	China standard	Factory standard
Machining precision	IT8	IT8
Precision of machining work piece roundness	0.007mm	0.006mm
Precision of machining work piece cylindricity	0.015mm/Ф300mm	0.013mm/Ф200mm
Machining work piece surfaceness	Ra3.2μm	Ra2.8μm
Machining work piece planeness	0.02mm / 300mm	0.018mm / 300mm

350mm swing over bed saddle manual lathe–1000mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine, Heavy Duty Flat Bed CNC Lathe Machining Center

Configuration standard accessories

Name	Specification	Brand	Remark
Main motor	3 KW Three-phase asynchronous motor	Made in china
Spindle bearing	Precision grade5	Made in china
X -axis ball screw		Made in china
Z- axis ball screw		Made in china
Manual chuck	8 inches(3 Jaws chuck 200mm)	Made in china
Electrical components		Made in china

Standard accessories:

No.	Name	Specification	QTY
1	A set of lighting		1 set
2	Cooling system	32A-10001	1 set
3	Adjustable mount	3#	6 set
4	3 Jaws chuck	KZ200	1 set
5	3 Jaws chuck transit plate	32D-09701	1 set
6	Tailstock	D114	1 set
7	Tailstock quill	P326*4	1 set
8	Double head spanner	12×14 S91－1	1 set
9	Double head spanner	17×19 S91－1	1 set
10	Double head spanner	12×24 S91－1	1 set
11	Single head spanner	30 S91-2	1 set
12	Square box spanner	12 S92－3	1 set
13	Slotted nut single-end spanner	38-42 S93－1	1 set
14	Slotted nut single-end spanner	45-52 S93－1	1 set
15	Slotted nut single-end spanner	100-110 S93－1	1 set
16	Slotted nut single-end spanner	115-130 S93－1	1 set
17	inner hexagon spanner	5 S91－7	1 set
18	inner hexagon spanner	6 S91－7	1 set
19	inner hexagon spanner	8 S91－7	1 set
20	inner hexagon spanner	10 S91－7	1 set
21	Screwdriver	150	1 set
22	Oil gun	YQ100	1 set
23	Foot bolt	M16×400；GB799－76	8 set
24	Nut	M16；GB52－76	8 set
25	Washer	16；GB97－76	8 set
26	Triangle belt	32A a model 1900	4 set
27	Brake block	32A-01041	2 set
29	Brake wire	Ø2.8*1250	1 set

Technical date:

1.	Machine user manual	1 set
2.	Machine certification	1 set
3.	Packing list	1 set
