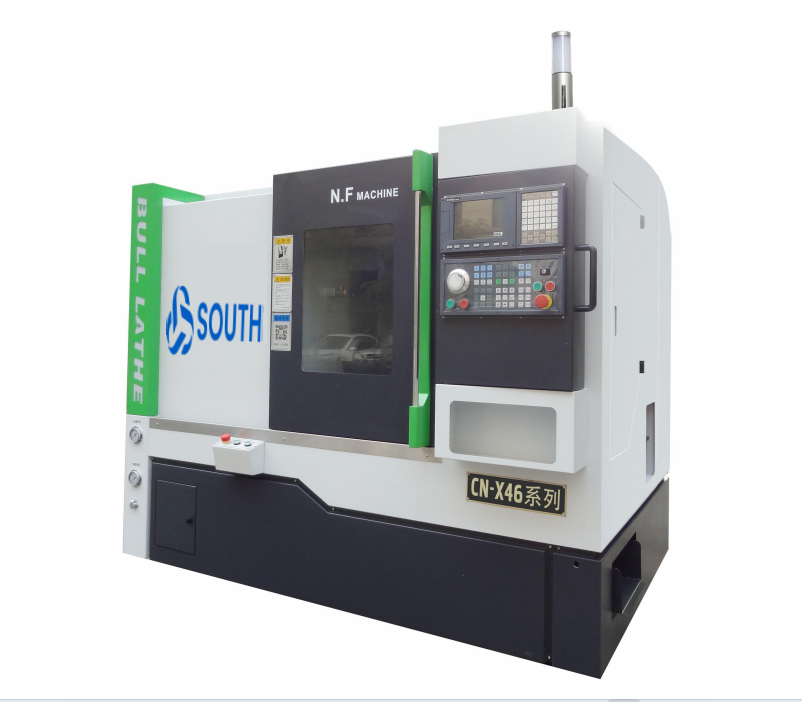

High precision light duty lathe CN-X46DFY,CN-X52DFY,CN-X66DFY 1

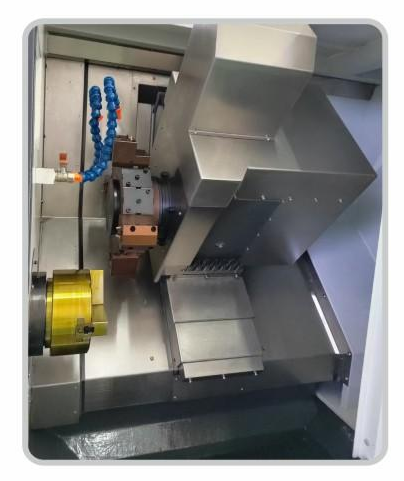

High precision light duty lathe CN-X46DFY,CN-X52DFY,CN-X66DFY 2
High precision light duty lathe CN-X46DFY,CN-X52DFY,CN-X66DFY 1
High precision light duty lathe CN-X46DFY,CN-X52DFY,CN-X66DFY 2

High precision light duty lathe CN-X46DFY,CN-X52DFY,CN-X66DFY

Main performance

1.Max. Turning diameter on the bed: 630mm

2.Spindle speed range: 35-4000r/min

3. Main motor output power: 11KW

4.X/Z /Y/S motor torque: 15/10/10/10N.m

    oops...!

    no product data.

    Go to homepage

    Introduction

    Adopt the structure of Y-axis power cutter tower,with a wide machining range(the maximum machining diameter can be up to 320mm;greatly improve the process flexibility;high power head speed(up to 4,000 rotations in a continuous 24h),greatly improve the processing efficiency of the unit output;

    The base of machine tool is optimized by finite element analysis and has good rigidity

    The X/Z axis adopts pre-tensile structure,which reduces the influence of thermal deformation on the precision of X/Z axis and improves the rigidity of X/Z axis.

    Chip removal mode can be side discharging or back discharging,which has the strong adaptability to workshop layout;



    This machine is especially suitable for processing shaft,pipe and disc parts,with the advantages of fast speed,high precision,good finish,and stability of the size consistency,etc.

    characteristic

    Max. Turning diameter on the bed:

    Ø630mm

    Max. Tool speed:

    4500r/min

    Max. Work-piece length:

    200mm

    Spindle speed range:

    35-4000r/min

    Main Specification
    Model of lathe CN-X46DFY CN-X52DFY    CN-X66DFY
    Main specifications

    Max. Turning diameter on the bed

    Ø630mm





    Processing range






    Max. Turning length

                        230mm (round knife relative claw)

    200mm( 90°power head to jaw)

    Max. Turning diameter

    320mm

    Bar diameter

    45mm

    51mm

    65mm

    Accuracy

    X/Z axis repeat position accuracy

    ±0.0025/±0.005

    X/Z axis position accuracy

    ±0.005/±0.01











    The spindle performance





















    Spindle speed range

    40-4000r/min

    The type and codes of spindle end

     A2-5

    A2-6

    Taper of front hole of spindle

     MT6

     Ø68/1:20

     Ø83/1:20

    Spindle hole diameter

     56mm

     62mm

     79mm

    Single spindle headstock

    Spindle speed conversion

    35-4000r/min

    Spindle speed series

    Stepless

    Spindle speed conversion

    Automatic input

    1r/min direct instruction

    Circumferential velocity

    Manual input

     10r/min direct instruction

    Continuous control

    The motor performance

    Main motor output power

    The 30-minutes rating

    11KW

    7.5KW

    Continuous rating

    11KW

    7.5KW

    X/Y/Z/S motor torque 15/10/10/10 N.m

    Feed shaft performance

    Hydrulic chuck 6" 8"
    X axle rapid movement speed 20m/min
    Z axle rapid movement speed 24m/min
    X axle linear guide  30 roller type
    Z axle linear guide  35 roller type
    Travel of X axle 135mm
    Travel of Z axle 460mm









    Turret performance








    Type of the turret

    Horizontal power 12 station(with Y axis)

    Tool rest transposition time:each station/30 including braking time

    0.1 sec
    Max. Tool speed 4500r/min
    Y-axis travel

    ±50

    The turret could be swapped or not   Yes
    Size of the round knife

    20 x 20mm

    Boring bar diameter

    Ø25

    Power tool holder

    BTM(Ø1-16)

    Machine dimension(L x  W x H)

    2447mm x 1702mm x 1751mm
    Weight 3000kg 3100kg 3200kg
