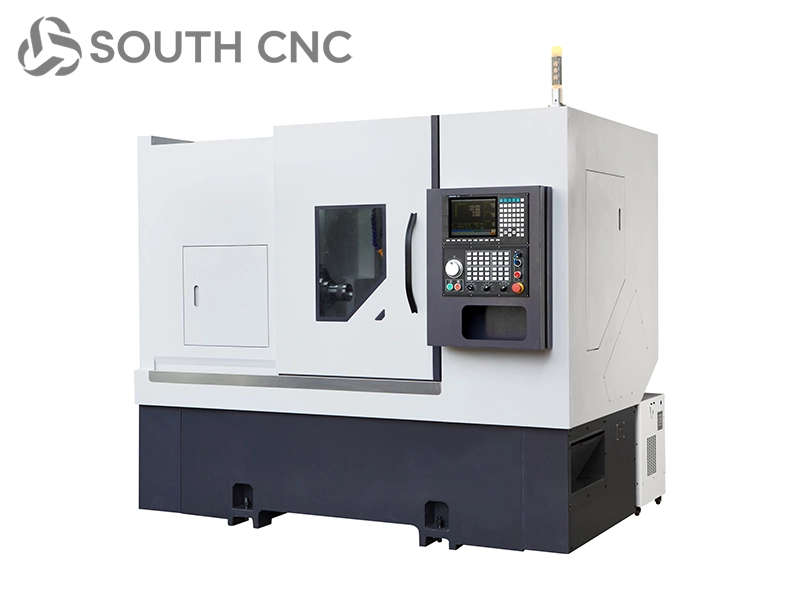

cnc lathe turning center CK46-46DTY
Main performance
◉ Swing over lathe diameter 700mm
◉ Max. turning length 480mm
◉ One piece casting base and slanting bed keep good stable machine performance
◉ Spindle bore 56mm
◉ Direct driving power turret BMT55 with 16 positions
◉ Taiwan SYNTEC controller
◉ Adopting the monolithic conjoined L structure of lathe bed
◉ Can process stainless steel, titanium alloy, high temperature alloy materials.
◉ The machine has good performance high precision, low noise, new style, etc
Product advantages
◉ Equipped with high-rigidity spindle unit for stable cutting performance under heavy load conditions, ensuring consistent accuracy across long production runs. The integrated L-shaped bed structure minimizes vibration and thermal deformation, enhancing overall machining stability. All linear guide ways are sealed and protected against chips and coolant, extending service life and maintaining precision over time. Automatic lubrication system ensures optimal operation of all moving parts, reducing maintenance frequency and downtime. The compact layout maximizes floor space efficiency without sacrificing accessibility for tool changes or workpiece loading.
◉ Radial direction power living tools up to RPM8000 speed
◉ Axis direction power living tools up to RPM6500 speed
Main Specification
|
Model of lathe |
unit |
CK46-46DT virtual Y-axis |
|
|
|
Max. swing diameter over lathe |
mm |
Ø700 |
|
Maximum turning diameter |
mm |
Ø300 |
|
|
Max. turning length |
mm |
480 |
|
|
Main Spindle |
Spindle hydraulic chuck |
inches |
6’’ |
|
Spindle center height from ground |
mm |
1050 |
|
|
Spindle nose |
- |
A2-5 |
|
|
Spindle bore diameter |
mm |
Ø56 |
|
|
Maximum bar material diameter |
mm |
Ø45 |
|
|
Maximum spindle speed |
r/min |
4500 |
|
|
Spindle motor power/torque |
Kw / N.m |
11KW/72 N.m |
|
|
counter-spindle ( electrical motor spindle) |
counter-spindle hydraulic chuck |
inches |
6’’ |
|
counter-spindle nose |
- |
A2-5 |
|
|
counter-spindle maximum set speed |
r/min |
4000 |
|
|
Spindle motor power/torque |
Kw / N.m |
11Kw /75Nm |
|
|
Power turret |
Power turret model |
T |
BMT55-16T |
|
Turret power motor power/torque |
Kw / N.m |
7.5 / 22 or 11kw/4.2km |
|
|
Turret power motor maximum speed |
r/min |
8000 or 6000 |
|
|
X/Z/Y axis feeding |
Maximum fast travel speed |
m/min |
24 |
|
X/Z1/Y-axis motor power/torque |
Kw / N.m |
3.1 / 15 |
|
|
Z2-axis motor power/torque |
Kw / N.m |
2.4 /11.5 |
|
|
X/Z1/Z2/Y-axis C3-grade ball screws |
- |
32/40/32/40 |
|
|
X/Z1/Z2/y-axis roller guide rails |
- |
35/45/45/45 |
|
|
X-axis maximum travel |
mm |
500 |
|
|
Z1-axis maximum travel |
mm |
530 |
|
|
Z2-axis maximum travel |
mm |
500 |
|
|
Virtual Y-axis effective travel |
mm |
+48，-52 |
|
|
Virtual Y-axis 90° driving head offset spindle center |
mm |
-37 |
|
|
virtual Y-axis 90° drive head offset the sub-spindle center |
mm |
-10 |
|
|
Equipment specifications |
Machine net weight |
kg |
5500 |
|
Total machine power |
KW |
30 |
|
|
Machine L x W x H |
mm |
2600x2050x2040 |
|
Optional items
(Standard ● Optional ○)
|
Configuration item |
CK46-46DT virtual Y-axis |
|
|
Main Spindle |
Mechanical spindle |
● |
|
Electric spindle |
○ |
|
|
counter system |
SYNTEC controller |
● |
|
Feed axis |
Yaskawa |
○ |
|
SYNTEC |
● |
|
|
Turret |
Direct drive high-speed power turret |
● |
|
Taiwan Mykun power turret |
○ |
|
|
Germany Brand SAUTER power turret |
○ |
|
|
Clamping |
Back-pull chuck |
● |
|
Chuck |
○ |
|
|
Auxiliary equipment |
Parts collect device |
○ |
|
Feeding device |
○ |
|
|
Chip conveyor |
○ |
|
|
Automated robot |
○ |
|
|
Oil mist separator |
○ |
|
SOUTH lathe is a professional CNC machine manufacturer of turning-milling drilling, tapping and carving combined machine tool.
