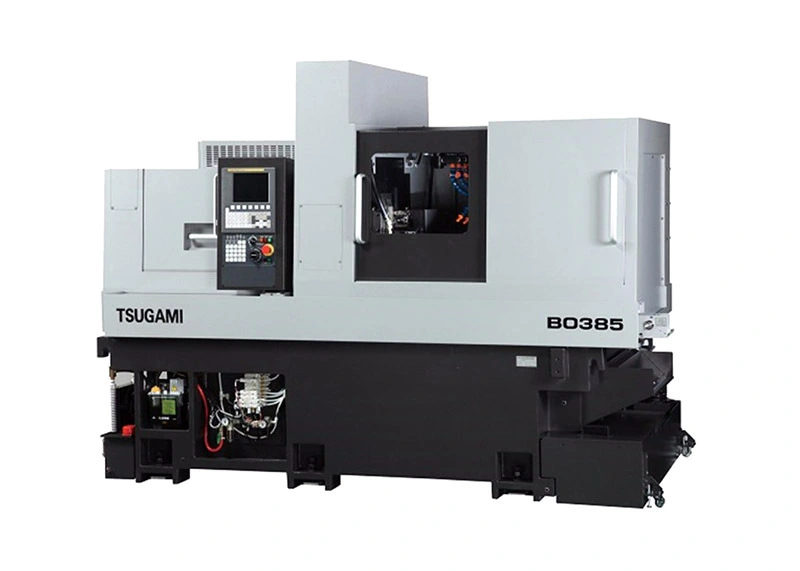

Swiss Type Automatic Lathe With 8 Driving On Back Tool Post, 6 Axis Swiss Lathe

Larger machining capability up to φ38 mm. Standard automatic programming software can optimize the tool path, so that the tool changes time is the shortest

Working bar stock diameter:

Ø8~Ø38mm

Main spindle hole diameter:

Ø43.6mm

Main spindle speed:

200~6,000r/min

Inquiry

Write a Review

Introduction

6-axis Swiss type CNC lathe

● Simultaneous machining including milling such as off-center drilling, off-center tapping, endmilling, or cross drilling on back side is possible by adding Y-axis on the back tool post.Flexibly respond to work pieces requiring complex back machining.Live tools on rear tool post and back tool post are modular type, and optimum tool allocation is possible (option).

● Optional direct-drive rotary guide bushing realizes high speed and accurate machining. Geometrical accuracy, dimensional accuracy and surface roughness are improved in quiet operation even in high speed machining.

IMG_7093 (2)

微信图片_20240308155224

characteristic

Swiss Type Automatic Lathe With 8 Driving On Back Tool Post, 6 Axis Swiss Lathe 6

Larger machining capability up to φ38 mm. Standard automatic programming software can optimize the tool path, so that the tool changes time is the shortest

Swiss Type Automatic Lathe With 8 Driving On Back Tool Post, 6 Axis Swiss Lathe 7

Increasing front milling capability by the optional rotary tool beside the back spindle. For standard specification, deep hole drilling up to 100 mm can be realized by mounting front drilling holder.

Swiss Type Automatic Lathe With 8 Driving On Back Tool Post, 6 Axis Swiss Lathe 8

The power head lineup is strong.Various arrangement of live tools,ID holders and turning holders.Total tool storage capacity is 34.

Main Specification

Model		B0386A-III
Machine capacity	Working bar stock diameter	Ø8~Ø38 mm
	Max. Back spindle chucking diameter	Ø38 mm
	Max. machining length	330mm-electrical direct driving guild bush1; 70mm-Guide bush less1
	Main spindle hole diameter	Ø43.6mm
	Back spindle hole diameter	Ø39mm
	Max. Main spindle drilling diameter	Ø13mm
	Max. Main spindle tapping diameter	M12
	Max. Back spindle drilling diameter	Ø12mm
	Max. Back spindle tapping diameter	M12
	Max. Spindle deep drilling diameter	Ø10mm*1
	Max.Tool spindle drilling diameter	Ø10m- front tool post / Rear tool post1/back tool post2
	Max.Tool spindle tapping diameter	M8- front tool post/ Rear tool post1/back tool post2
	Max. Tool spindle slotting cutter dia	Ø45mm（ front tool post)
Mechanical ability	Main spindle speed	200-6,000 r/min(rated speed 5,000r/min)*3
	Back spindle speed	200-7,000r/min(rated speed 5000r/min)*3
	Rotary guide bushing speed	200- 6,000r/min(rated speed 5,000r/min)13
	Tool spindle speed	200 -6,000 r/min(rated speed 4,800r/min)*3
	Total tool storage capacity (Standard / Max. : Option)	34
	Tool size	16x 16mm, 20x 20mm(Cut off only)
	Rapid traverse rate	32 m/min ( X1,Y1,Z1,Y2:24m/min)
	Controlled axis ( linear axes )	6-axis
Motor	Main spindle	7.5/11 kW
	Back spindle	3.7/5.5 kW
	Axis	Y2:0.5kW;X1,Y1,Z1,X2,Z2:0.75kW
	Cross drill	Front tool post: 1.0kW Rear tool post: 1.4kW1 Back tool post: 1.4kW2
	Coolant pump	0.4 KW
	Lubricating oil pump	3W
Power supply and others	Net weight	4,950 kg
	Power source requirement	22.4 kVA
	Compressed air requirement	0.4 MPa or above
	Air discharge rate	100 NL/min
	Coolant tank capacity	190 L
	Length x Width x Height	2,819×1,795×2,050mm

Note *1: Option.

Note *2: Option only for 5-axis machine.

Note *3: When exceeding the normal speed, please do not use it for a long time.

Note *4: When installing the power head on the side of the back shaft, the maximum speed of the back spindle is limited to 8,000r/min.
