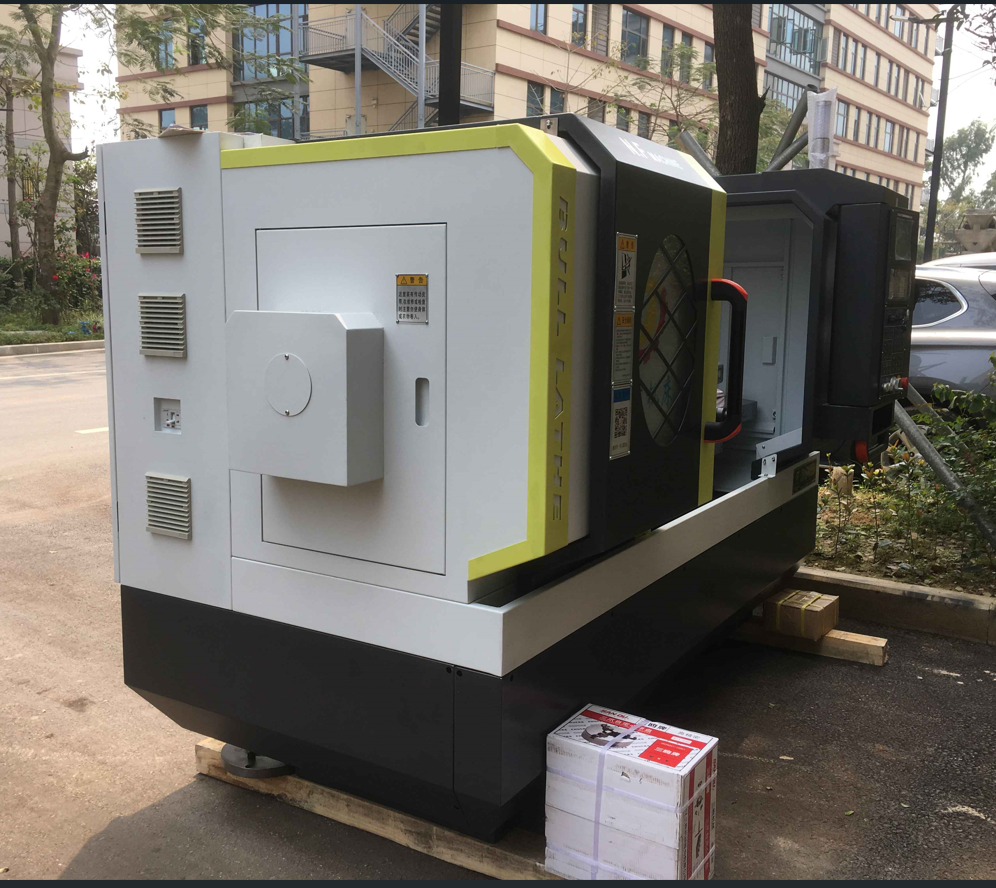

High precision heavy duty CNC lathe CN-SP4065,CN-SP4065A,CN-SP5065

Main performance

1. One piece casting base and bed, keep enough rigidity and accuracy stability.
2. Swing over bed diameter. :420mm,
3. Distance between the lead rail :380mm
4. diameter on the carriage lathe: 270mm
5. Double triangle hard rails
6. Spindle bore 52mm.

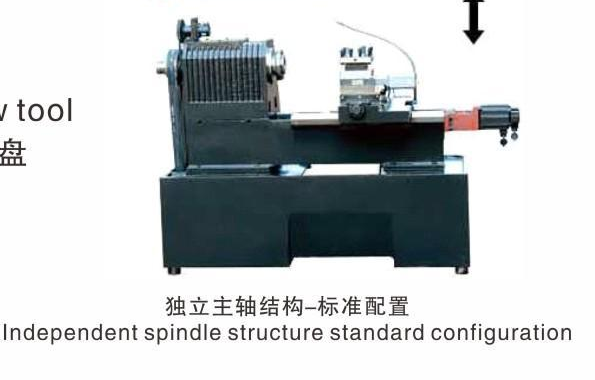

7. Spindle without gear box, motor driving spindle directly.
8. Beijing CBT 5.5kw servo motor
9. Spindle head model: C6
10. Spindle speed 300 —-2000 rpm Automatic transfer.
11. GKS 980TDC system or 980TDI system
12. Servo motor, thread device, automatic lubrication, full cover protection for guild rails and ball screws.
13. Manual 3 jaws chuck of diameter 200mm.

    oops...!

    no product data.

    Go to homepage

    420mm swing over bed CNC lathe –650mm machining length





    Main performance(CN-SP4065):
    1. One piece casting base and bed, keep enough rigidity and accuracy stability.
    2. Swing over bed diameter. :420mm,
    3. Distance between the lead rail :380mm
    4. diameter on the carriage lathe: 270mm
    5. Double triangle hard rails
    6. Spindle bore 52mm.
    7. Spindle without gear box, motor driving spindle directly.
    8. Beijing CBT 5.5kw servo motor
    9. Spindle head model: C6
    10. Spindle speed 300 —-2000 rpm Automatic transfer.
    11. GKS 980TDC system or 980TDI system
    12. Servo motor, thread device, automatic lubrication, full cover protection for guild rails and ball screws.
    13. Manual 3 jaws chuck of diameter 200mm.

    420mm swing over bed CNC lathe –650mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center



    Model Specification CN-SP4065 CN-SP4065A CN-SP5065
    Main spec Swing over bed 420mm 520mm
    Max length of machining work piece 650mm
    Capacity Max machining diameter on bed 400mm
    Max machining diameter on slider 270mm 340mm
    Max length of machine(distance between tailstock to chuck jaws) 650mm
    Spindle Spindle bore diameter 52mm 82mm
    Taper of spindle bore C6 A8
    Range of spindle speed 300 —-2000 r/min Automatic transfer.

    Gear type automatic gear

    L:60-440r/min

    M:112-820r/min

    H:275-2000r/min

    Continuously speed regulation

    300-1600r/min

    Turret Max. travel of turret on Z axis 650mm
    Max. travel of turret on X axis 260mm
    Rapid move speed on Z axis 8000mm/min
    Rapid move speed on X axis 6000mm/min
    Turret positions vertical type 4 positions turret
    Turret size 25×25 mm
    Distance between spindle center to the support surface 25mm
    Motor Main motor power Beijing CBT 5.5 kw servo motor
    Torque of Z axis motor 10 N.m
    Torque of X axis motor 6 N.m
    Cooling pump AYB-20 0.115kw
    Tool holder model LD4
    Outline dimensions 2541.5mm x 1483mm x 2100 mm 2700mm x 1600mm x 1900 mm
    Net weight 2100 kgs 2300kg

    420mm swing over bed CNC lathe –650mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Machine inspection precision

    Inspection item China Standard Factory standard
    Machining precision IT7 IT7
    Machining work piece roundness 0.005mm/φ50mm 0.004mm/φ50mm
    Machining work piece cylindricity 0.03mm / 300mm 0.02mm / 200mm
    Machining work piece planeness 0.025mm/φ300mm 0.015mm/φ200mm
    Machining work piece surfaceness Ra2.5μm Ra2.0μm
    Position precision X-axis 0.03mm X-axis 0.024mm
    Z-axis 0.04mm Z-axis 0.032mm
    Re-position X-axis 0.012mm X-axis 0.01mm
    Z-axis 0.016mm Z-axis 0.012mm

    420mm swing over bed CNC lathe –650mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Machine configuration

    Accessories Name Specifications Model Manufacturer Remark
    CNC GSK980 GSK
    The main motor 5.5 KW spindle servo motor China Beijin CBT
    X-axis motor 10N.m GSK
    Z-axis motor 6N.m GSK
    Spindle bearing P4 China famous Ha-axis bearing
    P4
    Spindle 52mm Southern Machine
    Turret Vertical 4 positions turret auto LD81 HTC
    X-axis ball screw C3 Bot / Han River
    Z-axis ball screw C3 Bot / Han River
    Screw bearings for X-axis ball screw P4 Harbin/Luo axis research
    Screw bearings for Z-axis ball screw P4 Harbin/Luo axis research
    Three-color light Three color flashing ONN
    The key electrical components Relay/Contactor Japan’s Izumi/Switzerland ABB/Schneider

    420mm swing over bed CNC lathe –650mm machining length-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    The standard machine tool accessories:

    No. accessory name Model Specifications Quantity Remark
    1 Adjust the horn and bolts CN-SP4065 1 South brand
    2 Pan tools China brand 1 Three gulls
    3 Screw tools China brand 1 China brand
    4 Chuck Manual jaw chuck diameter Φ200 1 China brand



    Technical data:

    No. Technical data Name Copies Remark
    1 Manual machine tool (machine)—mechanic and electric 1
    2 Certificate 1
    3 Precision inspection 1
    4 Packing List 1
    5 Manual user operation for controller 1
    6 Controller system operation manual 1
    7 Electric diagram 1
