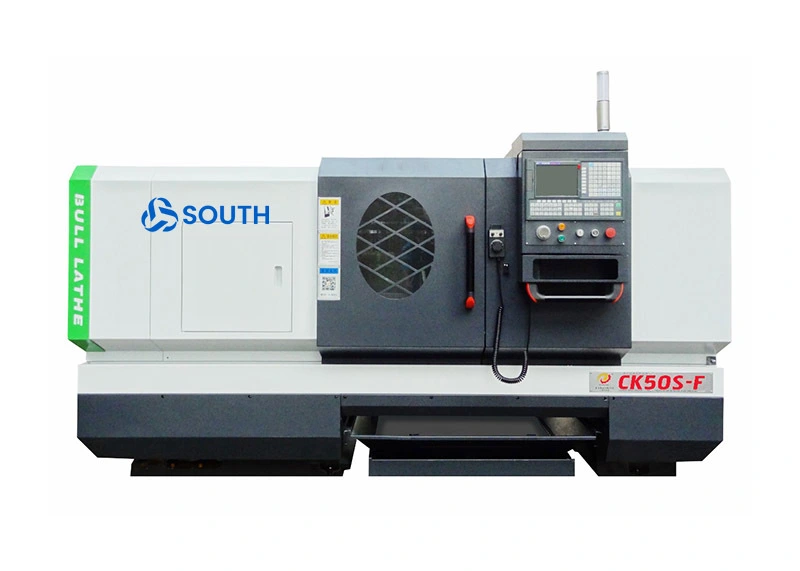

Two coordinates control flat bed heavy duty CNC lathe CK50S-F

This series of CNC machine tools adopt two coordinates control. It has the advantages of good precision stability, strong rigidity, low noise and beautiful appearance. It can be used for automatic turning processing of various parts of the outer circle, inner circle, end face, cone and any cylindrical part as a pillars of any secondary curve .The machine is mainly used in automobiles, machinery, and abrasive industry.

Spindle speed:

H:1600-500r/min; M:760-190r/min; L:220-45r/min

Max.work piece length:

3000mm

Max.swing diam.over lathe:

630 mm

Spindle bore diameter:

86mm

Spindle model:

H:1600-500r/min; M:760-190r/min; L:220-45r/min

Inquiry

Write a Review

Introduction

● This series of CNC machine tools adopt two coordinates control. It has the advantages of good precision stability, strong rigidity, low noise and beautiful appearance. It can be used for automatic turning processing of various parts of the outer circle, inner circle, end face, cone and any cylindrical part as a pillars of any secondary curve .The machine is mainly used in automobiles, machinery, and abrasive industry.

heavy duty cnc lathe machine CK56S-5

矩形导轨

characteristic

Two coordinates control flat bed heavy duty CNC lathe CK50S-F 6

This series of machine tools adopts automatic turret without lifting tool and automatic guide rail lubrication system, which features stable movement, reliable work, high precision, rich functions, convenient operation and wide application range.

Two coordinates control flat bed heavy duty CNC lathe CK50S-F 7

The x-direction guide rail of the machine tool adopts square guide rail structure with the quench treatment to improve the rigidity, stability of the machine tool and the wear-resistance of the guide rail. It is suitable for heavy cutting of disc parts.

Main Specification

Model of lathe			CK50S-F
	Max.swing diam.over lathe		630mm
	Max.length of the work piece		1000mm	1500mm	2000mm	3000mm
Processing range	Max. diameter over the lathe		500mm
	Max. diameter processing on the sliding plate		320mm
	Max.length processing		1000mm	1500mm	2000mm	3000mm
	Bar diameter		84mm
Spindle	Spindle bore		86mm
	Spindle head collect taper		1:20 Ø90mm
	Spindle speed		H:1600-500r/min M:760-190r/min L:220-45r/min
Turret	Max.longitudinal travel of turret		1000mm	1500mm	2000mm	3000mm
	Max.transverse travel of turret		300mm
	Max.Longitudinal feed speed		6000mm/min
	Max.transverse feed speed		3000mm/min
	Station number of the turret		4 or 6 station
	Section size of the turret		25 x 25m㎡
	The dimension from the center line of the spindle to the supporting surface of the turret		25mm
Tailstock	Cone of the tailstock quill		MT5
	Max.stoke of the tailstock quill		150mm
	Max.transverse movement		±15mm
Motor	Spindle servo motor power		7.5/11kw servo motor
	The longitudinal(Z direction)servo motor motor power		1.5kw
	The Lateral (X direction) servo motor power		1.2kw
	Model of cooling pump		AYB-20 0.115KW
	Model of turret		LD4
	Main drive belt		4-B89”
Machine dimension( L x W x H)		1000mm	2731.5mm x 1558mm x 1740mm
		1500mm	3231.5mm x 1558mm x 1740mm
		2000mm	3731.5mm x 1558mm x 1740mm
		3000mm	4731.5mm x 1558mm x 1740mm
Net weight		1000mm	2400kg
		1500mm	2600kg
		2000mm	2900kg
		3000mm	3500kg
