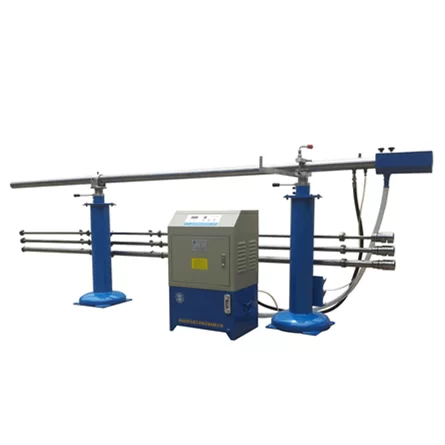

Oil pushing bar feeder HD-ZNX34 1

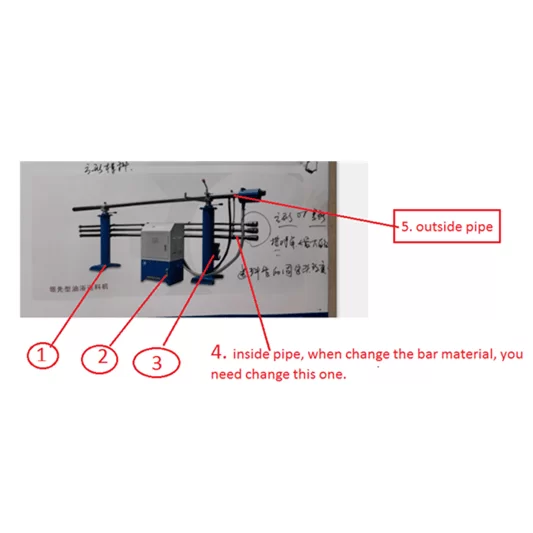

Oil pushing bar feeder HD-ZNX34 2
Oil pushing bar feeder HD-ZNX34 1
Oil pushing bar feeder HD-ZNX34 2

Oil pushing bar feeder HD-ZNX34

Bar feeder HN-ZNX34 specification(HD-ZNX34)
1. Small volume for easy installation
2. Stable performance for the bar feeder
3. 3 types pushing tubes for this model
4. Bar material length less than 2.5 meter
5. Three phase motor 370W easy change
6. Adjustment height can fit to the lathe center height

    oops...!

    no product data.

    Go to homepage


    Bar feeder HN-ZNX34 specification(HD-ZNX34)
    1. Small volume for easy installation
    2. Stable performance for the bar feeder
    3. 3 types pushing tubes for this model
    4. Bar material length less than 2.5 meter
    5. Three phase motor 370W easy change
    6. Adjustment height can fit to the lathe center height

    oil pushing bar feeder-bar material diameter range Ø8-Ø18,  Ø18-Ø26,Ø26-Ø34-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Technical specificationsHD-ZNX34
    Bar material diameterØ6-Ø34 mm
    Bar material lengthLess than 2.5 meters
    3 tube pushing typeØ6-Ø18
    Ø18-Ø26
    Ø26-Ø34
    Spindle height1005mm( can be customized)
    Weight172 KG
    MotorThree-phase asynchronous motor
    Power supply380 V/ AC 50-60HZ
    Magazine capacityOne bar one tube
    Outside pushing tube length3700 mm
    Pushing tube length3700 mm

    oil pushing bar feeder-bar material diameter range Ø8-Ø18,  Ø18-Ø26,Ø26-Ø34-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    oil pushing bar feeder-bar material diameter range Ø8-Ø18,  Ø18-Ø26,Ø26-Ø34-Manual Lathe Machine, Economic CNC Lathe Machine,  Heavy Duty Flat Bed CNC Lathe Machining Center

    Accessories for the machine
    1. Controller electric box
    2. Hydraulic system
    3. Front and back supporter column one set each
    4. Outside mounting one set
