800mm swing over bed CNC lathe –1000mm machining length
Main performance（CJK6180B-1000）:
1. One piece casting base and bed, keep enough rigidity and accuracy stability.
2. Swing over bed diameter. :800mm
3. machining length up to 1000mm
4. Distance between the hard rails :390mm
5. diameter on the carriage lathe: 550mm
6. Spindle bore 82mm.
7. Spindle with gear box, three speed automatic transfer 18—1400rpm
8. Beijing CBT 11kw servo motor.
9. Spindle head model: C8
10. GKS 980TDC system or 980TDI system
11. Servo motor, thread device, automatic lubrication, full cover protection for guild rails and ball screws.
800mm swing over bed CNC lathe –1000mm machining length
Main performance（CJK6180B-1000）:
1. One piece casting base and bed, keep enough rigidity and accuracy stability.
2. Swing over bed diameter. :800mm
3. machining length up to 1000mm
4. Distance between the hard rails :390mm
5. diameter on the carriage lathe: 550mm
6. Spindle bore 82mm.
7. Spindle with gear box, three speed automatic transfer 18—1400rpm
8. Beijing CBT 11kw servo motor.
9. Spindle head model: C8
10. GKS 980TDC system or 980TDI system
11. Servo motor, thread device, automatic lubrication, full cover protection for guild rails and ball screws.
12. Manual 3 jaws chuck of diameter 320mm.
| Model
Specification |
CJK6180B-1000 | |
| Main spec | Swing over bed | 800mm |
| Max length of machining work piece | 1000mm | |
| Capacity | Max machining diameter on bed | 800mm |
| Max machining diameter on slider | 550mm | |
| Max length of machine(distance between tailstock to chuck jaws) | 1000mm | |
| Bar through material diameter | Ø80mm | |
| Spindle center height | 400mm | |
| Center distance between tailstock to spindle | Distance between spindle to tailstock | 1000mm |
| Spindle | Spindle bore diameter | Ø82mm |
| Taper of spindle bore | C8 / 1：20／φ90 | |
| Range of spindle speed | Spindle with gear box, three speed automatic transfer 18—1400rpm | |
| turret | Max. travel of turret on Z axis | 1000mm |
| Max. travel of turret on X axis | 410mm | |
| Rapid move speed on Z axis | 6000mm/min | |
| Rapid move speed on X axis | 3000mm/min | |

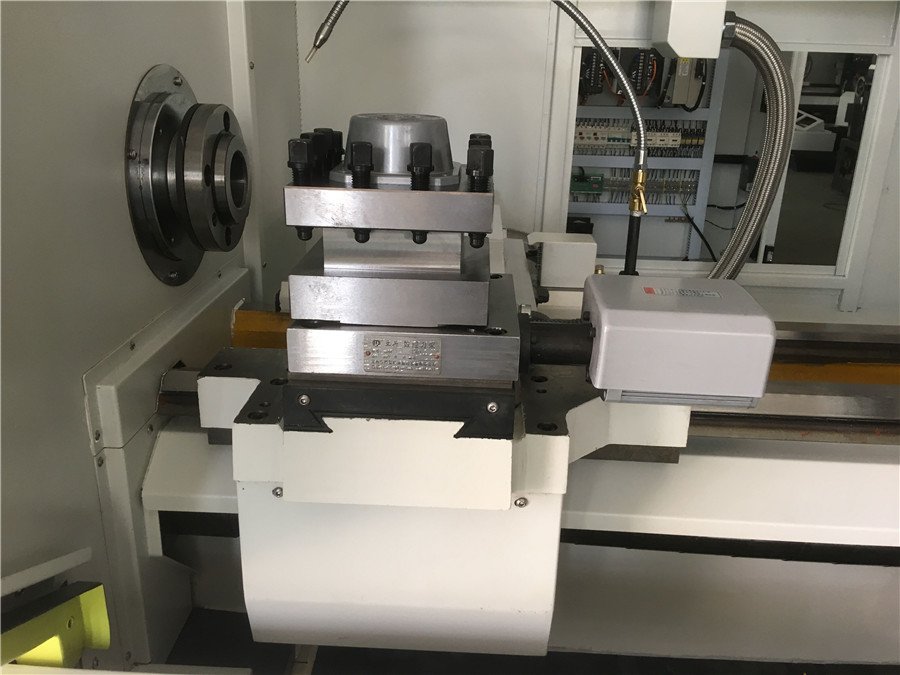

| Turret positions | vertical type 4 or 6 positions turret | |
| Turret size | 25×25 mm | |
| Distance between spindle center to the support surface | 25mm | |
| tailstock | Tailstock tape | MT5 |
| Max. travel of tailstock sleeve on Z-axis | 150mm | |
| Max. travel of tailstock sleeve on X-axis | ±15mm | |
| Motor | Main motor power | Beijing CBT 11KW servo motor |
| Z axis motor | 1.5 kw | |
| Torque of X axis motor | 1.2 kw | |
| Cooling pump | AYB-20 0.115kw | |
| Tool holder model | LD4 | |
| Outline dimensions | 2500mm x 1400mm x 1550 mm | |
| Net weight | 1000mm model | 2800 kgs |
Machine inspection precision
| Inspection item | China Standard | Factory standard |
| Machining precision | IT7 | IT7 |
| Machining work piece roundness | 0.005mm/φ50mm | 0.004mm/φ50mm |
| Machining work piece cylindricity | 0.03mm / 300mm | 0.02mm / 200mm |
| Machining work piece planeness | 0.025mm/φ300mm | 0.015mm/φ200mm |
| Machining work piece surfaceness | Ra2.5μm | Ra2.0μm |
| Position precision | X-axis 0.03mm | X-axis 0.024mm |
| Z-axis 0.04mm | Z-axis 0.032mm | |
| Re-position | X-axis 0.012mm | X-axis 0.01mm |
| Z-axis 0.016mm | Z-axis 0.012mm |
Machine configuration
| Accessories Name | Specifications Model | Manufacturer | Remark |
| CNC | GSK980 | GSK | |
| The main motor | 11 KW spindle servo motor | China Beijing CBT | |
| X-axis motor | 110ST-M06030 | GSK | |
| Z-axis motor | 130ST-M10025 | GSK | |
| Spindle bearing | P4 | China famous Ha-axis bearing | |
| P4 | |||
| Turret | Vertical 4 or 6 positions turret auto LD81 | HTC | |
| X-axis ball screw | C3 | Bot / Han River | |
| Z-axis ball screw | C3 | Bot / Han River | |
| Screw bearings for X-axis ball screw | P4 | Harbin/Luo axis research | |
| Screw bearings for Z-axis ball screw | P4 | Harbin/Luo axis research | |
| Three-color light | Three color flashing | ONN | |
| tailstock | Manual lock tailstock | China South | |
| The key electrical components | Relay/Contactor | Japan’s Izumi/Switzerland ABB/Schneider |
The standard machine tool accessories:
| No. | accessory name | Model Specifications | Quantity | Remark |
| 1 | Adjust the horn and bolts | 1 | South brand | |
| 2 | Pan tools | 1 | Three gulls | |
| 3 | Screw tools | 1 | China brand | |
| 4 | Chuck | Manual jaw chuck diameter Φ320 | 1 | China brand |
Technical data:
| No. | Technical data Name | Copies | Remark |
| 1 | Manual machine tool (machine)—mechanic and electric | 1 | |
| 2 | Certificate | 1 | |
| 3 | Precision inspection | 1 | |
| 4 | Packing List | 1 | |
| 5 | Manual user operation for controller | 1 | |
| 6 | Controller system operation manual | 1 | |
| 7 | Electric diagram | 1 |
