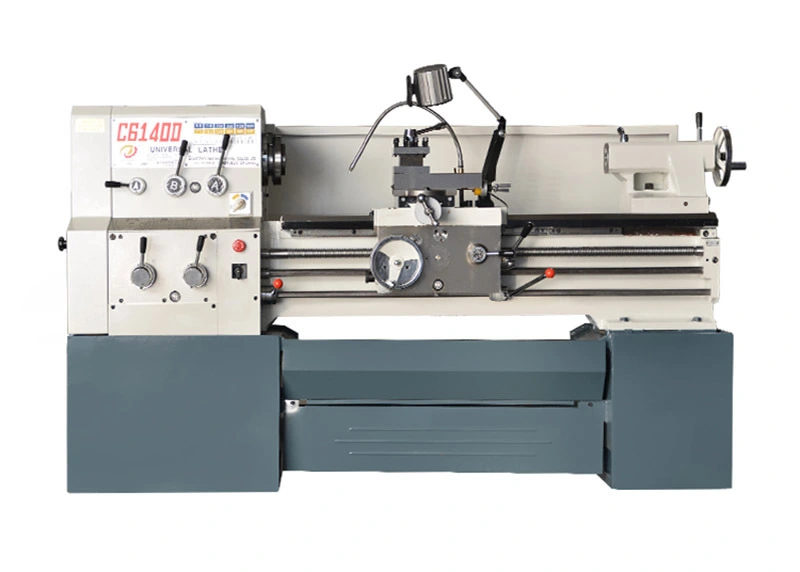

This machine is a light reinforced forming machine. The maximum processing length is 350mm and the through hole diameter is 46mm. It is a horizontal lathe.
Introduction
● Swinging over bed 350mm
● Guild way cover width on bed 320mm
● Max machining diameter on tool carrier 240mm
● Spindle center height 202mm
● Spindle bore diameter 46mm
characteristic
Main Specification
Model Specification | C6140D,C6240D | |
Swinging over bed | 350mm | |
Max length of machining work piece | 750mm, 1000mm,1500mm | |
Guild way cover width on bed | 320m | |
Max machining diameter on tool carrier | 240mm | |
Max. Z-axis travel of tools supporter | 630mm,880mm,1380mm | |
Max. X-axis travel of tools supporter | 220mm | |
Bore through material diameter | 45mm | |
Max. swinging diameter on carrier | 580mm | |
Max. machining Length with transition plate | 200mm | |
Spindle Center height | 202mm | |
Spindle connection | C6 | |
Spindle bore diameter | 46mm | |
Taper of spindle bore | MT6 | |
Range of spindle speed | 25-1600r/min 12 grade | |
Taper of top sleeve | MT4 | |
Tail stock sleeve max travel | 130mm | |
Tail stock horizontal max travel | ±10mm | |
Screw threads | Threads metric pitches | 0.45-20mm/r 30 models |
Threads inch pitches | 80-1-3/4n/1” 35 models | |
Threads modulo pitches | 0.25-10mm 25 models | |
Threads diametral pitches | 160-3-1/2 DP 30 models | |
Spindle motor model | YD132M-8/4-B5 3/4.5 kw | |
Main drive belt model & spec | 4-A-1900mm, 4-A-2000mm | |
Overall dimension(L x W x H) | 750mm model | 1950mm x 950mm x 1250mm |
1000mm model | 2200mm x 950mm x 1250mm | |
1500mm model | 2700mm x 950mm x 1250mm | |
Net weight | 750mm model | 1400kg |
1000mm model | 1500kg | |
1500mm model | 1600kg |
