Gang type cnc lathe machine J52 - 600LU,J76-600LU,J76B-600LU 1

Gang type cnc lathe machine J52 - 600LU,J76-600LU,J76B-600LU 2

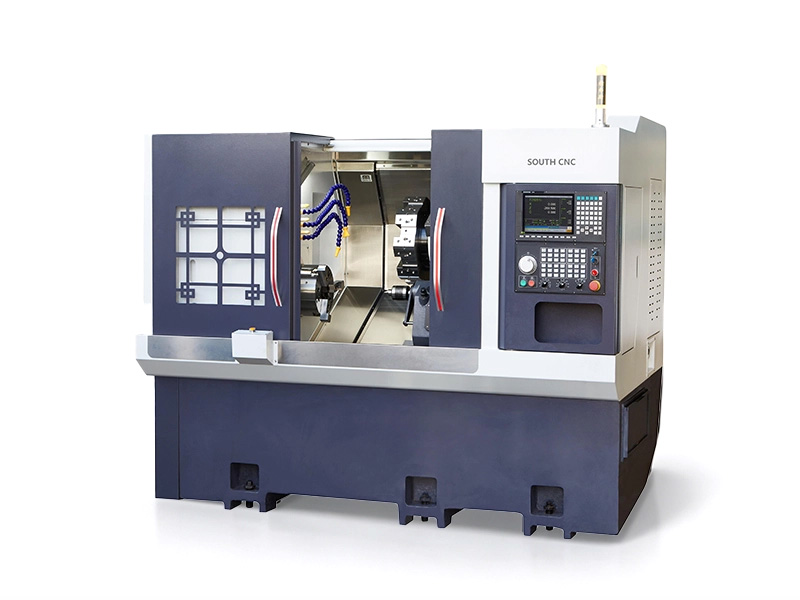

Gang type cnc lathe machine J52 - 600LU,J76-600LU,J76B-600LU

Main performance
• Swing over lathe diameter 600mm
• Max. turning length 560mm
• One piece casting base and slanting bed keep good stable machine performance
• Spindle bore66mm
• Suitable for rough and finish machining of stainless steel, titanium alloys, carbon steel, mold steel, and other materials
• The integral casting undergoes aging processes such as annealing and vibration time to guarantee long-term stability and extend machine tool lifespan

Inquiry

Write a Review

Machine detail

a2 (5)

未标题-1 (7)

Main Specification

Model of lathe		unit	J52-600LU	J72-600LU	J76B-600LU
Machining capacity	Max. swing diameter over lathe	mm	Ø600	Ø600	Ø600
	Maximum turning diameter	mm	Ø250	Ø250	Ø250
	Max. turning length	mm	560	560	560
Main Spindle	Spindle Hydraulic Chuck	in	8"	10"	10"
	Spindle center height from ground	mm	1030	1030	1030
	Spindle nose	-	A2-6	A2-8	A2-8
	Spindle bore diameter	mm	Ø66	Ø86	Ø86
	Maximum bar material diameter	mm	Ø51	Ø72	Ø72
	Maximum spindle speed	r/min	4000	2000	2000
	Spindle motor power/torque	Kw / N.m	11 kW / 72 Nm Optional: 15 kW / 95.5 Nm	15 kW / 95.5 Nm Optional: 15 kW /143 Nm	15 kW / 143 Nm Optional: 15 kW / 192 Nm
Servo Turret	Turret Model	-	100-12T	100-12T	125-8T
Servo Turret
Feeding axis	Maximum fast travel speed	m/min	24	24	24
	X/Z-axis motor power/torque	Kw / N.m	YASKAWAI 1.8KW/ 11.5N.m or SYNTEC 2.4KW/ 11.5N.m	YASKAWAI 1.8KW/ 11.5N.m or SYNTEC 2.4KW/ 11.5N.m	YASKAWAI 1.8KW/ 11.5N.m or SYNTEC 2.4KW/ 11.5N.m
	X/Z-Axis C3-Grade Ball Screws	-	40/40	40/40	40/40
	X/Z-Axis Roller Linear Guides	-	35/45	35/45	35/45
	X-axis maximum travel	mm	230	230	230
	Z-axis maximum travel	mm	580	580	580
Tailstock	Tailstock travel	mm	520	520	520
Tailstock	Thimble taper	MK	Morse Taper #5	Morse Taper #5	Morse Taper #5
Equipment specifications	Machine net weight	kg	3800	3900	4300
	Total machine power	KW	21	23	26
	Machine L x W x H	mm	2500x1600x1700	2500x1600x1700	2500x1600x1700

Optional items

Configuration item		J52-600LU,J76-600LU,J76B-600LU
Spindle	Mechanical spindle	●
Spindle	Electric spindle	○
Control system	SYNTEC CNC system	●
Control system	FANUC	○
Feed axis	Yaskawa	●
Feed axis	SYNTEC	○
Turret	100-12T	●
Turret	125-8T	○
Clamping	Back-pull chuck	●
	Push-up chuck	○
	Chuck	○

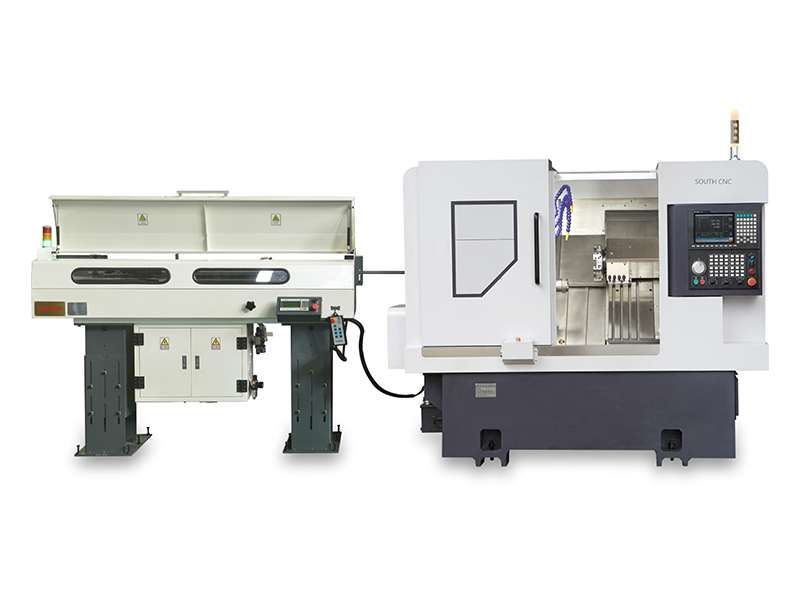

Auxiliary equipment	Feeding device	○
	Chip conveyor	○
	Automated robot	○
	Oil mist separator	○

Standard ● Optional ○

Machine tool accuracy

Main inspection items	Detection method	Factory Standards
X-axis repeated positioning	Checking the X-Axis Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
Z axis repeated positioning	Checking the Z-Axis Fixed-Point Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
If the customer wants to test the ISO or VDI accuracy of the X/Z/Y axis, it must be determined when writing the contract. The customer must also test this item during the initial acceptance at the Jingfusi factory.

Main configuration

Name	Brand
NC System	Taiwan SYNTEC 22TA system,10.4-inch screen.
X/Z-axis Servo	Taiwan SYNTEC or Japan YASKAWAI .X-axis motor with brake.
Spindle	Taiwan-made POSA spindle (or custom-made Jingfusi tail-mounted direct-drive electric spindle for an additional 3,000 yuan).The Model 76 machine typically utilizes an original A2-8 spindle from Kenturn (Taiwan); the POSA A2-8 spindle for the Model 76 is generally not kept in stock.
X/Z Screws	Taiwan-made PMI or HIWIN C3-grade ground ball screw, equipped with a double nut. One end features a blind-hole thread.
X/Z Linear Guides	Taiwan-made PMI or HIWIN P-Class Ball Linear Guide. Features an extended carriage to increase load capacity and enhance rigidity.
Spindle Motor	Taiwan SYNTEC or Beijing CTB
Servo Turret	Taiwan-manufactured 12-station 100-series MYKUN servo turret, or a customized 12-station 100-series Jingfusi servo turret.
Lubrication System	Japan HERG lubricating oil pump (joint venture).
Electrical Components	German-made Schneider electrics.
Hydraulic Station	Customized hydraulic station. User-provided 46# genuine Great Wall anti-wear hydraulic oil.
Cast Iron One-Piece Bed	In-house development.
Includes New Features	SYNTEC System G183 (Face Drilling Cycle) V01

Machine tool accessories list

(The following accessories are included in a single device)

No.	Contents	Specification	Unit	Remark
1	Spring Collet	Standard Configuration	1 PCS	Specification of choice
2	Tool Holder	-	8 PCS
3	Face-Mount Square Tool Holder (with Clamping Blocks)	-	-
4	Tool Holder Assembly Clamping Block	-	8 Set
5	Machine Leveling Mounts	-	4 Set
6	Foot switch	-	1 PCS
7	Hexagonal wrench	-	1 Set
8	Machine Tool Operation, Maintenance, and Repair Manual	Includes M code, G code, circuit diagram	1 Set
9	SYNTEC User Manual	USB flash drive	1 PCS	Packed in accessory box
10	Dota Manual	-	1 copy	Packed in accessory box
11	Servo Drive Manual	-	1 copy	Packed in accessory box

For optional servo tool turrets, tool-changing motors, FANUC systems, and other accessories, please request the "Optional Accessories List."
