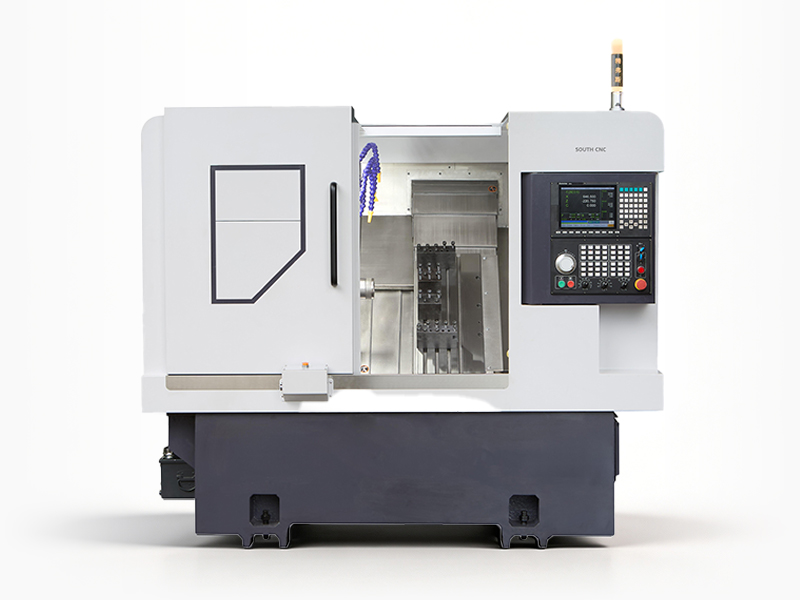

Gang type cnc lathe machine J46,52,76

Main performance
• Swing over lathe diameter 400mm
• Max. turning length 380mm
• Taiwan SYNTEC controller
• It can be equipped with turrets, fly cutter heads, power heads, etc. The power head can be selected to be oscillating, with any oscillation angle from 0° to 90°, to realize integrated turning and milling machining
• Enlarged tool holder for improved rigidity
• Suitable for machining materials such as stainless steel, titanium alloys, and carbon steel
• The integral casting undergoes aging processes such as annealing and vibration to ensure long-term stability during machining and extend the service life of the machine tool

Inquiry

Write a Review

Machine detail

b1 (4)

b2 (4)

Main Specification

Model of lathe		unit	J46	J52	J76
Machining capacity	Max. swing diameter over lathe	mm	Ø400	Ø400	Ø400
	Maximum turning diameter	mm	Ø160	Ø160	Ø160
	Max. turning length	mm	380	380	380
Main Spindle	Spindle center height from ground	mm	1060	1060	1060
	Spindle nose	-	A2-5	A2-6	A2-8
	Spindle bore diameter	mm	Ø56	Ø66	Ø86
	Maximum bar material diameter	mm	Ø45	Ø51	Ø72
	Maximum spindle speed	r/min	4500	4000	2000
	Spindle motor power/torque	Kw / N.m	7.5KW/47 N.m	11KW/72 N.m	15KW/143 N.m
Feeding axis	Maximum fast travel speed	m/min	24	24	24
	X/Z-axis motor power/torque	Kw / N.m	YASKAWAI 1.3KW/ 8.34N.m or SYNTEC 1.8KW/ 11.5N.m	YASKAWAI 1.3KW/ 8.34N.m or SYNTEC 1.8KW/ 11.5N.m	YASKAWAI 1.3KW/ 8.34N.m or SYNTEC 1.8KW/ 11.5N.m
	X/Z-Axis C3-Grade Ball Screws	-	32/32	32/32	32/32
	X/Z-Axis Roller Linear Guides	-	35/35	35/35	35/35
	X-axis maximum travel	mm	1000	1000	1000
	Z-axis maximum travel	mm	400	400	400
Equipment specifications	Machine net weight	kg	2600	2700	2800
	Total machine power	KW	10	10	10
	Machine L x W x H	mm	2100x1580x1800	2100x1580x1800	2100x1580x1800

Optional items

Configuration item		J46,J52,J76
Spindle	Mechanical spindle	●
Spindle	Electric spindle	○
Control system	SYNTEC CNC system	●
Control system	FANUC	○
Feed axis	Yaskawa	●
Feed axis	SYNTEC	○
Clamping	Back-pull chuck	●
	Push-up chuck	○
	Chuck	○
Auxiliary equipment	Parts collect device	○
	Feeding device	○
	Chip conveyor	○
	Automated robot	○
	Oil mist separator	○

Standard ● Optional ○

Machine tool accuracy

Main inspection items	Detection method	Factory Standards
X-axis repeated positioning	Checking the X-Axis Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
Z axis repeated positioning	Checking the Z-Axis Fixed-Point Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
If the customer wants to test the ISO or VDI accuracy of the X/Z/Y axis, it must be determined when writing the contract. The customer must also test this item during the initial acceptance at the Jingfusi factory.

Main configuration

Name	Brand
NC System	Taiwan SYNTEC 22TA system,10.4-inch screen.
X/Z-axis Servo	Japan YASKAWAI or Taiwan SYNTEC
Spindle	Taiwan-made POSA spindle (or custom-made Jingfusi tail-mounted direct-drive electric spindle for an additional 3,000 yuan).The Model 76 machine typically utilizes an original A2-8 spindle from Kenturn (Taiwan); the Posen A2-8 spindle for the Model 76 is generally not kept in stock.
Spindle Motor	Taiwan SYNTEC or SuperSync (Beijing)
X/Z Screws	Taiwan-made PMI or HIWIN C3-grade ground ball screw, equipped with a double nut. One end features a blind-hole thread.
X/Z Linear Guides	Taiwan-made PMI or HIWIN P-Class Ball Linear Guide. Features an extended carriage to increase load capacity and enhance rigidity.
Lubrication System	Japanese HERG lubricating oil pump (joint venture).。
Electrical Components	German-made Schneider electrics.
Hydraulic Station	Customized hydraulic station. User-provided 46# genuine Great Wall anti-wear hydraulic oil.
Cast Iron One-Piece Bed	In-house development.
Includes New Features	SYNTEC System G183 (Face Drilling Cycle) V01

Machine tool accessories list

(The following accessories are included in a single device)

No.	Contents	Specification	Unit	Remark
1	Spring Collet	Standard Configuration	1 PCS	Specification of choice
2	Tool Holder	-	8 PCS
3	Machine Leveling Mounts	-	4 Set
4	Foot switch	-	1 PCS
5	Hexagonal wrench	-	1 Set
6	Machine Tool Operation, Maintenance, and Repair Manual	Includes M code, G code, circuit diagram	1 Set
7	SYNTEC User Manual	USB flash drive	1 PCS	Packed in accessory box
8	Dota Manual	-	1 copy	Packed in accessory box
9	Servo Drive Manual	-	1 copy	Packed in accessory box

For optional servo tool turrets, tool-changing motors, FANUC systems, and other accessories, please request the "Optional Accessories List."
