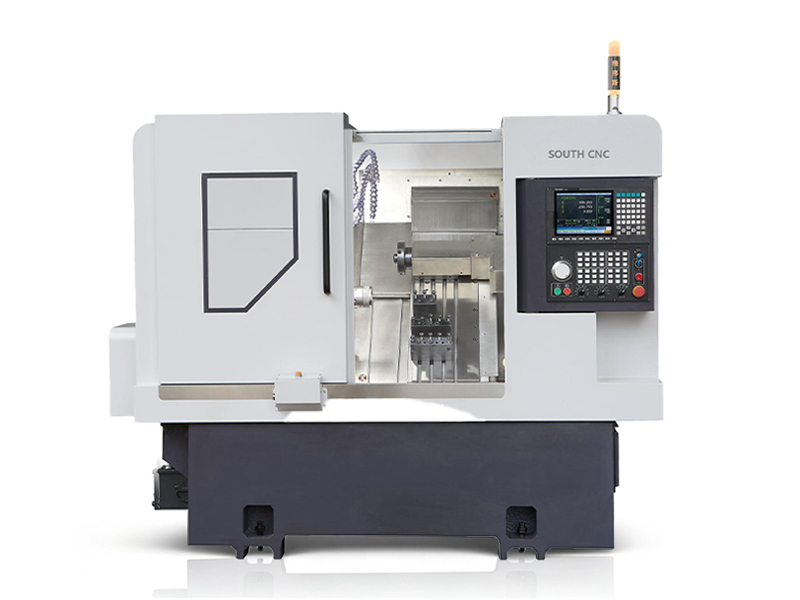

Gang type cnc lathe machine J46+1,J52+1

Main performance
• Swing over lathe diameter 400mm
• Max. turning length 380mm
• Maximum turning diameter 160mm
• Taiwan SYNTEC controller
• It can be equipped with turrets, fly cutter heads, power heads, etc. The power head can be selected to be oscillating, with any oscillation angle from 0° to 90°, to realize integrated turning and milling machining
• Enlarged tool holder for improved rigidity
• Suitable for machining materials such as stainless steel, titanium alloys, and carbon steel
• The integral casting undergoes aging processes such as annealing and vibration to ensure long-term stability during machining and extend the service life of the machine tool

Inquiry

Write a Review

Machine detail

Main Specification

Model of lathe		J46+1	J52+1
Machining capacity	Max. swing diam. over lathe	Ø400mm	Ø400mm
	Maximum turning diameter	Ø160mm	Ø160mm
	Max. turning length	380mm	380mm
Main Spindle	Spindle center height from ground	1080mm	1080mm
	Spindle nose	A2-5	A2-6
	Spindle bore diameter	Ø56mm	Ø66mm
	Maximum bar material diameter	Ø45mm	Ø51mm
	Maximum spindle speed	Max.4500r/min	Max.4000r/min
	Spindle motor power/torque	7.5KW/47 N.m	11KW/72 N.m
Servo Turret	Servo turret MK-63RSV-8T	Optional	Optional
X/Z/Y axis feeding	Maximum fast travel speed	24m/min	24m/min
	X/Z/Y-axis motor power/torque	Yaskawa 1.3kW/8.34Nm Or SYNTEC 1.8kW/11.5Nm	Yaskawa 1.3kW/8.34Nm Or SYNTEC 1.8kW/11.5Nm
	X/Z-axis C3-grade ball screws	32/32	32/32
	X/Z-axis roller guide rails	35/35	35/35
	X-axis maximum travel	1000mm	1000mm
	Z-axis maximum travel	400mm	400mm
Equipment specifications	Machine net weight	2600 kg	2700 kg
	Total machine power	11.5 KW	15 KW
	Machine L x W x H	2100x1580x1800	2100x1580x1800

Optional items

Configuration item		J46+1，j52+1
Spindle	Mechanical spindle	●
Spindle	Electric spindle	○
Control system	SYNTEC CNC system	●
Feed axis	Yaskawa	●
Feed axis	SYNTEC	○
Clamping	Back-pull chuck	●
	Push-up chuck	○
	Chuck	○
Auxiliary equipment	Parts collect device	○
	Feeding device	○
	Chip conveyor	○
	Automated robot	○
	Oil mist separator	○

Standard ● Optional ○

Machine tool accuracy

Main inspection items	Detection method	Factory Standards
X-axis repeated positioning	Checking the X-Axis Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
Z axis repeated positioning	Checking the Z-Axis Fixed-Point Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
If the customer wants to test the ISO or VDI accuracy of the X/Z/Y axis, it must be determined when writing the contract. The customer must also test this item during the initial acceptance at the Jingfusi factory.

Main configuration

Name	Brand
NC System	Taiwan SYNTEC 22TB system, crystal panel，10.4-inch screen.
X/Z axis servo	Japan YASKAWAI or Taiwan SYNTEC
Spindle	Taiwan-made POSA spindle (or custom-made Jingfusi tail-mounted direct-drive electric spindle for an additional 3,000 yuan).
Fully closed-loop indexing	Taiwan produces SYNTEC magnetic ring encoder
Spindle Motor	Taiwan SYNTEC
X/Z axis screw	Taiwan-made PMI or Hiwin C3-grade futures-ground lead screw with double nut. One end has a blind thread.
X/Z axis guide rails	Taiwan-made PMI or Hiwin P-grade roller guide rails with extended slides for increased load capacity and enhanced rigidity.
Lubrication System	Japan HERG lubricating oil pump (joint venture).。
Electrical Components	German-made Schneider electrics.
Hydraulic Station	Customized hydraulic station. User-provided 46# genuine Great Wall anti-wear hydraulic oil.
Cast Iron One-Piece Bed	In-house development.
Power head	End to ER25 power end. Equipped with flying cutter. Speed ≤ 3000 rpm
Includes New Features	SYNTEC system G174 (CNC lathe slot) V01.
Includes New Features	SYNTEC system G183 (face drilling cycle) V01.
Post-Processing File	Provide complete Mastercam2022/2021/2017/ X9/ X6 computer software turning and milling compound programming post-processing files to Party A

Machine tool accessories list

(The following accessories are included in a single device)

No.	Contents	Specification	Unit	Remark
1	Power head ER25 collet		1set	Installed in accessory box or on turret
2	Power head wrench		2set	Packed in accessory box
3	Spring chuck	One piece as standard	1set	Optional specifications
4	Tool holder		8set
5	Machine pad		4set
6	Foot switch		1set
7	Hexagon wrench		1set	Packed in accessory box
8	Machine tool maintenance and repair manual	Includes M code, G code, circuit diagram	1pcs
9	SYNTEC user manual	USB flash drive	1pcs	Packed in accessory box
10	Servo drive manual		1copy	Packed in accessory box
