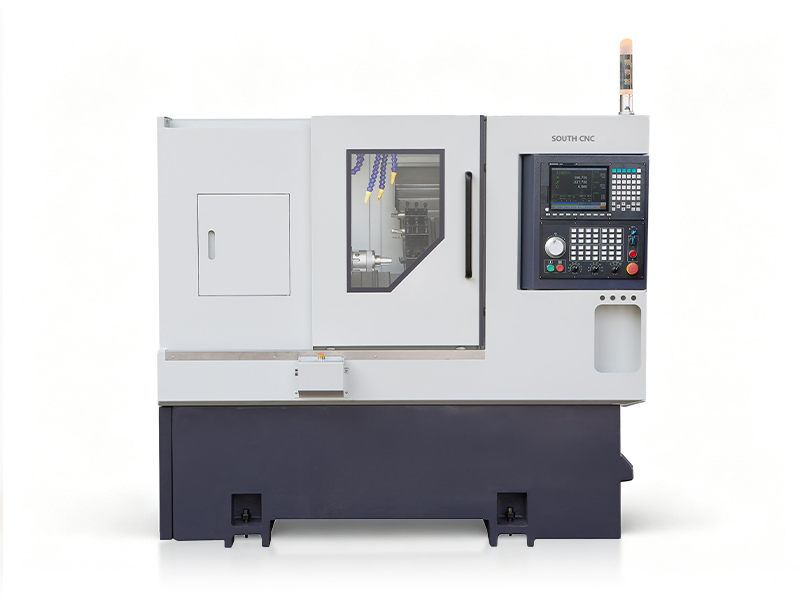

Gang type cnc lathe machine J36,J25

Main performance
• Swing over lathe diameter 300mm
• Max. turning length 200mm
• One piece casting base and slanting bed keep good stable machine performance
• Taiwan SYNTEC controller
• Optional attachments include a turret, fly cutter head, and power head. The power head can be tilted from 0° to 90° for integrated milling and turning
• Slant bed
• Short stroke maximizes precision
• Suitable for machining stainless steel, titanium alloys, carbon steel, and other materials. The integral casting undergoes annealing,
• Vibration testing, and aging to ensure long-term stability and extend machine tool lifespan

Inquiry

Write a Review

Machine detail

b3 (3)

b2 (3)

b1 (3)

Main Specification

Model of lathe		unit	J36	J25
Machining capacity	Max. swing diameter over lathe	mm	Ø300	Ø300
	Maximum turning diameter	mm	Ø100	Ø100
	Max. turning length	mm	200	200
Main Spindle	Spindle center height from ground	mm	1020	1020
	Spindle nose	-	A2-4	A2-4
	Spindle bore diameter	mm	Ø43	Ø38
	Maximum bar material diameter	mm	Ø35	Ø25
	Maximum spindle speed	r/min	7000	8000
	Spindle motor power/torque	Kw / N.m	5.5KW/35 N.m	3.7KW/23 N.m
Feeding axis	Maximum fast travel speed	m/min	25 or 30	25 or 30
	X/Z-axis motor power/torque	Kw / N.m	YASKAWAI 850KW/ 3.39N.m or SYNTEC 1KW/3.2N.m	YASKAWAI 850KW/ 3.39N.m or SYNTEC 1KW/3.2N.m
	X/Z-Axis C3-Grade Ball Screws	-	32/32	32/32
	X/Z-Axis Roller Linear Guides	-	25/25	25/25
	X-axis maximum travel	mm	750	750
	Z-axis maximum travel	mm	370	370
Equipment specifications	Machine net weight	kg	2000	1900
	Total machine power	KW	10	13.5
	Machine L x W x H	mm	1700x1300x1400	1700x1300x1400

Optional items

Configuration item		J36,J25
Main Spindle	Mechanical spindle	●
Main Spindle	Electric spindle	○
counter system	SYNTEC controller	●
counter system	FANUC controller	○
Feed axis	Yaskawa	●
Feed axis	SYNTEC	○
Clamping	Push-up chuck	●
Clamping	Push-out chuck	○
Auxiliary equipment	Parts collect device	○
	Feeding device	○
	Chip conveyor	○
	Automated robot	○
	Oil mist separator	○

Standard ● Optional ○

Machine tool accuracy

Main inspection items	Detection method	Factory Standards
X-axis repeated positioning	Checking the X-Axis Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.002
Z axis repeated positioning	Checking the Z-Axis Fixed-Point Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.002
If the customer wants to test the ISO or VDI accuracy of the X/Z/Y axis, it must be determined when writing the contract. The customer must also test this item during the initial acceptance at the Jingfusi factory.

Main configuration

Name	Brand
NC System	Taiwan SYNTEC 22TA system.
X/Z-axis Servo	Japan YASKAWA or Taiwan SYNTEC
Spindle	Taiwan-made POSA spindle (or custom-made Jingfusi tail-mounted direct-drive electric spindle for an additional 3,000 yuan).
Spindle Motor	Taiwan SYNTEC or CTB
X/Z Screws	Taiwan-made PMI or HIWIN C3-grade ground ball screw, equipped with a double nut. One end features a blind-hole thread.
X/Z Linear Guides	Taiwan-made PMI or HIWIN P-Class Ball Linear Guide. Features an extended carriage to increase load capacity and enhance rigidity.
Lubrication System	Japan HERG lubrication pump (joint venture).
Electrical Components	German-made Schneider electrics.
Hydraulic Station	Customized hydraulic station. User-provided 46# genuine Great Wall anti-wear hydraulic oil.
Cast Iron One-Piece Bed	In-house development.
Includes New Features	SYNTEC System G183 (Face Drilling Cycle) V01

Machine tool accessories list

(The following accessories are included in a single device)

No.	Contents	Specification	Unit	Remark
1	Spring Collet	Standard Configuration	1 PCS	Specification of choice
2	Tool Holder	-	8 PCS
3	Machine Leveling Mounts	-	4 Set
4	Foot switch	-	1 PCS
5	Hexagonal wrench	-	1 Set
6	Machine Tool Operation, Maintenance, and Repair Manual	Includes M code, G code, circuit diagram	1 Set
7	SYNTEC User Manual	USB flash drive	1 PCS	Packed in accessory box
8	Servo Drive Manual	-	1 copy	Packed in accessory box

For optional servo tool turrets, tool-changing motors, FANUC systems, and other accessories, please request the "Optional Accessories List."
