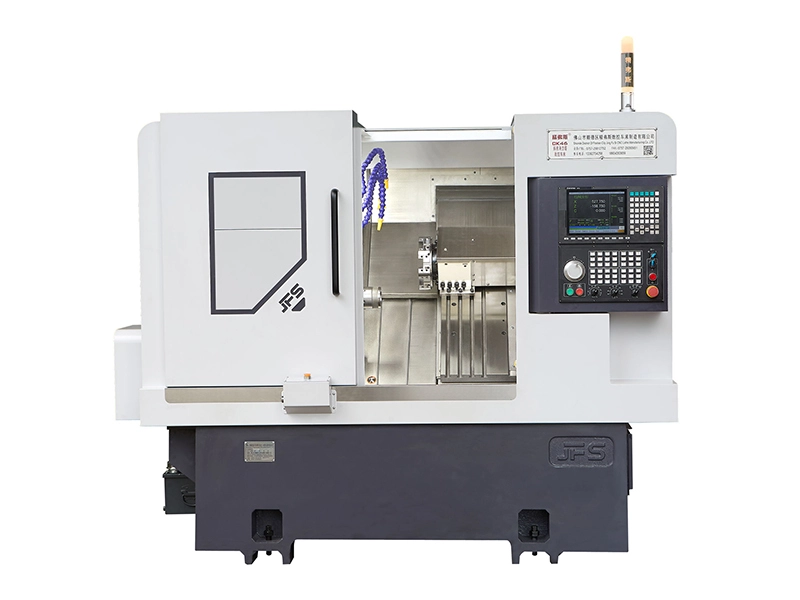

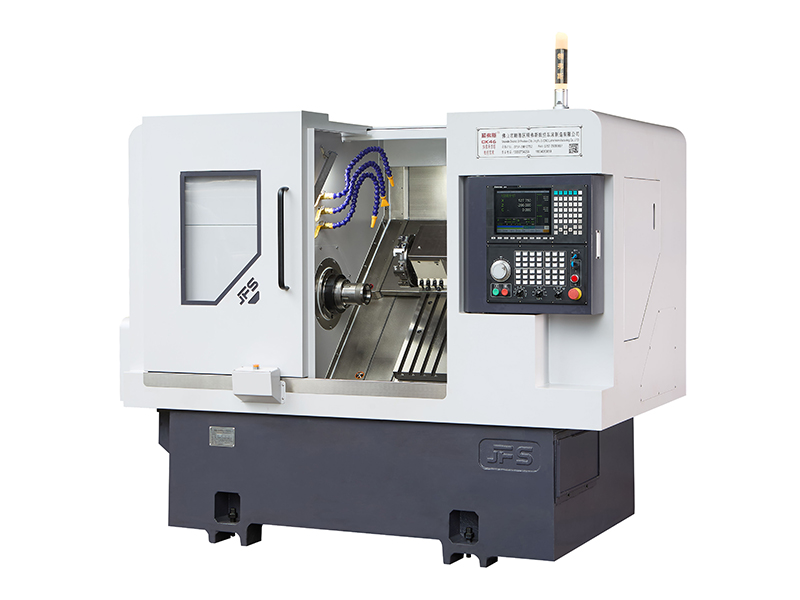

Cnc lathe turning machine CK76-D

● With servo turret cnc lathe machine, setting maximum 8 tools, optional 12T
● Taiwan SYNTEC controller
● Adopting the monolithic conjoined L structure of lathe bed
● Can process stainless steel, titanium alloy, high temperature alloy materials.
● The machine has good performance high precision, low noise, new style, etc

Inquiry

Write a Review

Main performance

◉ Swing over lathe diameter 400mm

◉ Max. turning length 380mm

◉ One piece casting base and slanting bed keep good stable machine performance

◉ Spindle bore 86mm

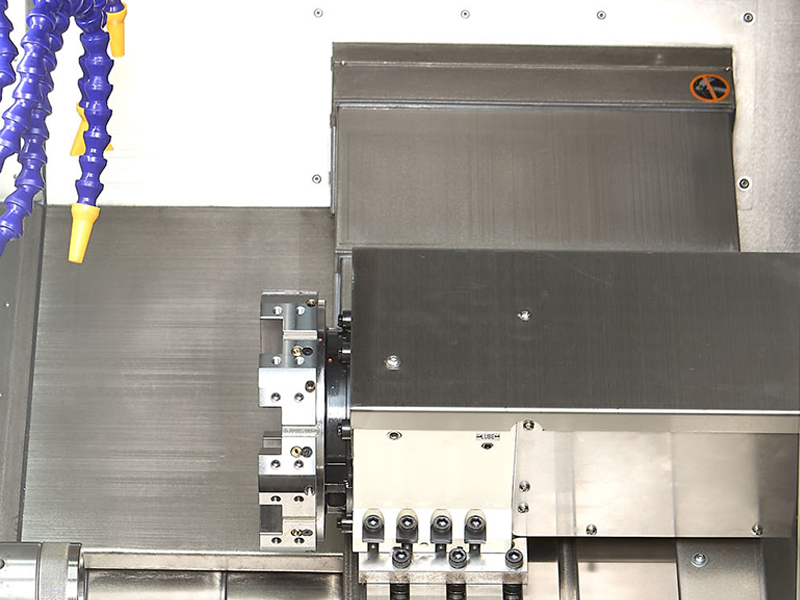

◉ With servo turret cnc lathe machine, setting maximum 8 tools, optional 12T

◉ Taiwan SYNTEC controller

◉ Adopting the monolithic conjoined L structure of lathe bed

◉ Can process stainless steel, titanium alloy, high temperature alloy materials.

◉ The machine has good performance high precision, low noise, new style, etc

Main Specification

Model of lathe		CK76-D
Machining capacity	Max. swing diam. over lathe	Ø400mm
	Maximum turning diameter	Ø160mm
	Max. turning length	380mm
Main Spindle	Spindle center height from ground	1080mm
	Spindle nose	A2-8
	Spindle bore diameter	Ø86mm
	Maximum bar material diameter	Ø72mm
	Maximum spindle speed	Max.2000r/min
	Spindle motor power/torque	15KW/143 N.m
Servo Turret	Servo turret model	MK-63SV-8T
X/Z/Y axis feeding	Maximum fast travel speed	-
	X/Z/Y-axis motor power/torque	Yaskawa 1.3kW/8.34Nm Or SYNTEC 1.8kW/11.5Nm
	X/Z-axis C3-grade ball screws	32/32
	X/Z-axis roller guide rails	35/35
	X-axis maximum travel	1000mm
	Z-axis maximum travel	400mm
Equipment specifications	Machine net weight	2800 kg
	Total machine power	17.5 KW
	Machine L x W x H	2100x1580x1800

Optional items

(Standard ● Optional ○)

Configuration item		CK76-D
Spindle	Mechanical spindle	●
Spindle	Electric spindle	○
Control system	New generation CNC system	●
Control system	FANUC CNC system	○
Feed axis	Yaskawa	●
Feed axis	SYNTEC	○
Turret	8 workstations	●
Turret	12 workstations	○
Clamping	Back-pull chuck	●
Clamping	chuck	○
Auxiliary equipment	Parts collect device	○
	Feeding device	○
	Chip conveyor	○
	Automated robot	○
	Oil mist separator	○
