cnc lathe machining center J46MY,J52MY,J76MY (Virtual Y-type high-speed direct driving turret machine tool) 1

cnc lathe machining center J46MY,J52MY,J76MY (Virtual Y-type high-speed direct driving turret machine tool) 2

cnc lathe machining center J46MY,J52MY,J76MY (Virtual Y-type high-speed direct driving turret machine tool) 3

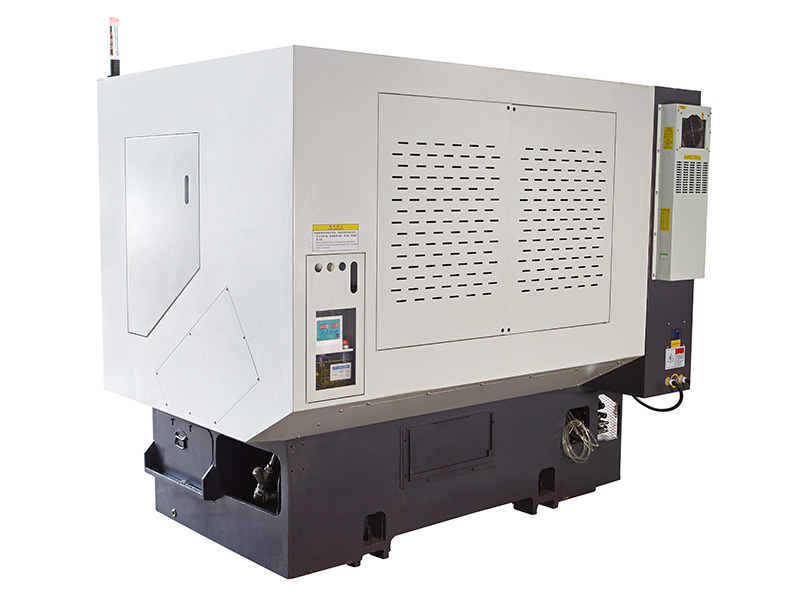

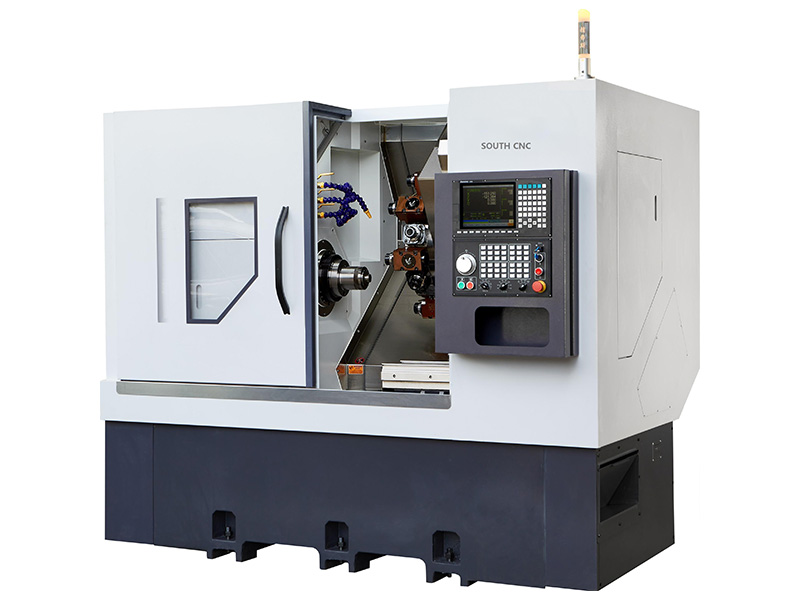

cnc lathe machining center J46MY,J52MY,J76MY (Virtual Y-type high-speed direct driving turret machine tool)

Main performance
• Swing over lathe diameter 700mm
• Max. turning length 480mm

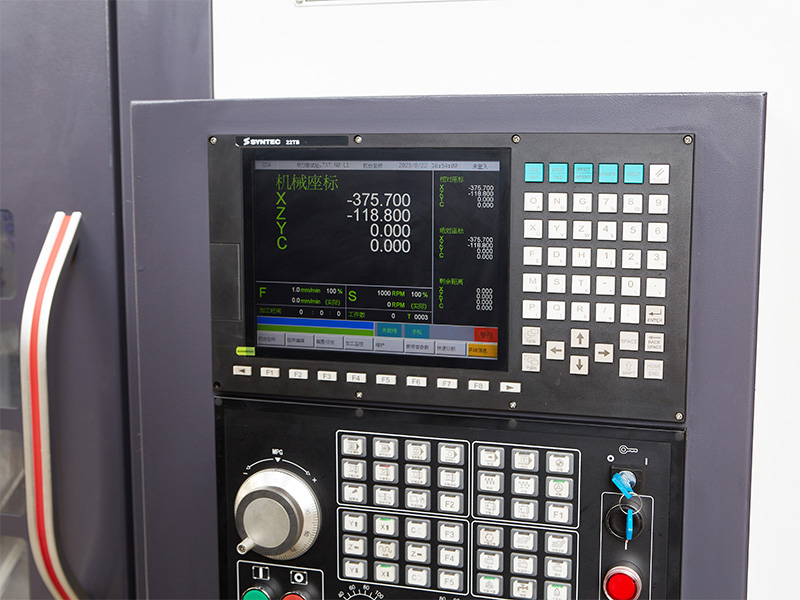

• Taiwan SYNTEC controller
• Under the same conditions of configuration, casting structure, casting aging, assembly precision, etc.
• The interpolation Y is more rigid than the perpendicular Y
• The roundness of interpolated Y is easier to adjust than that of perpendicular Y
• The stroke of vertical Y is easier to lengthen than that of interpolation Y
• Vertical Y-axis machining produces better surface finish than interpolated Y-axis machining

Inquiry

Write a Review

Machine detail

b1 (7)

b2 (7)

Main performance

• Programming vertical Y is easier than programming interpolated Y
• The 0° power head can reach 8000 RPM under normal use, and the 90° power head can reach 6500 RPM under normal use
• The gearless module transmission within the turret eliminates the heat source and ensures machining accuracy
• The milling and turning function can process complex materials such as stainless steel, titanium alloy, and carbon steel
• Chip removal method: Side chip removal and rear chip removal are integrated, allowing for arbitrary installation
• The integral casting undergoes aging processes such as annealing and vibration to ensure long-term stability during machining and extend the service life of the machine tool

b1 (9)

Main Specification

Model of lathe		unit	J46MY	J52MY	J76MY
Machining capacity	Max. swing diameter over lathe	mm	Ø700	Ø700	Ø700
	Max. turning length	mm	480	480	480
	Maximum turning diameter	mm	Ø300	Ø300	Ø300
Spindle	Spindle hydraulic chuck	in	6”	8”	10”
	Height of spindle center from ground	mm	1050	1050	1050
	Spindle model	-	A2-5	A2-6	A2-8
	Spindle bore diameter	mm	Ø56	Ø66	Ø86
	Maximum bar material diameter	mm	Ø45	Ø51	Ø72
	Max. Spindle speed	r/min	4500	4000	2000
	Spindle motor power/torque	Kw/N.m	7.5Kw/47N.m	22Kw/170N.m	22Kw/170N.m
Power turret (high speed direct driving model)	Power turret model	--	BMT45-16T	BMT55-16T	BMT55-16T
	Power turret motor power/torque	Kw/N.m	7.5Kw/22N.m or 11Kw/42Nm
	Motor max. Speed	rpm	8000 or 6000
X/Z/Y axis feeding	X/Z/Y axis fast travel speed	m/min	24	24	24
	X/Z/Y axis motor power/torque	Kw/Nm	3.1Kw/15Nm	3.1Kw/15Nm	3.1Kw/15Nm
	X/Z/Y -axis C3 grade ball screw	--	32/40/40	32/40/40	32/40/40
	X-axis Roller P4-level linear rail	--	35/45/45	35/45/45	35/45/45
	X-axis maximum travel	mm	500	500	500
	Z-axis maximum travel	mm	530	530	530
	Virtual Y-axis effective travel	mm	+48，-52	+48，-52	+48，-52
	90° driving head offset spindle center	mm	60	70	70
Equipment specifications	Machine net weight	kg	5000	5000	5100
	Total horse	KW	34	34	37
	Machine L x W x H	mm	2600 x2050 x2040	2600 x2050 x2040	2600 x2050 x2040

Optional items

Configuration item		J46MY,J52MY,J76MY
Spindle	Mechanical spindle	●
Spindle	Electric spindle	○
Control system	SYNTEC	●
Feed axis	Yaskawa	○
Feed axis	SYNTEC	●
Turret	Direct-drive high-speed power turret	●
	Taiwan Maikun Power Turret	○
	Taiwan Maikun Power Turret	○
Clamping	Back-pulling chuck	●
	Push-up chuck
	Chuck	○
Auxiliary equipment	Parts collect device	○
	Feeding device	○
	Chip conveyor	○
	Automated robot	○
	Oil mist separator	○

Standard ● Optional ○

Machine tool accuracy

Main inspection items	Detection method	Factory Standards
X-axis repeated positioning	Checking the X-Axis Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
Z1 axis repeated positioning	Checking the Z-Axis Fixed-Point Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.003
Y-axis repeated positioning	Checking the Y-Axis Fixed-Point Re-position accuracy Note: Perform a preliminary run approximately 50 times to offset errors from cooling and warming up, then test the Re-position accuracy	±0.004
If the customer wants to test the ISO or VDI accuracy of the X/Z/Y axis, it must be determined when writing the contract. The customer must also test this item during the initial acceptance at the Jingfusi factory.

Main configuration

Name	Brand
NC System	Taiwan SYNTEC 220TB system, crystal panel，
X/Z1/Y Axes	Taiwan SYNTEC
Power Head Motor	Taiwan SYNTEC motor
X/Z1/Y Screws	Taiwan-made PMI or Hiwin C3-grade futures-ground lead screw with double nut. One end has a blind thread.
X/Z1/Y Linear Guides	Taiwan-made PMI or Hiwin P-grade roller guide rails with extended slides for increased load capacity and enhanced rigidity.
Spindle	Taiwan-made POSA spindle (or custom-made Jingfusi tail-mounted direct-drive electric spindle for an additional 3,000 yuan).
Spindle Motor	Taiwan SYNTEC
16-Station Power Turret	JFS direct-drive turret: built-in direct-drive 8000 rpm 7.5kW motor.Power transmission without gear module.
Spindle Brake	Hydraulic brake.
Fully Closed-Loop Indexing	Taiwan SYNTEC Magnetic ring encoder
Lubrication System	Japanese HERG lubricating oil pump (joint venture).。
Electrical Components	German-made Schneider electrics.
Hydraulic Station	Customized hydraulic station. User-provided 46# genuine Great Wall anti-wear hydraulic oil.
Cast Iron One-Piece Bed	In-house development.
Oil Cooler	Constant temperature oil cooler.
Includes New Features	SYNTEC system G174 (CNC lathe slot) V01.
Includes New Features	SYNTEC system G183 (face drilling cycle) V01.
Post-Processing File	Provide complete Mastercam2022/2021/2017/ X9/ X6 computer software turning and milling compound programming post-processing files to Party A

Machine tool accessories list

(the following accessories are included in a single device)

No.	Contents	Specification	Unit	Remark
1	Boring tool holder	Ø25/32/45	3PCS
2	OD square tool holder (with clamp)	25X25	4PCS
3	Face square tool holder (with clamp)	25X25	1PCS
4	0° drive head tool holder	Standard	Get 1 free	Heavy milling, consumables
5	90°drive head tool holderdrive head tool holder	Standard	Get 1 free	Heavy milling, consumables
6	0°drive head tool holder	High-speed optical transmission	Get 1 free	Light milling, consumables
7	90°drive head tool holder	High-speed optical transmission	Get 1 free	Light milling, consumables
8	Spring collet	One item is included as standard; size is optional.	1Set
9	Machine toolholder		4 pairs
10	Foot switch		1PCS
11	ER drive head collet		1Set
12	Drive head wrench		2PCS	Choose one according to the power head
13	Hexagonal wrench		1Set
14	Machine tool maintenance and repair manual	Includes M code, G code, circuit diagram	1Set
15	SYNTEC user manual	USB flash drive	1PCS	Packed in accessory box
16	Turret manual		1copy	Packed in accessory box
17	Servo drive manual		1copy	Packed in accessory box
