3-Axis Horizontal Machining Center, 6/8-Inch High-Precision CNC Turning Center

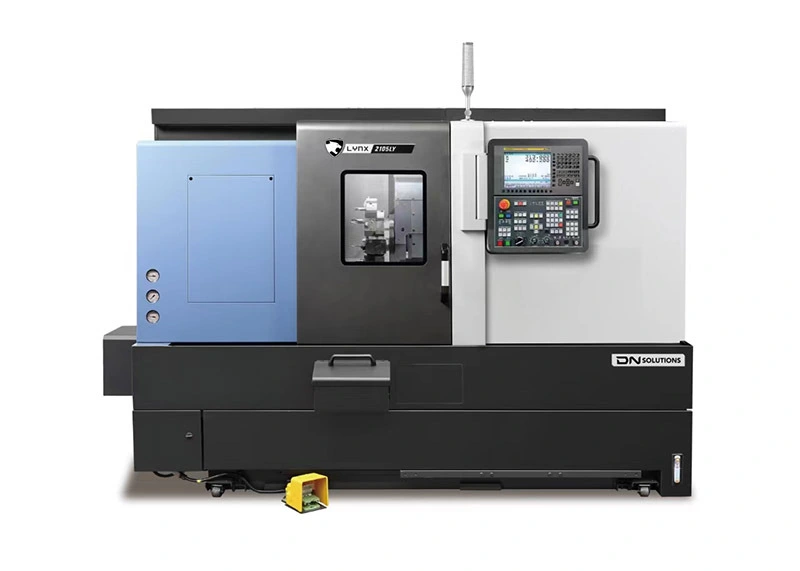

This model is a 6/8-inch high-precision model with a Y-axis Horizontal turning center (Lynx 2105LSYA/LSYB equipped with Spindle), the valve, shaft, gear can be clamped with only one clamping Precision processing of small metal parts such as wheels and flanges, for Users enjoy higher productivity.
Introduction
● This model is a 6/8-inch high-precision model with a Y-axis Horizontal turning center (Lynx 2105LSYA/LSYB equipped with Spindle), the valve, shaft, gear can be clamped with only one clamping Precision processing of small metal parts such as wheels and flanges, for Users enjoy higher productivity.
Main performance
● 8 inch high-precision horizontal turning center with Y-axis
● Spindle speed 4500 rpm
● X/Y/Z travel 205 / 105/ 560 mm
● X/Y/Z fast speed travel speed 30/10/36 m/min
● maximum machine diameter with machining length 300x510 mm
Technical parameters
| Name | unit | LYNX2105LYB | |
| Machining capacity | Maximum swing over bed diameter | mm | 600 |
| Maximum swing over slanting bed diameter | mm | 400 | |
| Recommended turning diameter | mm | 210 | |
| Bar processing diameter | mm | 65 | |
| Maximum turning diameter | mm | 300 | |
| Maximum turning length | mm | 510 | |
| Spindle | Chuck size | inch | 8 |
| Maximum speed | R/min | 4500 | |
| Maximum torque | N.m | 169 | |
| Motor Power | KW | 15/11 | |
| Axis | X/Y/Z axis travel | mm | 205/105(±52.5)/560 |
| X/Y/Z axis rapid travel speed | m/min | 30/10/36 | |
| Turret | Number of tools | ea | 12 |
| External tool size | mm | 20x20 | |
| Indexing time (only rotate adjacent tool positions) | s | 0.11 | |
| Rotary tool motor power | kw | 3.7 | |
| Maximum speed of rotating tool | R/min | 6000 | |
| tailstock | Tailstock travel | mm | 580 |
| Thimble type | MT | MT#4 | |
| Dimensions | L x W x H | mm | 2880 x 1711 x 1921 |
| weight | kg | 3900 | |
| NC | FANUC 0i PLUS | ||
Standard machine setting
● Hydraulic chuck and cylinder
● Soft jaws
● Inspection switch for chuck clamping
● Standard tools holders ( tool holder and er tool)
● Hydraulic power unit
● Cutting fluid supply equipment
● Lubrication equipment
● Chip and cooling prevention cover steel
● Working light
● 3 colors status light (red/yellow/green)
● Foot switch
● Front door interlock device
● Safety warning nameplate
● Leveling bolts & horns
● Random tool box (including small tools for operation)
● Machine operating instructions and parts manuals
Optional items
● Chip conveyors
● Chip collectors
● Coolant pump
● Hard jaws
● Automatic power off
● Air guns
● Oil skimmer
● Additional tool holders and boring tool
● Automatic tool setter
● Automatic tool setter (electric)
● Claw cleaning and blowing device
● Claw cleaning water blowing device
● Automatic door
● Programmable tailstock
● Special chuck
