Guangzhou Sul Torno Machine Tools Company Limited

Pequena descrição:

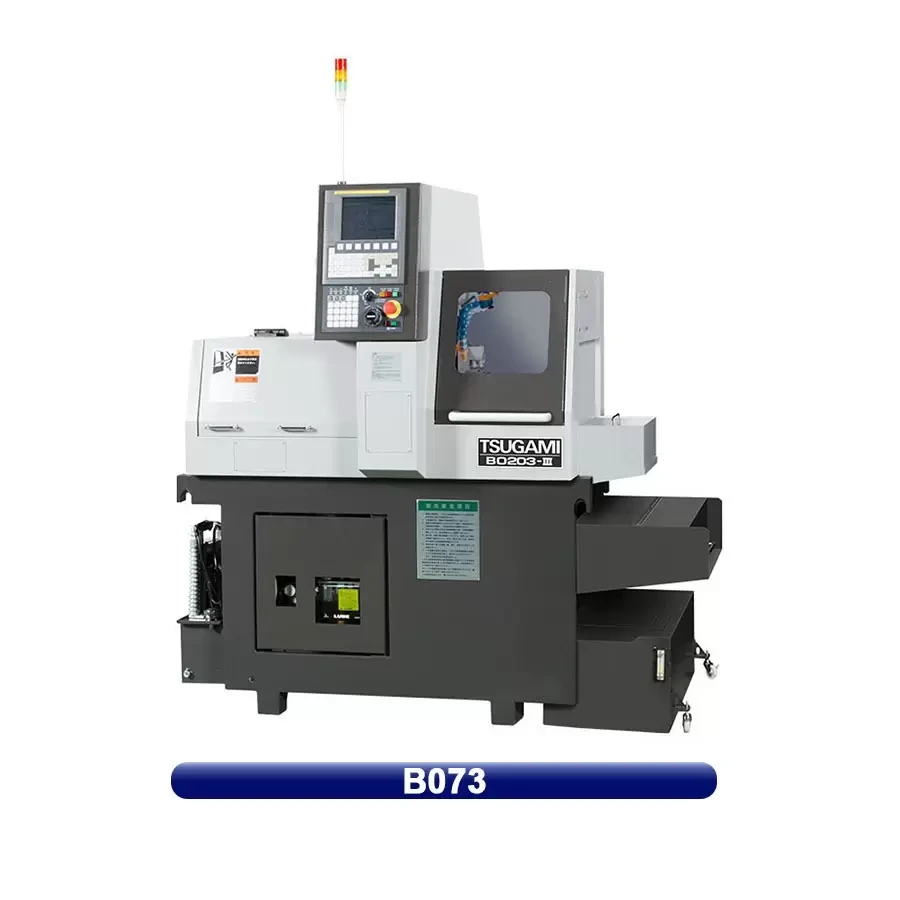

TSUGAMI B073 model swiss type cnc lathe machine

Wide selection of Swiss type turn lathes best suited to your application

Completed BO series line-up and corresponding from 7mm to 38mm

Enhanced variation and rich options cover diversified workpieces

Enviar e-mail para nós

Detalhes do produto

Etiquetas de produtos

desempenho principal

Working barstock diameter Ø1~Ø7 mm
machining length70mm(40milímetros: (carrier type rotary guide bushing)/70milímetros(Direct-drive rotary guide bushing)
Main spindle drillingdiameter Ø4mm
Main spindle tapping diameter M4 x 0.7mm
Onepiece casting base and slanting bed keep good stable machine performance

Basic machines provide maximum profits by the minimal investment

Ø7 m 3-axis control

Front & back simultaneous machining		—
Back spindle		—
Cross rotary tool		Option
Guide-bush-less kit		Option
Direct-drive guide bushing		Option
C-axis		Option
Cross rigid tap		Option
Number of tools
OD tool storage capacity		9
Cross-rotary		Option
Front	Fixed	4
	Rotary	—
Back	Fixed	—
	Rotary	—
Total tool storage capacity		13

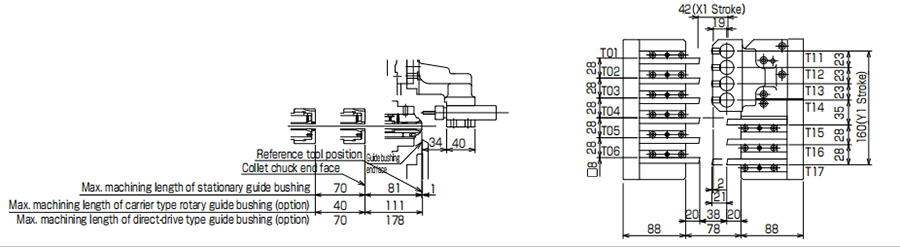

Tooling zone

Appearances

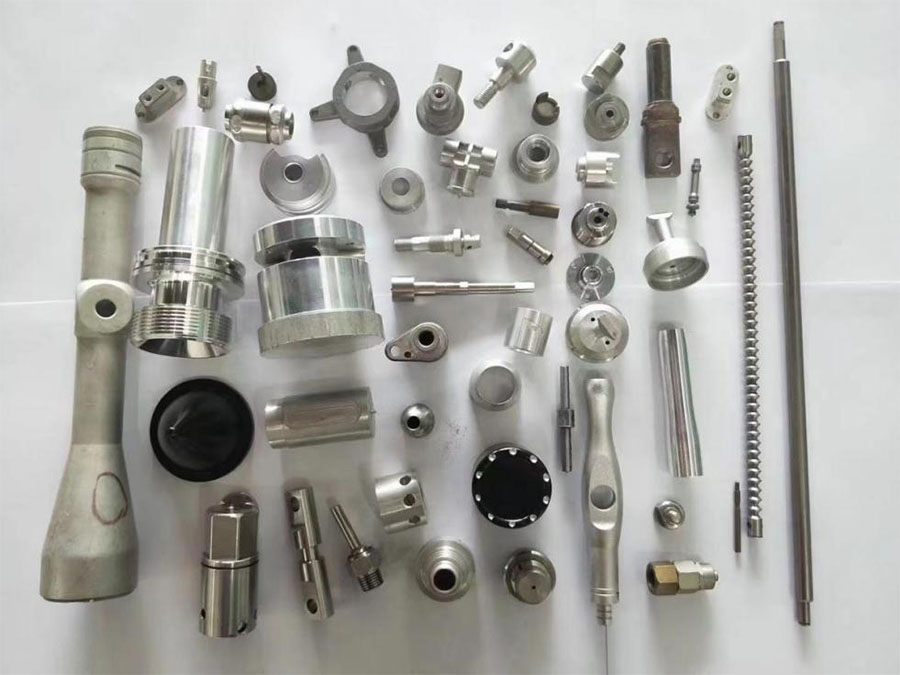

CNC machining parts

Collect chucks and guide bushing for Tsugami’s standard specification

		B073-III
Main spindle collect chuck		2601-1132
Back spindle collect chuck		—
Guide bushing	Carrier type	2601-1132
	Direct drive type	2621-1232

Selection of live tool (option)

					B073-III

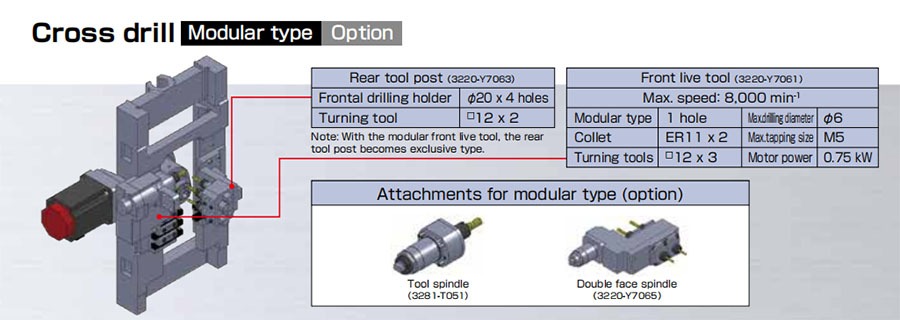

Cross drill		2 spindles parallel(Cross drill:2,Turning(Front):3,Turning(Rear):3,Frontal drilling holder:Ø20 x 4)			3270-Y030
		2 spindles shifted(Cross drill:2,Turning(Front):3,Turning(Rear):3,Frontal drilling holder:Ø20 x 4)			3270-Y040
		3 spindles (Cross drill:3,Turning(Front):2,Turning(Rear):3,Frontal drilling holder:Ø20 x 4)			3270-Y050
		4 spindles (Cross drill:4,Turning(Front):2,Turning(Rear):3,Frontal drilling holder:Ø20 x 4)			3270-Y060
Thread whirling head		Thread whirling head	(Turning(Front):2,Turning(Rear) :4,Frontal drilling holder:-)		—
		Cross: one spindle			—
Front live tool		Front live tools: 3 (Modular type:1)			3270-Y310
		Tool spindle		In conjunction with back live tools(3220-Y7060)	3281-T051
		Double face spindle			3220-Y7065
Back live tools		Live tool on back tool post(Modular type:2 holes)			—
		Double face spindle		In conjunction with back live tools(3220-Y7070)	—
		Back tool adapter			—
		Back cross tool spindle			—
Fixed tools		2 tools			—
Y2 axis tool post	Live tools	Front : 2/Cross : 2			—
	Fixed drill holders	4 tools			—

Especificação principal

Modelo		B073-III
Machine capacity, Machining range	Working bar stock diameter	Ø1~Ø7 mm
	Max. machining length	70milímetros(40 mm（Carrier type rotary guide bushing) / 70 milímetros (Direct-drive rotary guide bushing)
	Max. Main spindle drilling diameter	Ø4mm
	Max. Main spindle tapping diameter	M4 x 0.7mm
	Max. Back spindle chucking diameter	Ø7mm
	Max. Back spindle drilling diameter	—
	Max. Back spindle tapping diameter	—
	Max. Cross drilling diameter	Ø4mm
	Max. Cross tapping diameter	M4 x 0.7mm(Option)
	Max. Tool spindle slotting cutter dia.	Ø25mm(Option)
	Max. Back drilling diameter	—
	Max. Back tapping diameter	—
Machine ri	Main spindle speed	200-15,000 r / min
	Back spindle speed	—-
	Rotary guide bushing speed	200 to 8000 r/min carrier type / 200-12000 r/min direct drive
	Tool spindle speed	200 to 8000 r / min (option)*3 (rated speed 7000 r / min)
	Total tool storage capacity (Padrão / Max. : Option)	13
	Tool size	8 mm x 8 mm x 85 milímetros
	Rapid traverse rate	32 m / min ( X 1:24 m / min)
	Controlled axis ( linear axes )	3-axis
Motor speed conversion axi coll	Main spindle	1.1/1.5 KW
	Back spindle	—
	Axis	0.5 KW (X1, X2, Y1, Z1, Z2)
	Cross drill	0.75 KW (option)
	Coolant pump	0.18 KW
	Lubricating oil pump	3 W
Power supply and others	Peso líquido	1400 kgs
	Power source requirement	6 kVA
	Compressed air requirement	0.4 MPa or above
	Air discharge rate	50 NL/min
	Coolant tank capacity	115 eu

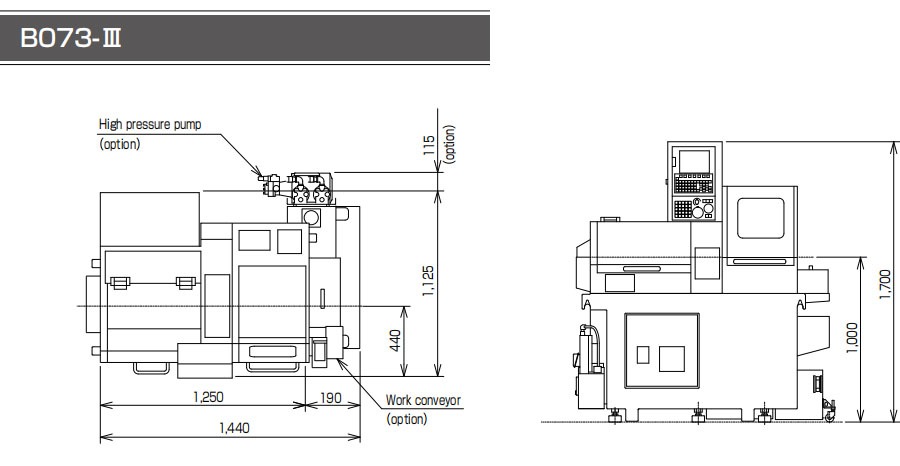

	Width x depth x height	1440 x 1125 x 1700

NC specifications

item	B073-III
NC unit	FANUC 0i Mate-TD*1

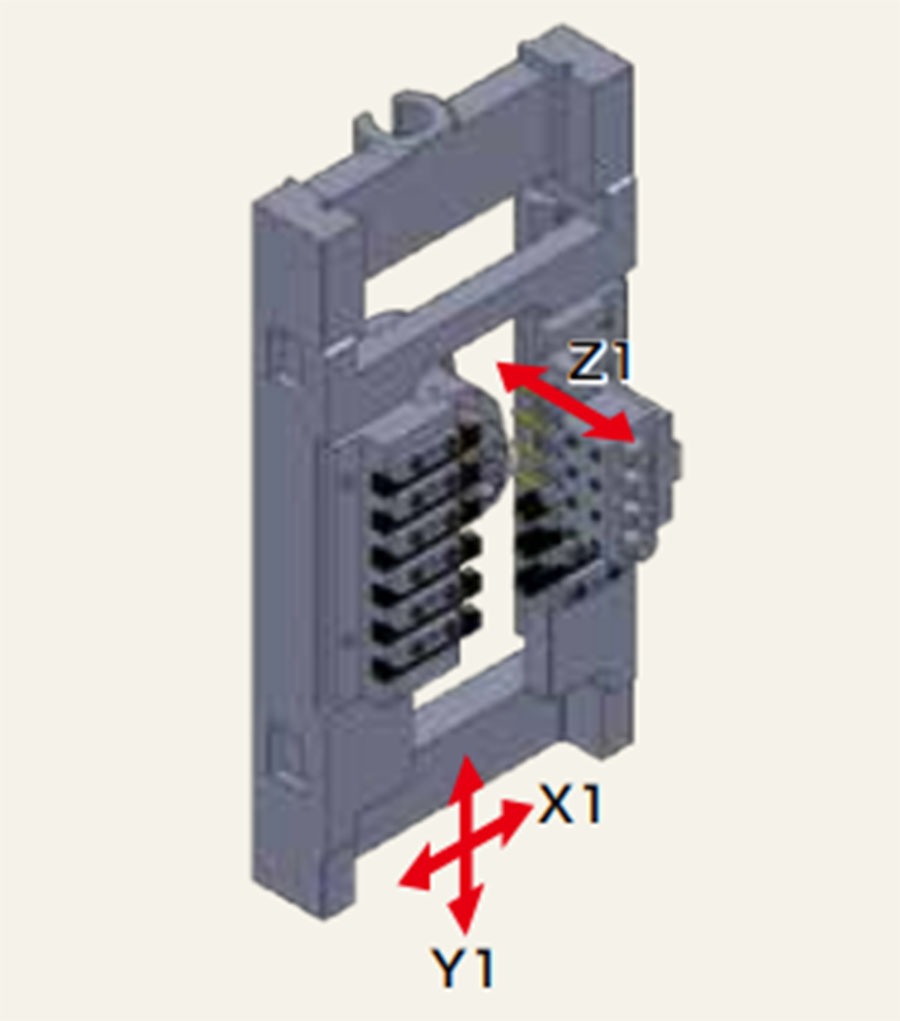

Controlled axes	X1, Z1, Y1
Least input increment	0.001 milímetros (X in diameter) (B073-III:0.0001milímetros)
Least command increment	X: 0.0005 milímetros, other axes: 0.001 milímetros(B073-III:0.00005MM,other axes:0.0001milímetros)
Maximum programmable value	±8 digits
Interpolation method	Linear , circular
Feed rate	1 to 6,000 mm / min
Feed rate override	0 to 150 % in 10% increments
Dwell	G04 0 to 99999.99
ABS / INC command	X,Y,com : absolute , U, V , W : Incremental
Tool offset pairs	Principal : 64, Especificação principal KX36（KX-36L） 64 ( BO073-III, BO123-III, BO203-III main only)
LCD / MDI	8.4 inches color LCD
Display language	Japanese / English
Part program storage size	512 k byte ( equivalent to 1280 m tape length )
Registerable programs	400
Miscellaneous function	M5-digits
Spindle function	S5-digits
Tool function	T4-digits

Acessórios padrão

item	B073-III
Automatic programming system	○
Tool height compensation	○
Tool life counter	○
Periodic maintenance screen	○
Main spindle adapter	○
Back spindle adapter	ー
Guide bushing adapter	ー（B073-Ⅲ： standard）
Door interlock	○
Coolant level detector	○
Spindle cooling unit	○
Standard tools	○
Transit clamps	○
4-hole drill bracket	○
Retractable coolant nozzle	○
Automatic power shut off	○
Front tool post: 4-spindle cross drill	ー
Deep hole drill holder（ φ25mm×2)	ー
Automatic cut-off function/Automatic facing function	○
Main spindle/back spindle air purge	ー
Cross drill air purge	ー
Main spindle brake	ー
C-axis control for main/back spindles	ー
Drill holder (Single head)	○（4）
Double heads drill holder（Adjustable drill holder）	ー
Illumination light	○

NC standard accessories

Especificação principal KX36（KX-36L）	B073-III
Chasing function	○
Continuous thread cutting	○
Manual pulse generator	○
Memory card input/output interface	○
Back ground editing	○
Run time & parts number display	○
Custom macro	○
Constant surface speed control	○
Spindle synchronous control (rotation/phase/tracing)	ー
Tool geometry/wear off set	○
Programmable data input	○
Chamfering & corner R	○
Tool nose radius compensation	○
ＨＲＶ control	○
Multiple repetitive cycle	○
Extended program editing	○
Canned drilling cycle	○
Rigid tap (Main spindle, back spindle)	○＊
Spindle speed fluctuation detection	○
Cut-off detection (Speed Differential type)	ー
Manual handle retrace function	ー
Stored stroke check 2,3	ー
Part program storage size	512Kbyte
Registerable programs	400

Options

Não.	Especificação principal KX36（KX-36L）		B073-III
Guide busing	Stationary guide bushing		standard
	Carrier type rotary guide bushing		○
	Direct-drive guide bushing		○＊6
	Guide-bushing-less kit		ー
Advanced function system	Main spindle C axis control		○
	Back spindle C axis control (Brake is optional)		○＊7
	Spindle 1° index		○
	Spindle 15° index		○
	Main spindle brake		○
	Back spindle 15° index		○＊1
	Back spindle 1° index		○＊1
	Back spindle brake		○＊1
	Live tool beside the back spindle		ー
	Cross drill（Modular type:1）		ー
	2-spindle cross drill		ー
	3-spindle cross drill		○
	4-spindle cross drill		○
High precision system	0.1 μm resolution		standard
	Coolant oil temperature controller		○
	X2-axis touch switch		○＊3
Live tools (Rear tool post)	Rear drive		ー
	Tool spindle		ー
	Double face spindle		ー
	Angular drilling head		ー
	Thread whirling head		ー
	Hobbing head		ー
Live tools (Back tool post)	Back drive		○＊3
	Tool spindle		○＊3
	Back cross tool spindle		○＊3
	Back tool adapter		○＊3
Coolant related	Mist collector		○
	High pressure pump unit		○
	M code oil blow		○
	WAVY coolant nozzle		○
Workpiece discharge system	Work catcher		standard
	Work conveyor		○＊3
	Front discharge		○＊1
	Rear discharge		○＊1
Chip disposal	Chip conveyor		○＊1
Machine maintenance and monitoring functions	Cut-off detection (Touch switch type)		○
	Signal indicator		○
Tooling related	Adapter for non-round bar (main spindle)		○
	Adapter for non-round bar (back spindle)		○＊1
	Collect chuck with carbide lining		○
	Tool set gauge		○
	Spindle liner		○
	Drill holder		standard
NC functions	Part program storage size 128 kbytes		ー
	Part program storage size 256 kbytes		ー
	Part program storage size 512 kbytes		ー
	Part program storage size 1 Mbyte		ー
	Number of registerabele programs expansion #1	Storage size 64 kbyte (Registerable programs: 120)	ー
		Storage size 128 kbyte (Registerable programs: 250)	ー
		Storage size 256 kbyte (Registerable programs: 500)	ー
		Storage size 512 kbyte (Registerable programs: 1000)	ー
	Direct drawing dimension program		standard
	Variable-lead thread cutting		standard
	Thread cutting cycle retract		standard
	Polar coordinate interpolation		standard＊5
	Cylindrical interpolation		standard＊5
	Display language		○
Safety and other	Coolant flow switch		○
	Automatic fire extinguisher		○
	Illumination lamp		standard
	Bar feeder interface		○
	Manual handle retrace function		○＊6
	Live tool rigid tapping		○
	RS232C input/output interface		○
	Inch/metric conversion		○
	Abnormal load detection		○
	Correspondence for water soluble coolant		ー

data Technical:

1.	Manual de instruções de operação	1 conjunto
2.	Especificação do apêndice do sistema	1 conjunto
3.	Relatório de teste de qualidade	1 conjunto
4.	Lista de embalagem	1 conjunto
